Day-Brite 2x2 LED Flat Panel Light - Selectable Wattage - Selectable CCT - Up To 3,982 Lumens - 19W / 29W / 34W - 3500K / 4000K / 5000K
Part Number:
190096193110
Manufacturer Part Number:
2SBP2035L8DS-2-UNV-DIM, 912401592649
$59.99
ea.
Was
In Stock
Features
- Selectable CCT and wattage
- Equivalent to three 17W T8 tubes
- Easy to clean diffuser provides visual comfort
- 0-10V dimming to 5%
Related Products
Overview

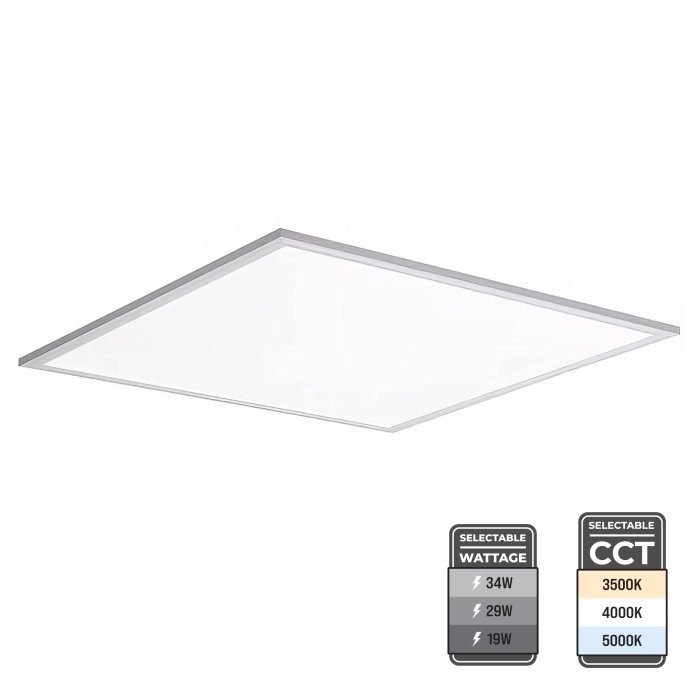

The Day-Brite 2x2 LED Flat Panel Light is designed to be an upgrade equivalent to three 17W T8 tubes. The extruded aluminum frame and durable steel driver housing make it a versatile fixture for use in recessed and surface mounting, or in a T-grid drop ceiling. CCT (3500K, 4000K, 5000K) and wattage (19W, 29W, 34W) selection is made easy with the switches found on the top of the fixture. The LED flat panel light uses 0-10V dimming to dim down to 5%, making it energy-efficient and ideal for upgrading office, school, or hospital lighting.
Product Details:
- Extruded aluminum frame
- Integrated clips for T-grid installation
- 120-277 VAC
- UL Listed
- DLC 5.1 Standard
- 5-year warranty
Documents
Day-Brite Selectable LED Panel Installation Instructions Applications:
- Commercial Buildings
- Educational Facilities
- Hospitals
- Offices
- Panel Lights
- Retail Shops
- Schools
- Trade Shows
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
| Brand | Day-Brite CFI |
|
CCT
CCT
|
3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC, UL Listed (cULus) |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
175/265/310 mA @ 120 VAC, 75/115/135 mA @ 277 VAC |
| Dimensions | 2ft x 2ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 130 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 17W T8 Tubes |
| Finish | White |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 67000 Hours |
| Lumens | 2320 Lumens, 3480 Lumens, 3980 Lumens |
| Manufacturer Part Number | 2SBP2035L8DS-2-UNV-DIM, 912401592649 |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Weight | 2.4 lb (1.1 kg) |
| UL File Number | E357443 |
| Warranty | 5 Year |
| Wattage | 19 Watts, 29 Watts, 34 Watts |
