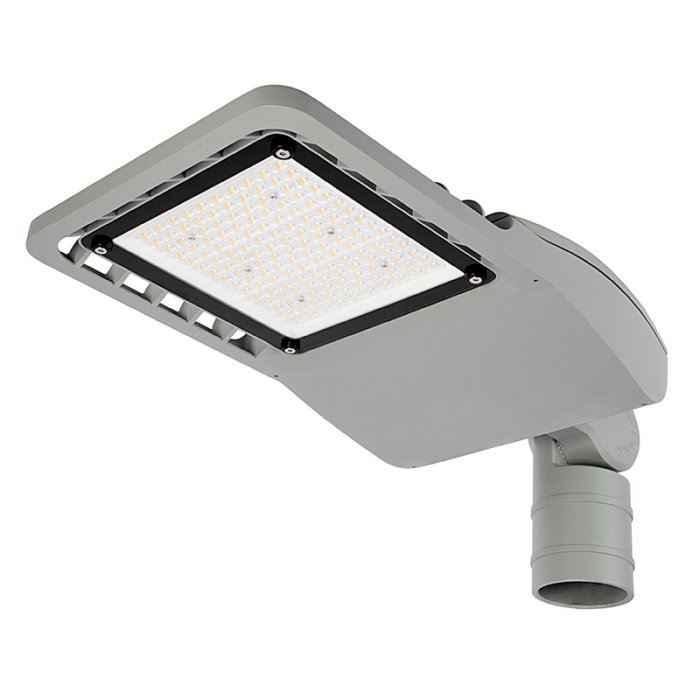

120W LED Street/Roadway Area Light - 16,800 Lumens - Optional Photocell Sensor - 250W MH Equivalent - 3000K/4000K - Knuckle Slipfitter Mount

120W LED Street Light - 16,250 Lumens - Knuckle Slipfitter Mount - 250W MH Equivalent - 3000K / 4000K - Optional Photocell

Name: 120W LED Street Light - 16,250 Lumens - Knuckle Slipfitter Mount - 250W MH Equivalent - 3000K / 4000K - Optional Photocell
Brand: Super Bright LEDs
SKU: RWLA-xK120AT2-GRSF-x
Price: 153.88 USD
Availability: InStock
Rating: 5 (2 reviews)

Part Number

RWLA-xK120AT2-GRSF-x

Features

Type II beam distribution for roadways and walkways
Tool-less aluminum housing with glass lens
Knuckle slipfitter mount adjustable in 15° increments
250 metal-halide equivalency
IP65 waterproof rating for all-weather conditions

View more details

Free Shipping

On orders $30 and up within the contiguous U.S.
Read More

Item does not qualify

Add to Wish List

Skip to the end of the images gallery

11 photos

Skip to the beginning of the images gallery

Overview

Description

The 120W LED Street Light, equivalent to a 250W metal-halide fixture, delivers 16,250 lumens in a Type II distribution pattern. The Type II distribution directs light at a wide angle with some forward throw. This energy-efficient light has a nonyellowing glass lens and tool-less construction for easy access to internal elements. The dusk-to-dawn photocell offers automatic operation and a shorting cap to bypass the sensor. The included knuckle slipfitter mount is adjustable in 15° increments and attaches to a 2.5” pole. Alternative pole mount (sold separately), available for round or square options.

Product Details:

Die-cast aluminum housing with heavy-duty glass lens
Type II beam distribution for roadways and walkways
1 - 10V Dimming
Knuckle slipfitter mount adjustable in 15° increments
Alternative mount available for round or square pole/post (sold separately)
100-277 VAC
IP65 waterproof rating
Certified by UL
5-year warranty

Applications

Expressways and Highways
Intersections
Off-Ramps
Parking Lots
Residential Roads
Roadways
Street Lights
Urban Streets

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More

This product has been certified by Underwriter Laboratories to their engineering and safety standards.

Similar RWLA Street Lights

	Color Options	Comparable Wattage	Current Draw	Lumen	Power Consumption	Price
RWLA-xK30AT2-GRSF-x	Natural 4000K Warm 3000K	100 Watt Metal-Halide	250 mA	4100 Lumens	30 Watts	$102.88 - $106.88 ea.
RWLA-xK60AT2-GRSF-x	Natural 4000K	175 Watt Metal-Halide	500 mA	8800 Lumens	60 Watts	$117.88 - $121.88 ea.
RWLA-xK90AT2-GRSF-x	Warm 3000K	250 Watt Metal-Halide	750 mA	12500 Lumens	90 Watts	$141.88 - $145.88 ea.

Try it now

Use as a guide only—values are based on our own in-house testing. Contact us for additional information or to discuss your lighting needs.

Specifications

Beam Angle	150° x 70°
Comparable Wattage	250 Watt Metal-Halide
CRI	70+
Current Draw	1.1 A
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	1-10V
Efficacy	135 lm/W
Finish	Gray
IP Rating	IP65
LED Lifetime	50000 Hours
Lens Type	Glass
Light Distribution	Type II-M
Lumen	16250 Lumens
Material	Aluminum Housing, Glass Lens
Mount Type	Knuckle Slipfitter Mount
Operating Temperature	-40~+50 °C (-40~+122 °F)
Power Consumption	120 Watts
Voltage	100-277 VAC
Warranty	5 Year

Print Specifications

Part NO	CCT Value CCT Value	LED Color	Photocell Options Photocell Options What is a Photocell and How Does It Work? When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically. Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed? Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type. Shorting Cap Photocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized. DIP Switch or Slide Switch While DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts. Disconnect the Wiring Some photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch.	Standards And Certifications Standards And Certifications Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.
RWLA-30K120AT2-GRSF-JL-203C	3000K	Warm 3000K	Includes Photocell	Certified by UL
RWLA-30K120AT2-GRSF-JL-208	3000K	Warm 3000K	Includes Shorting Cap	Certified by UL
RWLA-40K120AT2-GRSF-JL-203C	4000K	Natural 4000K	Includes Photocell	Certified by UL, DLC Premium
RWLA-40K120AT2-GRSF-JL-208	4000K	Natural 4000K	Includes Shorting Cap	Certified by UL, DLC Premium
