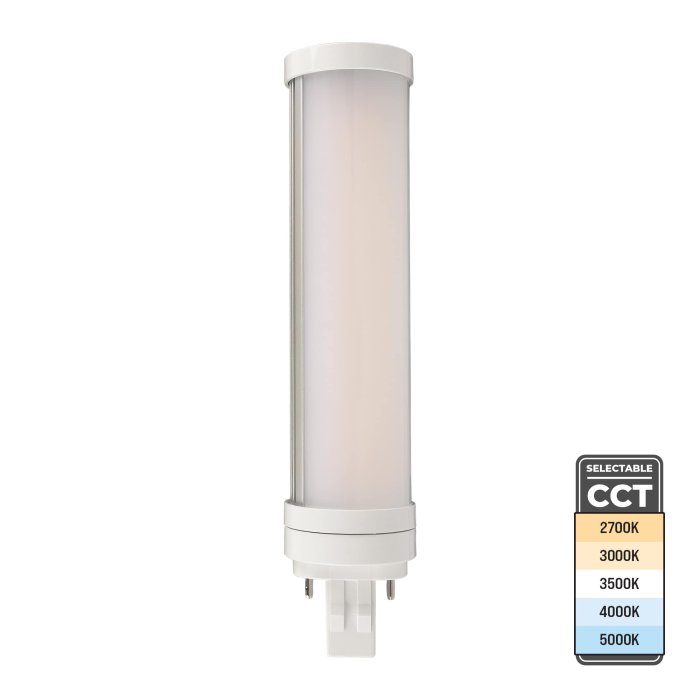

MaxLite LED PL Retrofit Lamp - 11W - GX23 2-Pin Base - Selectable CCT - Type B Ballast Bypass - 18W PL Fluorescent Equivalent - Up to 1,500 Lumens - 2700K / 3000K / 3500K / 4000K / 5000K
Part Number:
11PLGX23CS
Manufacturer Part Number:
$15.99
ea. (per Bulb)
Was
In Stock
Features
- Type B ballast bypass design reduces energy use and maintenance costs
- Selectable CCT
- 18W PL fluorescent equivalent
Overview
Designed with a CCT Selectable feature that goes from warm to cool white light according to preference, LED PL Lamps are the versatile, energy-saving replacement for 13- and 18Watt compact fluorescent bulbs (CFL). The lamp has a GX23 base to easily retrofit into recessed cans, sconces, and ceiling luminaires, including enclosed fixtures. A simple ballast bypass ensures maintenance-free operation of 50,000 hours or longer, providing long-term performance reliability and cost savings.
Product Details:
- Aluminum Housing, Polycarbonate Lens
- Suitable for damp locations
- 120° beam
- 120-277 VAC
- UL Listed
- 5-year warranty
Documents
11PLGX23CS Specification Sheet
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20~+40 °C (-4~+104 °F) |
|---|---|
| Ballast Compatibility | Type B (Ballast Bypass) |
| Base Type | GX23 |
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| Brand | MaxLite |
| Bulb Type | PL |
|
CRI
CRI
|
80+ |
| Current Draw | 100 mA @ 120 VAC, 40 mA @ 277 VAC |
| Dimmable | No |
| Efficacy | 136 lm/W |
| Enclosed Fixture Rated | Yes |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 18 W PL Fluorescent Bulb |
| Finish | White |
| LED Lifetime | 50000 Hours |
| LED Color | Selectable CCT |
| Lens Color | Frosted |
| Lumens | 1500 Lumens |
| Operating Voltage | 120-277 VAC |
| Product Material | Aluminum Housing, Polycarbonate Lens |
| Reference Number | GX23 |
| Standards And Certifications | UL Listed |
| Warranty | 5 Year |
| Wattage | 11 Watts |
