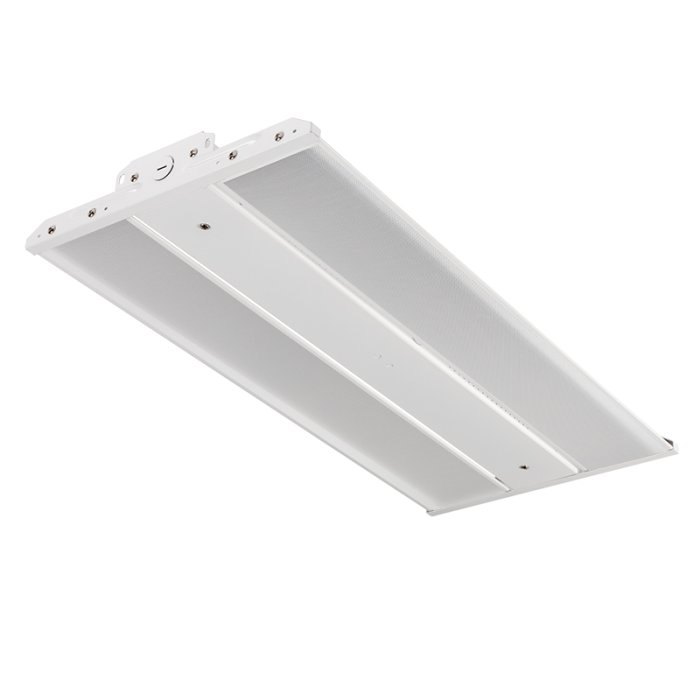

Name: 110W Linear High Bay - Dimmable - 15400 Lumens - 2' - 320W MH Equivalent - 5000K - Cool White
Brand: Super Bright LEDs
SKU: LHBDS1-50K110ML-P2WH2
Price: 67.99 USD
Availability: InStock

Overview

LHBDS1 series Linear High Bay replaces fluorescent fixtures with a less bulky frame and better energy efficiency. The economical LED solution achieves higher efficacy with a housing that is more compact and lighter weight than traditional high bays. Prismatic anti-glare lens creates a wide beam distribution with optimal lumen output for industrial and commercial high ceiling application.

2 options available in 3ft: 220W and 300W
See our brightest Linear High Bay option available in 500W.

Product Details:

Lightweight white metal housing
Frosted PMMA lens for smooth light diffusion
Includes hanging kit for suspension mount
Optional white bracket for pendant or surface mounting
Optional wire guard for additional protection from impact
1-10V dimmable
Operational temperature: -40° -- 122° F (-40° -- 50° C)
100° beam pattern
5000K
Pigtail wire connection
Suitable for damp locations
Rated IP20
DLC 5.1 Premium, Certified by UL
50000 hours (L70) lifespan

This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.

This product has been certified by Underwriter Laboratories to their engineering and safety standards.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Big Box Retailers
Distribution Centers
Manufacturing Plants
Packaging Facilities
Warehouses
Factories
Shops
Gymnasiums

Specifications

Beam Angle	100°
CCT Value	5000K
Comparable Wattage	320 Watt Metal-Halide
CRI	80+
Current Draw	917 mA @ 120 VAC, 397 mA @ 277 VAC
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	1-10V
Efficacy	140 lm/W
Environmental Rating	Non-weatherproof, Suitable for Damp Locations
Finish	White
IP Rating	IP20
Color Options	Cool 5000K
LED Lifetime	50000 Hours
Length	24in (2ft)
Lens Type	Frosted, Prismatic
Lumen	15400 Lumen
Material	PMMA Lens, Steel Body
Microwave Motion Sensor	Optional
Operating Temperature	-40~+50 °C (-40~+122 °F)
Power Consumption	110 Watts
Power Factor	≥0.9
Standards And Certifications Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	Certified by UL, DLC Premium
UL File Number	E366643
Voltage	120-277 VAC

Print Specifications

Accessories & Power Supplies

All Accessories

Mounting

Surge Protectors

Installation Supplies

Motion Sensors

Emergency Drivers

Accessories Links

Accessory Category

Accessory Type:

$6.99 ea.

Pendant Mounting Bracket for 2' LHBDS1 LED Linear High Bay - LHBDS1-C1 Part Number: LHBDS1-C1
In stock

LHBDS1 series Mounting Bracket has dual-purpose mounting methods, compatible with all 2ft LHBDS1 series Linear High Bay Light. For pendant mount, attach to designated points on the back center of the fixture and mount with solid threaded conduit. Or, surface mount to hard ceilings. Steel construction and powder coat ensure durability and rust resistance. Includes hardware for reliable and easy installation.

$8.99 ea.

LED Surge Protector - 5kA Max Capacity - 120-277 VAC - QR-SPD07-10 Part Number: QR-SPD07-10
In stock

In the event of a voltage surge or electrical failure, LED Surge Protector is an added defense for indoor or outdoor LED fixtures. Take advantage of the already safe, long lifespan of LEDs with this additional accessory. It provides a nominal discharge current of 5kA, and a maximum discharge current of 10kA for 120-277V drivers.

$7.99 ea.

Power Cord for Power Supplies - Power Cord for Power Supplies Part Number: _POWERCORD
In stock

Standard grounded power cord for plugging power supplies into standard 115VAC receptacle. 18 gauge, SJT type 3 conductor, 6 foot length.
$0.39 per Foot

22 Gauge Wire - Two Conductor Power Wire - 22 AWG Part Number: WP22-2
In stock

Power Wire for low voltage installations. Parallel bonded two conductor 22 gauge stranded wire. Price per foot.
$0.59 per Foot

SJT Cable - Black Jacketed 18 Gauge Three Conductor Power Wire - 18 AWG Power Wire Part Number: WP18-35J
In stock

Parallel bonded three conductor 18 gauge 3x18 stranded power wire for installations. This standard SJT cable is ideal for high voltage applications. Price per foot.
$5.99 ea.

515PV Straight Blade Plug - 515PV Part Number: 515PV
In stock

This 3-prong straight blade plug (515PV) is ideal for creating a grounded plug-in option for lights that use 18-AWG to 12-AWG wire. The 15-amp (max), 125-volt (max) plug is constructed of durable PVC, and its backwire clamps are designed to fit tightly around 3-conductor stripped wire.
$0.04 ea.

18-16 AWG Orange Twist-On Wire Connector Part Number: WN-O1816
In stock

Use these 18-16 AWG orange wire connectors for closed-end connections and secure splices. The twist-on wire connectors tighten with out ratcheting and feature a deep skirt to prevent bare wire from being exposed. These wire connectors can be removed and reused.
$0.04 ea.

18-16 AWG Blue Twist-On Wire Connector Part Number: WN-B1816
In stock

Use these 18-16 AWG blue wire connectors for closed-end connections and secure splices. The twist-on wire connectors tighten with out ratcheting and feature a deep skirt to prevent bare wire from being exposed. These wire connectors can be removed and reused.

$28.99 ea.

PIR Motion Sensor - Fixture Mount - 360° Detection - 120-277 VAC Part Number: BRI819P-B-O
In stock

BRI819 series Motion Sensor turns lights ON/OFF based on occupancy detection. Mount to a high bay to control a single light, or mount to a central junction box to control multiple lights from one sensor. Maximize efficiency, lower energy costs, and reduce maintenance in commercial and industrial locations with passive infrared occupancy sensor. Suitable for use in high bay areas such as distribution centers and manufacturing areas.
$34.99 ea.

Merrytek Microwave Occupancy Sensor - Remote Controlled - 120-277 VAC Part Number: MC054V RC2 D-x
In stock

Merrytek Microwave Occupancy Sensor provides hands-free and efficient operation of light fixtures. Highly configurable, the motion sensor includes customizable control options including detection range, daylight threshold, dimming level, and standby period. Mount to any 1-10V dimmable fixture in a standard ½" knockout. The remote can be used to access control features, as well as be paired with multiple sensors to control several light fixtures.
$37.99 ea.

0-10V PIR Motion Sensor - Fixture Mount - 360° Detection - 120-277 VAC Part Number: BRI819P-B-D
In stock

BRI819 series Motion Sensor dims and turns lights ON/OFF based on occupancy detection. Mount to a high bay to control a single light, or mount to a central junction box to control multiple lights from one sensor. Maximize efficiency, lower energy costs, and reduce maintenance in commercial and industrial locations with passive infrared occupancy sensor. Suitable for use in high bay areas such as distribution centers and manufacturing areas.

$149.99 ea.

Emergency Battery Backup Inverter - 40W - 100-347V Input - 170 VDC Output Part Number: EMA40FY-170
In stock

The internal lithium-ion battery provides backup light for a minimum of 90 minutes and powers fixtures up to 300W. The UL 924 Listed certification and an included test switch/charge indicator.
