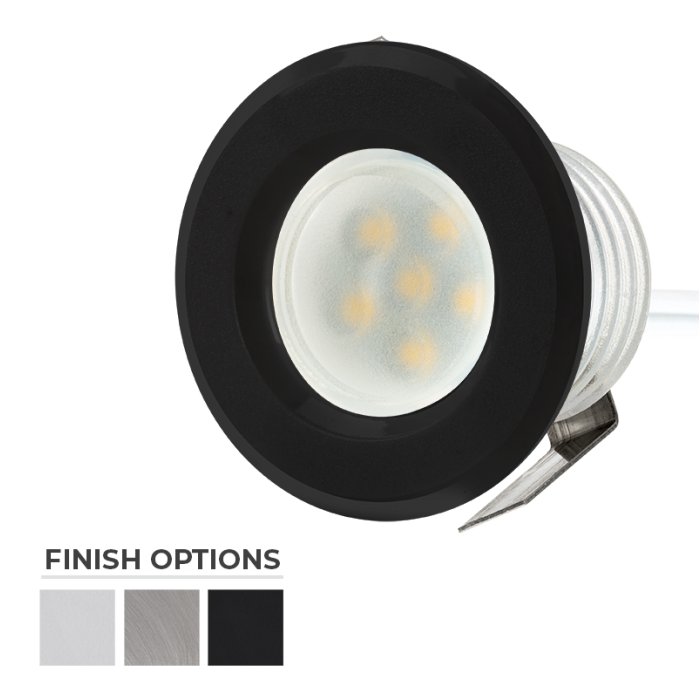

0.25W Mini Round Recessed LED Lights - Plastic Trim - 3000K / 4500K
Part Number:
MRLF-6xW-RP
Manufacturer Part Number:
Starting at
$8.99
ea.
Starting at
Was
Related Products
Overview
Mini round recessed LED lights are ideal for deck or step lighting, and you can use them in other outdoor lighting applications, such as pathway lighting. The 6 LEDs have an output of 25 lumens with a 90-degree beam angle for accent lighting and ambient lighting. This low-voltage step light has a 12V AC/DC operation for wiring directly into your existing landscape lighting system. A waterproof polycarbonate housing and shatterproof acrylic lens seal all internal components. Flush mounts in a 1.38" hole using mounted retention clips. Available with a black, white, or brushed nickel finish plastic trim to match your designs. See similar single LED round plastic trim mini step lights.
Product Details:
- Polycarbonate housing with plastic trim
- Acrylic lens
- IP67 waterproof rating
- 45-degree beam angle
- Retention clip mounting
- 12V AC/DC
- ETL Listed
Applications:
- Accent Lighting
- Bars
- Closets
- Hallways
- Recessed Lighting
- Safety Lighting
- Shelf Lighting
- Stairways
- Under-Cabinets
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
90° |
| Brand | Super Bright LEDs |
| Certifications/Compliance | ETL Listed |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
20 mA |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 5 Watt Incandescent |
| Input Connection Type | Pigtail |
| Input Voltage | 12V AC/DC |
|
IP Rating
IP Rating
|
IP67 |
| Lens Color | Frosted |
| Lumens | 25 Lumens |
| Mount Type | Recessed |
| Product Materials | Polycarbonate |
| Warranty | 3 Year |
| Wattage | 0.25 Watts |
| Wire Gauge | 20 AWG |
| Wire Length | 11 in. |
| Part NO | Color Temperature | Finish | LED Color |
|---|---|---|---|
| MRLF-6NW-RTB | 4500K | Black | Natural 4500K |
| MRLF-6NW-RTB-6PK | 4500K | Black | Natural 4500K |
| MRLF-6NW-RTN | 4500K | Silver | Natural 4500K |
| MRLF-6NW-RTN-6PK | 4500K | Silver | Natural 4500K |
| MRLF-6NW-RTW | 4500K | White | Natural 4500K |
| MRLF-6NW-RTW-6PK | 4500K | White | Natural 4500K |
| MRLF-6WW-RTB | 3000K | Black | Warm 3000K |
| MRLF-6WW-RTB-6PK | 3000K | Black | Warm 3000K |
| MRLF-6WW-RTN | 3000K | Silver | Warm 3000K |
| MRLF-6WW-RTN-6PK | 3000K | Silver | Warm 3000K |
| MRLF-6WW-RTW | 3000K | White | Warm 3000K |
| MRLF-6WW-RTW-6PK | 3000K | White | Warm 3000K |
