Name: 24V LED Light Sheet - 18.9" x 9.5" - White - IP20 - 2700K / 3000K / 3500K / 4000K / 5000K / 6500K
Brand: Super Bright LEDs
SKU: LLS-AxK80-C1A-30A01-24V
Price: 64.99 USD
Availability: InStock
Rating: 3.8 (9 reviews)

Overview

Description

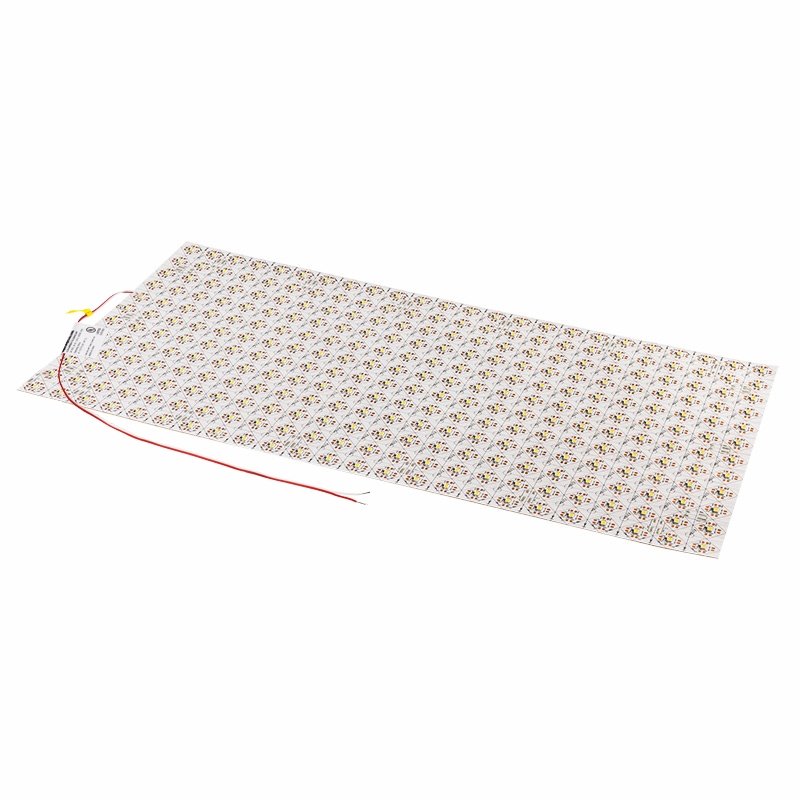

Trim to fit a unique shape and wrap corners with LLS series LED Light Sheet. This flexible sheet contains 24 x 12 rows that can be segmented in any shape simply by cutting along the horizontal, vertical, or diagonal black lines. A high density of LED chips ensures even light distribution, even in signs or backlighting with low clearance. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:

Dimmable
Max Run with Class 2 wiring: 3 sheets
Dimensions: 18.9" x 9.45"
Enclosed fixture rated 30 mm
IP20 rated for dry conditions
50000 hours L70 lifespan
24 VDC
UL Listed
5-year warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Backlighting
Displays
Office Lighting
Sign Lighting
Light Box Lighting
Accent Lighting
Retail
Channel Letters
Commercial Lighting

Specifications

Ambient Operating Temperature	-20~+45 °C (-4~+113 °F)
Certifications/Compliance	CE, UL Listed
CRI	80+
Current Draw Current Draw is used to size fuses and wire for an electrical circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	1.3 A
Dimensions	18.9in x 9.5in
Dimmable	Yes
Efficacy	92 lm/W
Environmental Rating Learn more about environmental rating	Non-weatherproof
Finish	White
LED Beam Angle Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.	120°
LED Type	2835 SMD
LEDs per Segment	1
Max Run (Class 2) The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.	3 Sheets
Operating Voltage	24 VDC
Power Consumption	30 Watts
Rated Life (L70)	50000 Hours
Segment Size	0.79 in. x 0.79 in. (20 mm x 20 mm)

Print Specifications

Part NO	CCT Value CCT Value	Color Temperature Color Temperature Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.
LLS-A27K80-C1A-30A01-24V	2700K	Warm 2700K
LLS-A30K80-C1A-30A01-24V	3000K	Warm 3000K
LLS-A35K80-C1A-30A01-24V	3500K	Warm 3500K
LLS-A40K80-C1A-30A01-24V	4000K	Natural 4000K
LLS-A50K80-C1A-30A01-24V	5000K	Cool 5000K
LLS-A65K80-C1A-30A01-24V	6500K	Cool 6500K
