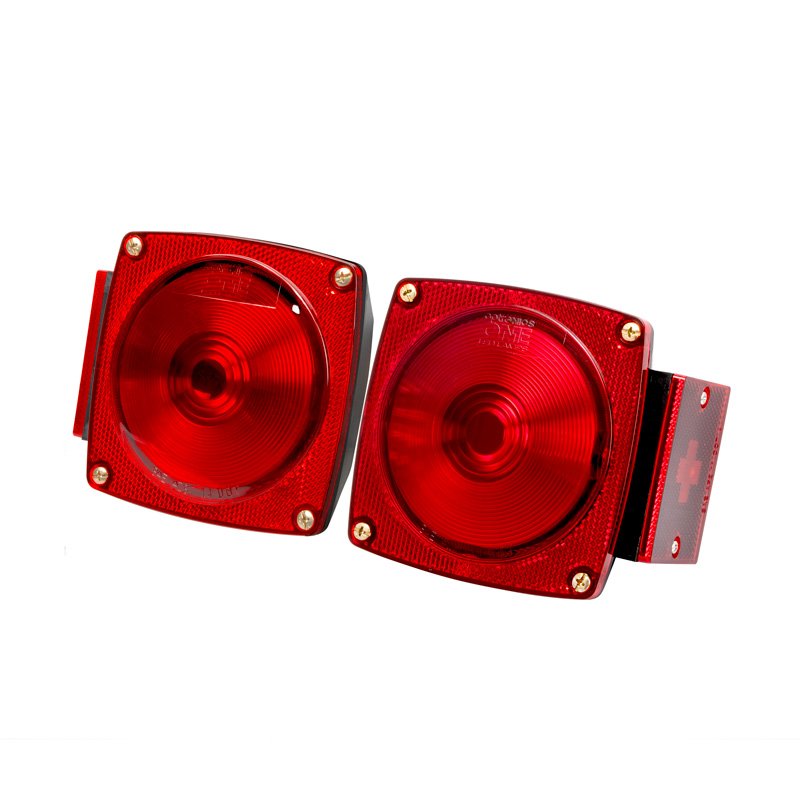

Optronics ONE LED Trailer Tail Light - 6 / 7 Function - Submersible - Square - 1 LED - Passenger Side / Driver Side

Optronics ONE LED Trailer Tail Light - 6 / 7 Function - Submersible - Square - 1 LED - Passenger Side / Driver Side

Part Number
STL00xRBP

Features

  • Universal mount
  • Stud mount on 2" centers
  • IP67 waterproof rating
  • Lifetime warranty
View more details
In Stock

Starting at $18.99 ea.
Add to Wish List Compare

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

main product photo
6 photos
Customers Also Viewed
  1. Square LED Truck and Trailer Lights Combo Box with License Plate Lights - 4-1/2" Stop / Turn / Tail Lights - Universal Stud Mount - 17 LEDs
    Square LED Truck and Trailer Lights Combo Box with License Plate Lights - 4-1/2" Stop / Turn / Tail Lights - Universal Stud Mount - 17 LEDs
    $49.99 per Pair
  2. Optronics Fusion LED Combination Tail Light Bar for Trailers Over 80" Wide - Submersible - Red and Clear Lens
    Optronics Fusion LED Combination Tail Light Bar for Trailers Over 80" Wide - Submersible - Red and Clear Lens
    $35.99 ea.
  3. LED Rear Combination Lamps - Truck Stop/Turn/Tail/Reverse Lights with Configurable Light Heads - Pigtail Connector - Stud Mount - CTL-ARW
    LED Rear Combination Lamps - Truck Stop/Turn/Tail/Reverse Lights with Configurable Light Heads - Pigtail Connector - Stud Mount - CTL-ARW
    $79.99 per Pair
  4. Corrugated Split Loom
    Corrugated Split Loom

    $0.19 ea.
  5. Pulsing Strobe Module - Pulsing Strobe Module
    Pulsing Strobe Module - Pulsing Strobe Module
    $5.99 ea.
  6. Pre-Wired 5mm LED - 12VDC - Blue
    Pre-Wired 5mm LED - 12VDC - Blue

    $1.99 ea.

  7. Optronics LED Trailer Tail Light - Stop / Turn / Tail - Submersible - 6 LEDs - Oval - Red
    Optronics LED Trailer Tail Light - Stop / Turn / Tail - Submersible - 6 LEDs - Oval - Red
    $10.99 ea.
  8. Optronics Streamline LED Trailer Tail Light - Stop - Turn - Tail - Submersible - 11 LEDs - Red
    Optronics Streamline LED Trailer Tail Light - Stop - Turn - Tail - Submersible - 11 LEDs - Red
    $18.99 ea.
  9. Peterson Mini LED Clearance or Side Marker Light - Submersible - 1 LED - 3/4" Round - Red / Amber
    Peterson Mini LED Clearance or Side Marker Light - Submersible - 1 LED - 3/4" Round - Red / Amber

    $8.99 ea.
  10. Dielectric Electrical Connector Grease - 4 Grams
    Dielectric Electrical Connector Grease - 4 Grams
    $1.99 ea.
  11. Modular Rocker Switch Bracket - End Panel - Edge
    Modular Rocker Switch Bracket - End Panel - Edge
    $1.49 ea.
  12. Round LED Truck and Trailer Lights with Clear Lens - 4" Stop / Turn / Tail Lights - 3-Pin Connector - Flush Mount - 17 LEDs - Red
    Round LED Truck and Trailer Lights with Clear Lens - 4" Stop / Turn / Tail Lights - 3-Pin Connector - Flush Mount - 17 LEDs - Red
    $15.99 ea.
  13. LED Fender Lights - Weatherproof - 6 LEDs - Amber/Red Lens - Passenger and Driver Side
    LED Fender Lights - Weatherproof - 6 LEDs - Amber/Red Lens - Passenger and Driver Side
    $18.99 per Pair
  14. Multi-Function LED Truck and Trailer Lights Combo Box with License Plate Light - Stop / Turn / Tail Lights - Universal Stud Mount
    Multi-Function LED Truck and Trailer Lights Combo Box with License Plate Light - Stop / Turn / Tail Lights - Universal Stud Mount

    $84.95 / kit

  15. Round LED Truck and Trailer Lights Combo Box with License Plate Light - 4" Stop / Turn / Tail Lights - Universal Stud Mount 9 LEDs
    Round LED Truck and Trailer Lights Combo Box with License Plate Light - 4" Stop / Turn / Tail Lights - Universal Stud Mount 9 LEDs

    $46.95 / kit

Overview

Description
The universal square red Optronics LED Trailer tail light can be used as a stop, turn, tail, and marker light. The IP67 waterproof construction is ideal for low profile marine trailer applications. Constructed of a durable acrylic lens and a polycarbonate housing. Hardwire using the pigtail wire. P2 rated.
Product Details:
  • Durable polycarbonate housing and acrylic lens
  • P2 Rated
  • Hardwired with separate ground wire
  • 12 VDC
  • Lifetime Warranty
DOT
DOT
Lifetime
Lifetime
The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures—such as headlights and taillights—that have a DOT compliance mark are legal, safe, and considered to provide suitable illumination for street use when properly installed.
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

  • Turn Lights
  • Side Marker Lights
  • Tail Lights
  • Reverse Lights
  • Brake Lights
  • Emergency Vehicle Lighting
  • Semi-Truck Light
  • Trailer Lights
  • RV Lights

Specifications

Ambient Operating Temperature -30~+50 °C (-22~+122 °F)
Brand Optronics
Certifications/Compliance DOT Compliant
Current Draw 250 mA
DOT Standard FMVSS 108
Environmental Rating Waterproof
Input Connection Type Pigtail
Input Voltage 12 VDC
IP Rating IP67
LED Color Red
LED Quantity 1 LED
Mount Type Stud
PC Rated No
Power Consumption 3 Watts
Product Materials Polycarbonate Housing, Polycarbonate Lens
Warranty Lifetime
Wire Gauge 18 AWG
Print Specifications
Swipe left to see additional specifications
Part NO FMVSS Code Series
STL008RBP A, I, P2 A, S, T
STL008RBP-STL009RBP A, I, P2 A, S, T, L
STL009RBP A, I, P2 A, S, T, L
