BA7s LED Bulb - 1 LED - BA7s Base
Part Number:
BA7s-x-CAR
Manufacturer Part Number:
Starting at
$0.99
ea.
Starting at
Was
Overview

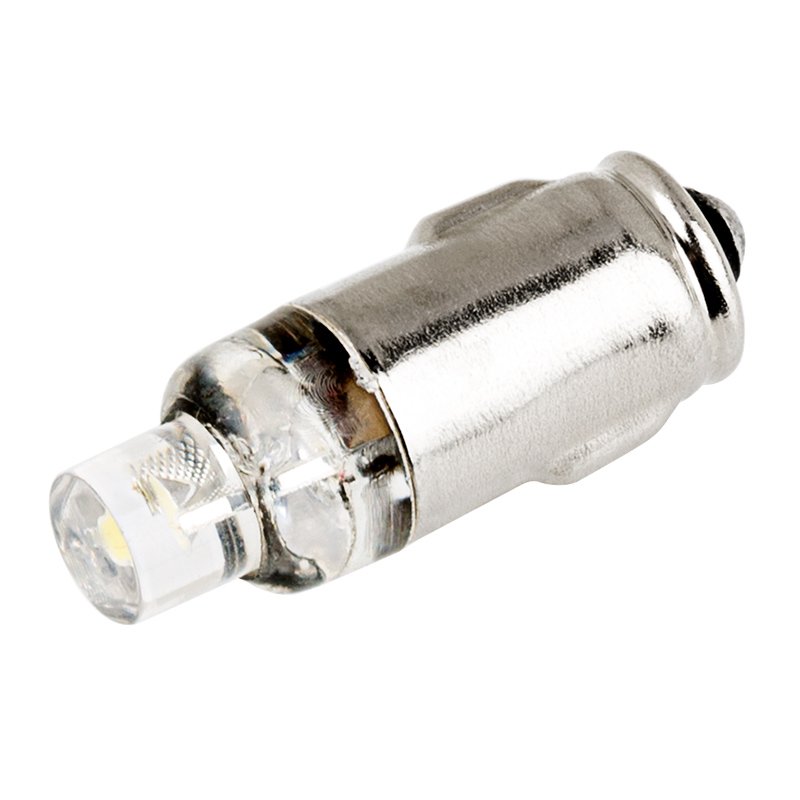

LED replacement bulbs can fit numerous vehicle applications such as dashboard lights, instrument cluster lights and gauge lights. The single-contact BA7s LED bulb replaces traditional 3898 and 16037 bulbs. It has 1 LED that emits a wide 100° viewing angle. European midget bayonet base for easy plug-and-play installation. The energy-efficient bulb has 12V DC operation and is designed to last 10,000 hours on your car, truck, SUV, or van—8 times longer than incandescent bulbs. Available in cool white, blue, green, amber and red.
Info Center
News, Tips, Tutorials
LED Automotive Bulbs
Easy and Effective Vehicle Lighting Upgrades.
Finding the Right Replacement Bulb
Whether you're searching for replacements for burned-out bulbs...
CAN Bus LED Bulbs - FAQ
You may have seen CAN bus bulbs on our website and were unsure of what that meant or if they were compatible...
How to Fix Hyper Flashing for LED Turn Signal Lights
Hyper flashing is where your LED turn signals blink faster than your stock incandescent bulbs did.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Base Type | BA7s (Miniature Bayonet) |
|---|---|
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
100° |
| Brand | Super Bright LEDs |
|
CAN Bus
CAN Bus
CAN Bus LED bulbs are simple plug-and- play LED bulbs which are made specifically for CAN Bus-equipped vehicles. These bulbs work with your vehicle's advanced computer system, so when your vehicle's computer reads them, they respond back correctly.
To see if your vehicle operates with a CAN Bus system, simply remove the bulb you're looking to replace, start your vehicle, and if you have a "Bulb Out" message on your dash you have a CAN Bus system. |
No |
| Compatible Stock Number | SE1274 |
| Current Draw | 10 mA |
| Dimmable | Yes |
| Operating Voltage | 12 VDC |
| Oversize | No |
|
Polarity Sensitive
Polarity Sensitive
Polarity Sensitive (YES)
Bulbs have Plus and Minus (like batteries) and will only work when polarity is correct. If bulb does not work when installed, turn it around in the socket. Polarity Sensitive (NO) Bulbs do not have Plus and Minus and will work either way installed in the socket. |
Yes |
| Reference Number | BA7S |
| Standards And Certifications | CE |
| Warranty | 3 Year |
| Wattage | 0.2 Watts |
| Part NO | LED Color | Lumens | Wavelength |
|---|---|---|---|
| BA7S-A | Amber | 591 nm | |
| BA7S-A-10PK | Amber | 591 nm | |
| BA7S-A-20PK | Amber | 591 nm | |
| BA7S-B | Blue | 1 Lumen | 473 nm |
| BA7S-B-10PK | Blue | 1 Lumen | 473 nm |
| BA7S-B-20PK | Blue | 1 Lumen | 473 nm |
| BA7S-G | Green | 5 Lumens | 532 nm |
| BA7S-G-10PK | Green | 5 Lumens | 532 nm |
| BA7S-G-20PK | Green | 5 Lumens | 532 nm |
| BA7S-R | Red | 2 Lumens | 626 nm |
| BA7S-R-10PK | Red | 2 Lumens | 626 nm |
| BA7S-R-20PK | Red | 2 Lumens | 626 nm |
| BA7S-W | Cool 6500K | 5 Lumens | |
| BA7S-W-10PK | Cool 6500K | 5 Lumens | |
| BA7S-W-20PK | Cool 6500K | 5 Lumens |
Comparing Lumens Across Colors: Why Do Colored Bulbs Have Such Low Lumen Values
| Lumen meters are a great way to measure white light output but can be deceptive for colored bulb intensity. Lumens measure light wavelengths in all colors of the visible spectrum. Because multiple wavelengths create white light and colored bulbs are a single-wavelength source, colored bulbs will have lower lumen readings. However, they will appear equally as bright as a white bulb. |
|
|
|
|---|
Single Filament, Dual Filament, and CK Dual Filament
- How your socket is wired determines the part number of the replacement bulb. Sockets used for a single intensity call for 3156 or 7440 bulbs (single filament). In comparison, sockets with a dual intensity call for 3157 or 7443 bulbs (dual filament). Dual filament bulbs will function appropriately in a single-intensity socket. For example, a 3157 bulb will work in a 3156 socket, and a 7443 will work in a 7440 socket. However, single filament bulbs will not function in a dual-intensity socket. CK sockets have a different wiring orientation, with the ground contacts at the top or bottom vs. standard (left/right). They appear in a few vehicles made in specific years and should only be used with compatible CK bulbs. Please consult your vehicle manual or use our Vehicle Bulb Finder tool to verify bulb compatibility with your vehicle's make and model.
