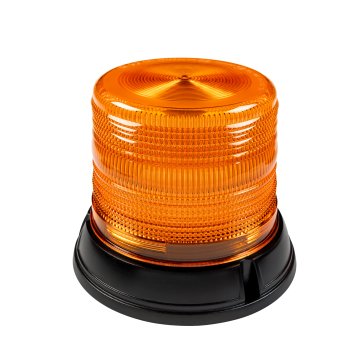

5.5” Amber LED Strobe Beacon - 7 Flash Patterns - Permanent Mount - SAE Class 1 - 12-24 VDC
Part Number:
STB-A56
Manufacturer Part Number:
$39.99
ea.
Was
In Stock
Similar Products Available Today
Features
- 7 strobe flash patterns with memory function
- SAE J845 Class 1 compliant
- CISPR Class 3 for no EMI/RFI interference
- Bolt-on design with included hardware
- Lifetime Warranty
Ask About This Product
Get instant AI-powered answers
Try asking:
Frequently Bought Together
Total Price:
Loading...
Most Popular Compatible Products
Overview

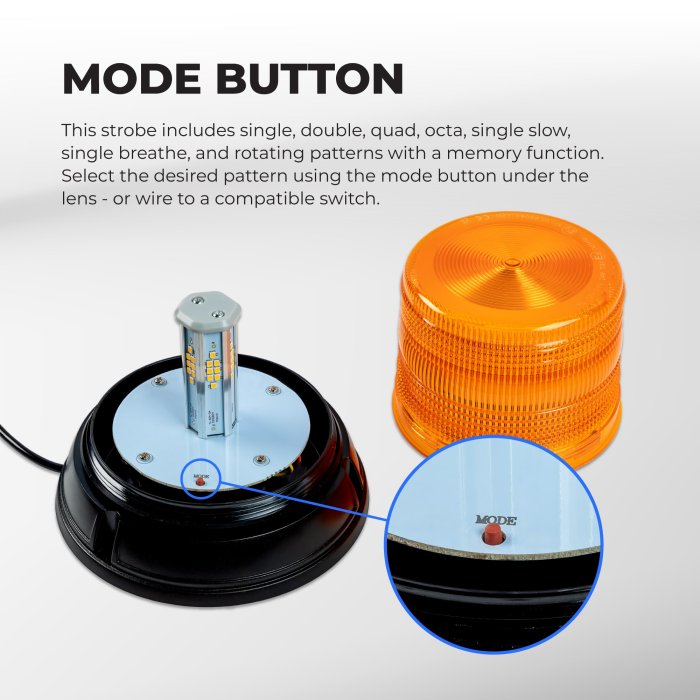

The 5.5” Amber LED Strobe Beacon features seven flash patterns- single, double, quad, octa, single slow, single breathe, and rotating. Each strobe also includes a memory function for simplified operation. Select the desired pattern using the mode button under the lens or wire to a compatible switch to change patterns. The shock- and vibration-resistant strobe beacon is constructed of UV-resistant polycarbonate and can withstand a wide temperature range of -22° to 140°F (-30°–60°C). The beacon light has an IP67 waterproof rating, which means the internal components are protected from dirt, dust, and water. The beacon light easily mounts with a 3-bolt design (hardware included) and protective gasket. 70" long, 3-wire harness hardwires to your vehicle or equipment. CISPR Class 3 compliant for no EMI/RFI interference.

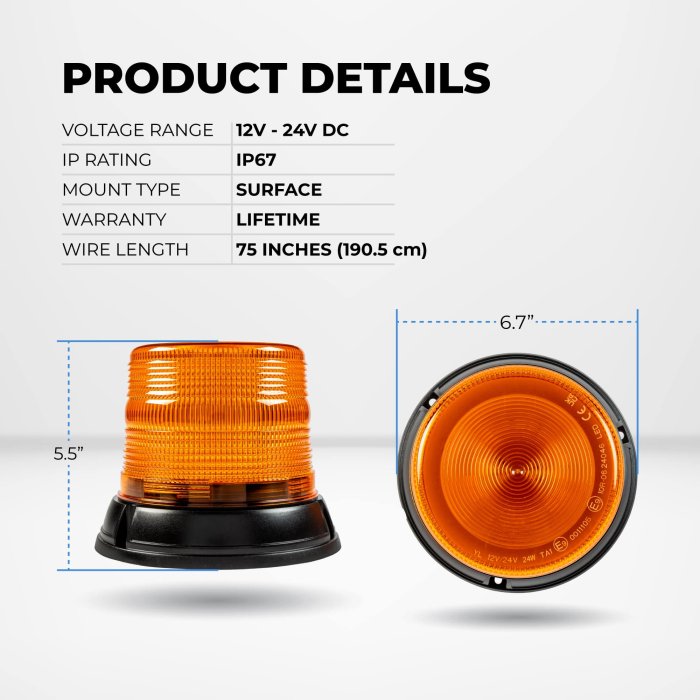

Product Details:
- Polycarbonate housing and lens
- IP67 waterproof
- Bolt-on install - includes mounting hardware and gasket
- 12-24 VDC
- SAE J845 Class 1 compliant; CISPR Class 3
- Lifetime Warranty
Documents

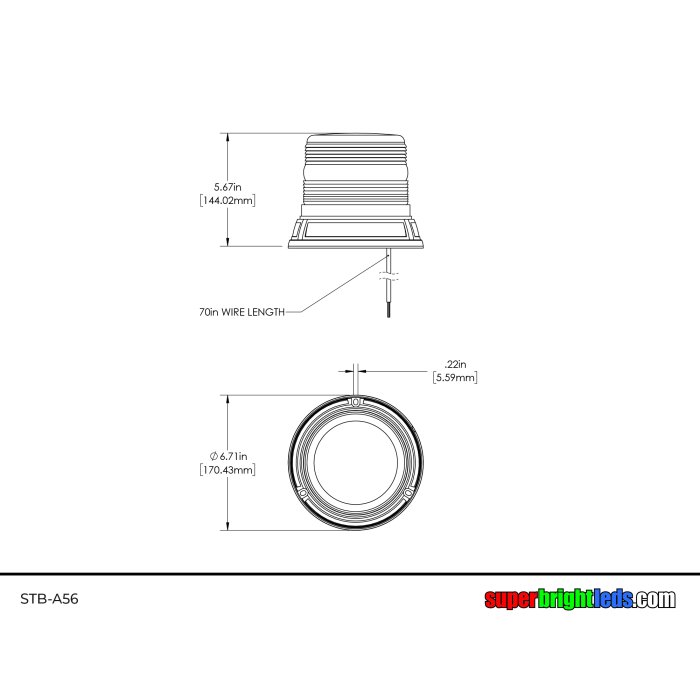

STB-A4 STB-A56 STB-A7 User Manual Dimensional Drawings
Applications:
- Construction Equipment
- Emergency Vehicles
- Farm and Agricultural Equipment
- Fleet Vehicles
- Industrial Vehicles
- Public Safety Vehicles
- Roadside Assistance Vehicles
- Utility Vehicles
- Warning Lights
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Vehicle warning lights are ranked by the Society of Automotive Engineers (SAE) according to class. A Class 1 LED light delivers the most amount of light (in comparison to class 2 and class 3 lights) and is ideal for emergency lighting on ambulances and fire trucks as well as police and rescue vehicles.
RFI EMI Protected
EMI/RFI shielding uses materials like copper or aluminum to protect electronics from electromagnetic interference (EMI) and radio frequency interference (RFI), which are sometimes combined under the heading of electromagnetic compatibility (EMC). This process ensures reliable operation and maintains signal integrity across various applications. Shielding is essential for electronic devices in multiple fields, including healthcare, military, telecommunications applications, and consumer electronics.
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Ambient Operating Temperature | -30 to 60 °C (-22 to 140 °F) |
|---|---|
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
360° |
| Brand | Super Bright LEDs |
| Certifications/Compliance | CE, CISPR Class 3 , SAE J845 Class 1 |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
2 A @ 24 VDC, 4 A @ 12 VDC |
| Diameter | Ø5.2 in. |
| Finish | Black |
| Height | 5.5 in |
| Input Connection Type | Pigtail |
| Input Voltage | 12-24 VDC |
|
IP Rating
IP Rating
 |
IP67 |
| LED Color | Amber |
| LED Quantity | 48 |
| Mount Type | Permanent Mount |
| Product Dimensions | ⌀6.71″ x 5.67″ |
| Product Materials | Polycarbonate |
| Warranty | Lifetime |
| Wire Length | 75 in. (6.25 ft) |
