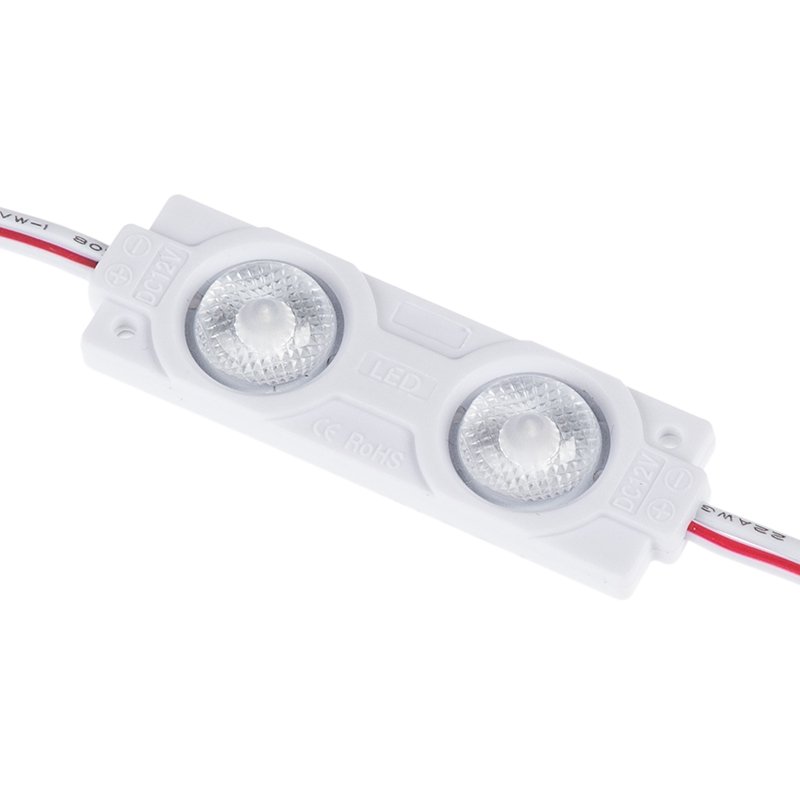

Single Color LED Modules - Linear Module w/ 2 SMD LEDs - 125 Lumens/Module

Single Color LED Modules - Linear Module with 2 SMD LEDs - 125 Lumens/Module - 20-Pack / 100-Pack

Part Number


  • Super wide 170° beam angle - even light dispersal even in shallow channel letters
  • Optics create smooth light with no hotspots
  • 3M™ adhesive backing for easy install
  • Up To 100 mA per module
  • UL Recognized Component
  • Also available with 3 LEDs or 4 LEDs
View more details
In Stock
Only %1 left

Starting at $14.99 per Pack
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify


With the high-quality optic design, these Single-Color LED Modules provide a wide beam of light ideal for sign backlighting, channel letters, and stage construction. Each module contains 2 LEDS and a lens to ensure a smooth, broad illumination free of hotspots. Screw holes allow for more permanent mounting, while 3M™ adhesive backing simplifies set up and take down for trade show displays. A flexible solution for sign and display builders, electrical contractors, or manufacturers, these modules have sealed weatherproof housing for various lighting design applications. Dimmable with optional controllers.

Product Details:

  • Each module measures 2.28"x0.72"
  • 5.5in of wire between each module
  • Max run: 30 modules
  • Requires a constant voltage power supply
  • Rated IP65 for wet locations
  • 12 VDC
  • UL Recognized Component, CE
  • 5 year warranty


  • Accent Lighting
  • Backlighting
  • Channel Letters
  • Cove Lighting
  • Displays
  • Home Interiors
  • OEM Components
  • Retrofit Lighting
  • Sign Lighting
  • Stage & Theaters
  • Trade Shows
  • Under-Cabinets
  • Windows
UL Recognized
UL Recognized
5 Years
5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Recognized label ensures that a product component, such as a power supply or LED light strip, has been tested and verified as safe to use in a UL-Listed product. UL-Listed product samples are tested by UL and meet their Standards for Safety requirements.


Beam Angle 170°
Connection Type Pigtail
Constant Current Yes
Dimming Type PWM
Enclosed Fixture Rated Yes
LED Lifetime 35000 Hours
LED Type 2835 SMD
Material Plastic
Max Run (# of Modules) 30
Operating Temperature -20~+45 °C (-4~+113 °F)
Standards And Certifications CE, UL Recognized
Voltage 12 VDC
Print Specifications
Swipe left to see additional specifications
Part NO Current Draw Current Draw Per Module Lumen Per Module
SMCC2-W40K2-12V-100PK 100mA 125 lm/module
SMCC2-W40K2-12V-20PK 100mA 125 lm/module
SMCC2-W65K2-12V-100PK 100mA 125 lm/module
SMCC2-W65K2-12V-20PK 100mA 125 lm/module
SMCC2-WB2-12V-100PK 100 mA
SMCC2-WB2-12V-20PK 100 mA
SMCC2-WR2-12V-100PK 83mA
SMCC2-WR2-12V-20PK 83mA
