Rigid LED Strip - Narrow PCB Light Bars with 1-Chip LEDs - 155 lm/ft

Rigid LED Strip - Narrow PCB Light Bars with 1-Chip LEDs - 155 lm/ft

Part Number
RLBN-x30SMD-x
Clearance

Starting at $6.99 ea.

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

Loading...

Overview

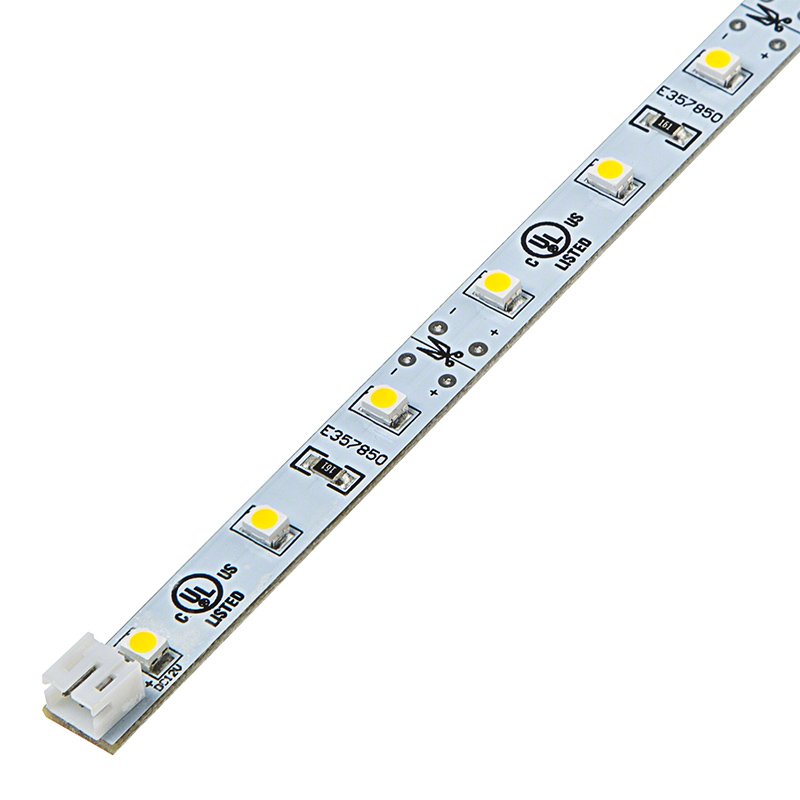

This 19.5" long narrow profile rigid LED light bar features a printed chipboard, 30 1-Chip 3528 SMD LEDs, and end-to-end connection using a C21 Interconnect and Power Jumpers making it an ideal alternative to building with components. The rigid LED strip can be cut into 3-LED segments and operates at 12 VDC.
UL Listed
UL Listed
ISA Approved
ISA Approved
5 Years
5 Years
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Products that have an International Solid-State Lighting Alliance (ISA) label are approved as quality, energy-efficient LED lights that help to create a sustainable society.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

  • LED Cabinet Lighting
  • Showcases
  • Off Grid Lighting
  • Bookshelves
  • Coves
  • Under-Cabinets
  • Trade Shows

Specifications

Certifications/Compliance ISA Approved, UL Listed
Dimmable Yes
Environmental Rating Non-weatherproof, Suitable for Dry Locations
IP Rating IP20
LED Beam Angle 120°
LED Type 3528 SMD
LEDs per Segment 3
Length 19.6in (1.64ft)
Max Run (Class 2) 10
Operating Voltage 12 VDC
Rated Life (L70) 30000 Hours
Series RLBN
Strip Width 8.05mm (0.32in)
Print Specifications
Swipe left to see additional specifications
Part NO Brightness CCT Value Color Temperature Current Draw Current Draw per Foot Power Consumption Wattage per Foot
RLBN-B30SMD 155 lm/ft Blue 0.18A (180mA) 110mA 2.2 Watts 1.3 Watts
RLBN-CW30SMD 124 lm/ft 12500K Cool 12500K 0.18A (180mA) 110mA 2.2 Watts 1.3 Watts
RLBN-NW30SMD 155 lm/ft 4000K Natural 4000K 0.21A (210mA) 128mA 2.5 Watts 1.5 W/ft (4.9 W/m)
RLBN-WW30SMD 137 lm/ft 3500K Warm 3500K 0.18A (180mA) 110mA 2.2 Watts 1.3 Watts
