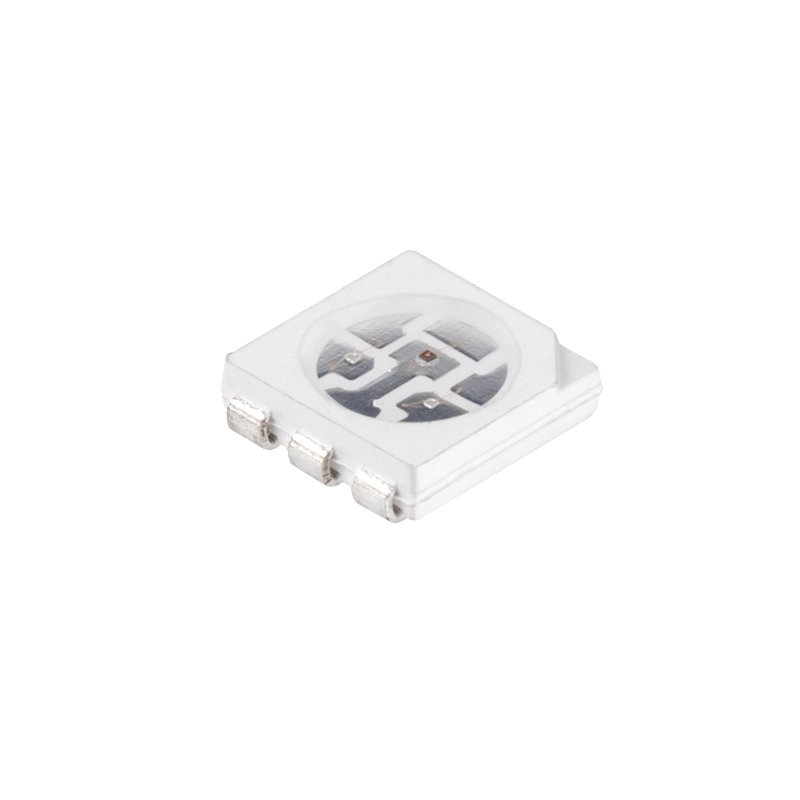

5050 SMD LED - RGB Surface Mount LED w/ 120 Degree Viewing Angle

5050 SMD LED - RGB Surface Mount LED with 120 Degree Viewing Angle - 5050 SMD LED

Part Number
5050-RGB
In Stock
$0.59 ea.

Black Friday Sale: 15% Off Your Entire Purchase! When you use code BFCM22 at checkout. Details⇒

Overview

This 5050 3-Chip SMD LED is the cutting edge in LED color-changing technology. Use this compact SMD LED to blend your 3 source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively. The LED emits a wide 120° viewing angle. Also available in RGB/Natural White, RGB/Warm White, and RGB/Cool White.

Applications

  • LED Backlights
  • Traffic Lights
  • LED Display Lighting
  • Electronic Components

Specifications

Continuous Forward Current 3x20 mA
Forward Voltage R:2.0 G:3.2 B:3.2
Color Options RGB
Lumen 3.14 Lumen
Millicandela 1000mcd
Ambient Operating Temperature Range -20~+80 °C (-4~+176 °F)
Power Consumption 0.192 Watts
Reverse Voltage 5V
Storage Temperature Range -40~+85 °C
Viewing Angle 120 degree
Print Specifications
Part Number: 5050-RGB
RGB 5050
absolute maximum ratings: (TA=25°C)
PARAMETER SYMBOL Rating UNIT
Power Dissipation PD 3x120 mW
Continuous Forward Current IF 3x20 mA
Peak Forward Current (1/10th duty cycle, 0.1ms pulse width) IFM 3x100 mA
Reverse Voltage VR 5 V
Operating Temperature TA -20~+80 °C
Storage Temperature Tstg -40~+85 °C
Lead Soldering Temperature (3mm from body) 260C (for 3 seconds)
Optoelectric Characteristics
PARAMETER SYMBOL MAX TYP UNIT TEST
View Angle of Half Power 1/2 -- 120 Degree --
Forward Voltage VF R:2.2 G:3.4 B:3.4 R:2.0 G:3.2 B:3.2 V IF=20mA
Dominant Emission Wavelength -- -- RGB -- --
Luminous Intensity -- 3.14 -- lm --
Millicandela Output IV -- 1000 mcd IF=20mA
