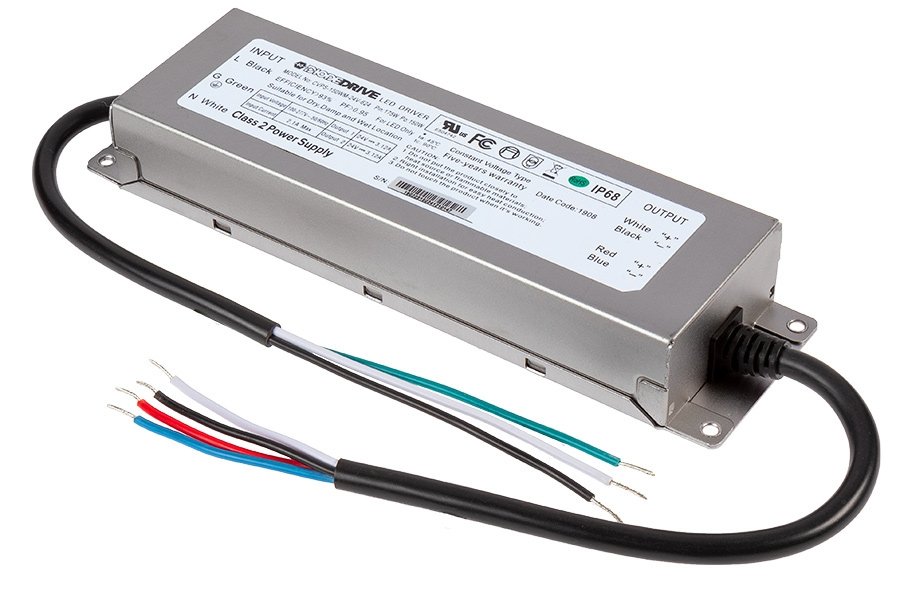

LED Switching Power Supply - DiodeDrive® Series - 150W Enclosed Power Supply - 24V

LED Switching Power Supply - DiodeDrive® Series - 60W-150W Enclosed Power Supply - 24V

Name: LED Switching Power Supply - DiodeDrive® Series - 60W-150W Enclosed Power Supply - 24V
Brand: Super Bright LEDs
SKU: CVPS-xWM-24V
Price: 52.99 USD
Availability: InStock
Rating: 4.4 (5 reviews)

Part Number

CVPS-xWM-24V

Features

DiodeDrive Class 2 power supply
Universal AC input; single or dual output
Protected against short circuit, overload, and over voltage
IP68 rated waterproof housing
UL Recognized, 5 year warranty

View more details

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

Skip to the end of the images gallery

7 photos

Skip to the beginning of the images gallery

Overview

Description

DiodeDrive Class 2 switching power supply is designed for constant voltage operation. Fully enclosed in a waterproof case, the durable device will withstand moisture and dust for a long lifespan. Reliable and widely applicable, use it to power LED lights inside or outside without energy waste or risk of circuit overload.

Product Details:

Class 2 switching power supply; no floating ground
Designed for constant voltage operation
Single or dual output at 150W
Waterproof IP68 rating
Wide voltage input; 100-277 VAC
UL Recognized
5-Year warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Recognized label ensures that a product component, such as a power supply or LED light strip, has been tested and verified as safe to use in a UL-Listed product. UL-Listed product samples are tested by UL and meet their Standards for Safety requirements.

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

LED Electronic Displays
Stage & Theaters
Architectural Lighting
Sign Lighting
Strip Lights

Specifications

Brand	DiodeDrive
Built-in PFC Function	No
Certifications/Compliance	CE, Class 2, UL Recognized
Dimmable	No
Environmental Rating	Suitable for Wet Locations, Waterproof
Input Connection Type	Pigtail
Input Frequency Range	50 ~ 60 Hz
Input Voltage	100-277 VAC
IP Rating .	IP68
Output Connection Type	Pigtail
Output Voltage	24 VDC
Warranty	5 Year

Print Specifications

Part NO	Ambient Operating Temperature Range	Number of Outputs	Output Current	Output Power
CVPS-100WM-24V-416	-40~+60 °C (-40~+140 °F)	1	4.16A (4160mA)	100 Watts
CVPS-100WM-24V-416(POWERCORD)	-40~+60 °C (-40~+140 °F)	1	4.16A (4160mA)	100 Watts
CVPS-150WM-24V-624	-40~+50 °C (-40~+122 °F)	2	6.24A (6240mA)	150 Watts
CVPS-150WM-24V-624(POWERCORD)	-40~+50 °C (-40~+122 °F)	2	6.24A (6240mA)	150 Watts
