LED Strip Lights - 12V LED Tape Light with LC2 Connector - 375 Lumens/ft.

Part Number: NFLS-X3-LC2
42 photos
Select LED Color:
Whites
Cool 6500KNatural 4000KWarm 3000K
Colors
RedUV (Blacklight)YellowAmberGreenBlue
Select Length:
19.7in (1.64ft)39.4in (3.28ft)196.9in (16.40ft)
Discontinued
Clearance Options Available
Starting at $7.95 ea.
Volume price as low as $6.36
Orders ship on or before  Wednesday 12/19/2018

Learn how to install

Notes
  • Select options to see various notes.

Overview

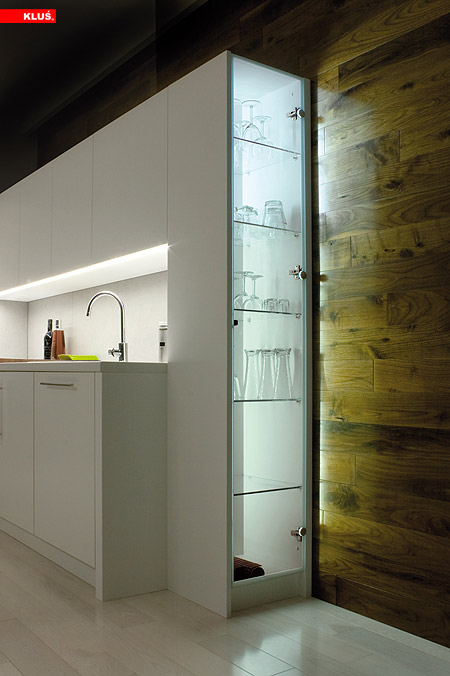

This flexible LED light strip is great for cabinet lighting, under-cabinet lighting, toe-kick lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, bias lighting, or for other indoor applications where space is limited. Using up to 300 LEDs, the flexible light strip emits up to 375 lumens of powerful illumination per foot. The 1-5/8', 3-1/4', or 16-1/2' LED light strip is available with a white backing and can be easily cut into 3-LED segments and installed with its peel-and-stick adhesive backing. Attached LC2 locking connectors let you easily power and join multiple strips. Designed to last 30,000 hours, the single-color light strip operates within a 9-14.8V DC range and is available in cool white, natural white, warm white, UV (blacklight), blue, green, yellow, amber, and red. See compatible LED dimmers. Also available in a 24 VDC version (natural white and warm white) for longer continuous runs.

Important Notes - Please read before purchasing:
Notes
  1. Non-Weatherproof, Indoor use only unless contained within weatherproof housing or used in conjunction with weatherproofing products
  2. Cutting connector will not void warranty
5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. If the same product is no longer available, a product of equal value may be substituted. Read More
UL Listed
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
ISA Approved
Products that have an International Solid-State Lighting Alliance (ISA) label are approved as quality, energy-efficient LED lights that help to create a sustainable society.
RoHS Compliant

RoHS stands for Restriction of Hazardous Substances. Certain materials used in electronics and electrical products have been deemed hazardous to people and the environment and, therefore, must be limited. For a product to be RoHS compliant, testing must be performed and documented to show limited or no use of cadmium, hexavalent chromium, lead, mercury, polybrominated biphenyls, and polybrominated diphenyl ethers.

Download our statement regarding RoHS.

LED Strip Lights - 12V LED Tape Light with LC2 Connector - 375 Lumens/ft. - NFLS-X3-LC2
 Applications
Task Lighting LED Sign Lighting
LED Backlights Accent Lighting
Off Grid Lighting Retail Lighting
Automotive Accent Lighting Cove LED Lighting
Under-Cabinet Lighting Bias Lighting
LED Display Case Lighting Trade Show Lighting

Voltage Range
Operating Voltage Range
9~14.8 VDC

Lumen
Dimmable
Light Strip Can Be Dimmed For Varying Levels of Intensity

High Output
Generates Up To 6,150 Lumens of Cool, or Natural White Light

Lumen
Longevity
Will Outlast Dozens of Incandescent Bulbs

Cut Into Strips
Cut Into Strips
Can Be Easily Cut Into 3-LED Segments

Adhesive Backing
Adhesive Backing
Easy Install - Peel-And-Stick Backing

5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. If the same product is no longer available, a product of equal value may be substituted. Read More
UL Listed
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
ISA Approved
Products that have an International Solid-State Lighting Alliance (ISA) label are approved as quality, energy-efficient LED lights that help to create a sustainable society.
RoHS Compliant

RoHS stands for Restriction of Hazardous Substances. Certain materials used in electronics and electrical products have been deemed hazardous to people and the environment and, therefore, must be limited. For a product to be RoHS compliant, testing must be performed and documented to show limited or no use of cadmium, hexavalent chromium, lead, mercury, polybrominated biphenyls, and polybrominated diphenyl ethers.

Download our statement regarding RoHS.

Specifications

Swipe left to see additional specifications
LED ColorCCT / Wavelength
Intensity Per FootCurrent Draw per Foot @ 12 Volts DC
Wattage
Natural 4000K4000 K375 lm/ft274 mA/ft3.3
Red626 nm54864 mcd/ft335 mA/ft4
Blue470 nm32918 mcd/ft169 mA/ft2
Warm 3000K3000 K380 lm/ft292 mA/ft3.5
Cool 6500K6500 K375 lm/ft292 mA/ft3.5
Amber610 nm54864 mcd/ft237 mA/ft2.9
Yellow605 nm57000 mcd/ft335 mA/ft4
UV400 nm57000 mcd/ft305 mA/ft3.7
Green525 nm100584 mcd/ft292 mA/ft3.5
Part NOLengthNumber of LEDs in UnitCCT / Wavelength
IntensityMax Run
CRI
Current Draw
Power ConsumptionWattagePrice
NFLS-NW60X3-WHT-LC239.4 604000 K1230 lm573900 mA5.4/10.8 W3.3 (Discontinued)
NFLS-WW60X3-WHT-LC239.4 603000 K1260 lm563960 mA11.61 W3.5 $14.95
NFLS-R60X3-WHT-LC239.4 60626 nm-5-1100 mA13.2 W4 (Discontinued)
NFLS-R300X3-WHT-LC2196.9 300626 nm-1-5500 mA66 W4 $69.88
NFLS-B300X3-WHT-LC2196.9 300470 nm-1-2770 mA33 W2 (Discontinued)
NFLS-NW300X3-WHT-LC2196.9 3004000 K6150 lm1734500 mA54 W3.3 (Discontinued)
NFLS-UV300X3-WHT-LC2196.9 300400 nm-1-5000 mA60 W3.7 $69.95
NFLS-CW30X3-WHT-LC219.7 306500 K615 lm1079480 mA5.8 W3.5 (Discontinued)
NFLS-NW30X3-WHT-LC219.7 304000 K615 lm1073450 mA5.4 W3.3 (Discontinued)
NFLS-WW30X3-WHT-LC219.7 303000 K623 lm1063480 mA5.8 W3.5 $7.95
NFLS-B30X3-WHT-LC219.7 30470 nm-10-277 mA3.3 W2 (Discontinued)
NFLS-G30X3-WHT-LC219.7 30525 nm-10-480 mA5.8 W3.5 (Discontinued)
NFLS-UV30X3-WHT-LC219.7 30400 nm-10-500 mA6 W3.7 (Discontinued)
NFLS-CW300X3-WHT-LC2196.9 3006500 K6150 lm1794800 mA58 W3.5 (Discontinued)
NFLS-WW300X3-WHT-LC2196.9 3003000 K6240 lm1634800 mA58 W3.5 (Discontinued)
NFLS-CW60X3-WHT-LC239.4 606500 K1230 lm579960 mA11.5 W3.5 (Discontinued)
NFLS-A300X3-WHT-LC2196.9 300610 nm-1-3900 mA47 W2.9 $69.95
NFLS-Y30X3-WHT-LC219.7 30605 nm-10-550 mA6.6 W4 $7.95
NFLS-A30X3-WHT-LC219.7 30610 nm-10-390 mA4.7 W2.9 (Discontinued)
NFLS-Y300X3-WHT-LC2196.9 300605 nm-1-5500 mA66 W4 $69.95
NFLS-UV60X3-WHT-LC239.4 60400 nm-5-1000 mA12 W3.7 (Discontinued)
NFLS-G60X3-WHT-LC239.4 60525 nm-5-960 mA11.5 W3.5 (Discontinued)
NFLS-G300X3-WHT-LC2196.9 300525 nm-1-4800 mA58 W3.5 $69.88
NFLS-B60X3-WHT-LC239.4 60470 nm-5-554 mA12 W2 (Discontinued)
NFLS-R30X3-WHT-LC219.7 30626 nm-10-550 mA6.6 W4 $9.95

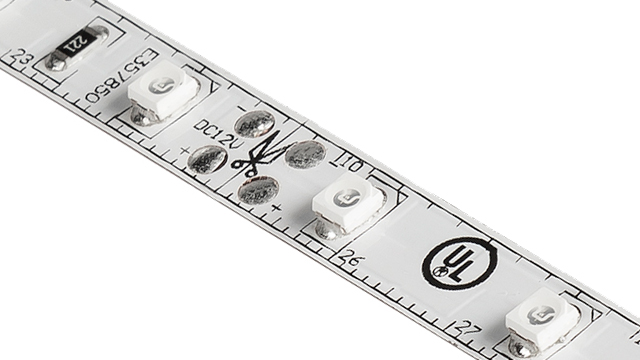

NFLS-X3-LC2 - LED Light Strips - LED Tape Light with 18 SMDs/ft., 3 Chip SMD LED 5050 with LC2 Connector
LED Light Strips - LED Tape Light with 18 SMDs/ft., 3 Chip SMD LED 5050 with LC2 Connector

Accessories & Power Supplies

Reviews

Overall Rating

Total Reviews

22

Tell Us What You Think

Share your own experience and photos of this product. Doing so will help inform other potential buyers and allow us improve our product lines. It may take up to 72 hours for your review to appear.

Sign In Required to Write a Review
Click here to sign in to your account
  • Name
    MARTYN
  • Technical Level
    Advanced
  • Part Number
    NFLS-WW60X3-WHT-LC2
  • Reviewed On
    08/25/16

Perfect cabinet lights

The 39.4" strip fit perfectly inside a kitchen cabinet that I converted into a wine rack. The LED tape is positioned so that the lights are invisible but illuminate the wine bottles nicely. I also used a small dimmer which comes with remote control and a small "Mean Well" DC power supply. Wired it all up so that the wiring and power supply are hidden from view. Every thing works as expected and the warm white light color is perfect. I like this product and plan to order more for some other projects around the house.

Was this review helpful?
60

  • Name
    Curtis
  • Technical Level
    Average
  • Part Number
    NFLS-B300X3-WHT-LC2
  • Reviewed On
    05/26/17

Perfert for my application

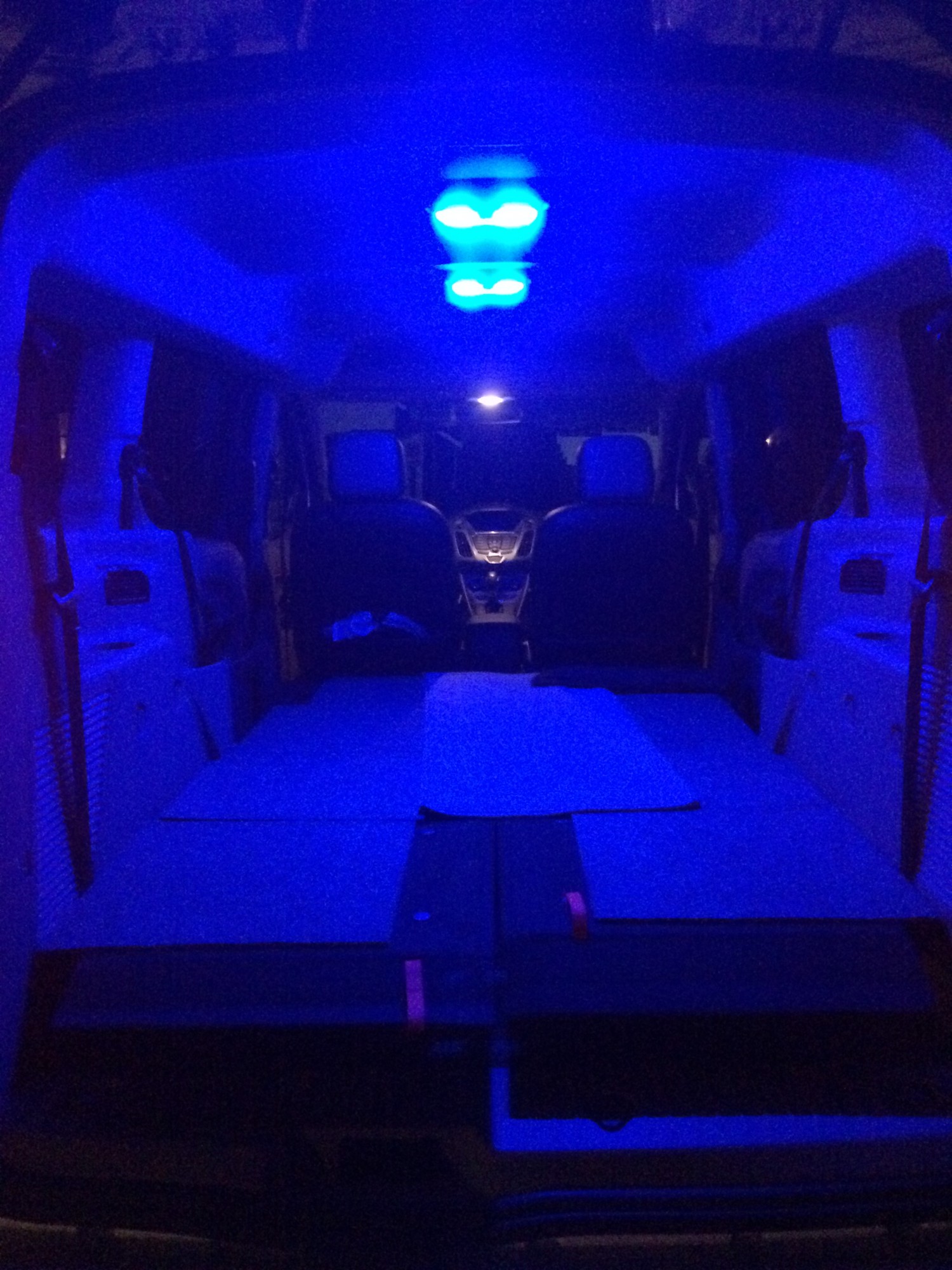

Installed in my Ford Transit Connect Wagon for interior lighting by soldering to a bulb adapter. Less wattage and more light.

Was this review helpful?
51

  • Name
    Wayne
  • Technical Level
    Advanced
  • Part Number
    NFLS-NW60X3-WHT-LC2
  • Reviewed On
    05/29/16

LED light strip

works great, puts out a lot of light

Was this review helpful?
40

  • Name
    Luke
  • Technical Level
    Average
  • Part Number
    NFLS-NW60X3-WHT-LC2
  • Reviewed On
    01/25/18

High light output, clean white light

I used this to illuminate my safe, and it works fantastically. I chopped it up into 20 sections each between 2 and 6 inches, and wired them together using the 10mm clamp on pigtail adapters sold here. The 4000k 'natural white' light really is a pure white output, without any blue or orange hues, and is perfect for 'sterile' illumination, like on a work surface or interior of a safe, and the 1m length outputs about 1,000 total lumens, which is enough to provide the perfect amount of clear, bright light in the safe without being overpowering. And it works great using a 12v 8xAA battery power supply, also sold here. Only gripe is that I had to use a blade to scrape the sticky backing off the contacts between segments on a few pieces, as it was too thick to allow electrical contact to the clamp-on pigtails. Not a big issue. Overall very pleased. I think I'd go with the warm white for normal household use, but the 4k is great for my purposes.

Was this review helpful?
10

  • Name
    Scott
  • Technical Level
    Advanced
  • Part Number
    NFLS-NW60X3-WHT-LC2
  • Reviewed On
    09/20/18

Excellent Product.

I installed these in the toe kicks and as under cabinet lights in a new kitchen remodel project. I'm very satisfied. The lights are bright and smaller, which is a good thing, than I expected. The adhesive sticks very well with only a cleaning of the mounting service with alcohol. I'm still waiting on counter tops and back splashes to be installed. When complete, I'll upload pictures.

Was this review helpful?
00
