M4-HB series High Brightness 2.5in Round LED Marker Lamp: Available In White, Red & Amber

Click to Enlarge Click to view from all angles

Photo Description

Tap to cycle through images

Tap & Hold for zoomable view

Tap & Hold to view from all angles

M4-HB series High Brightness 2.5in Round LED Marker Lamp: Available In White, Red & Amber

M4-HB series High Brightness 2.5in Round LED Marker Lamp: Front View

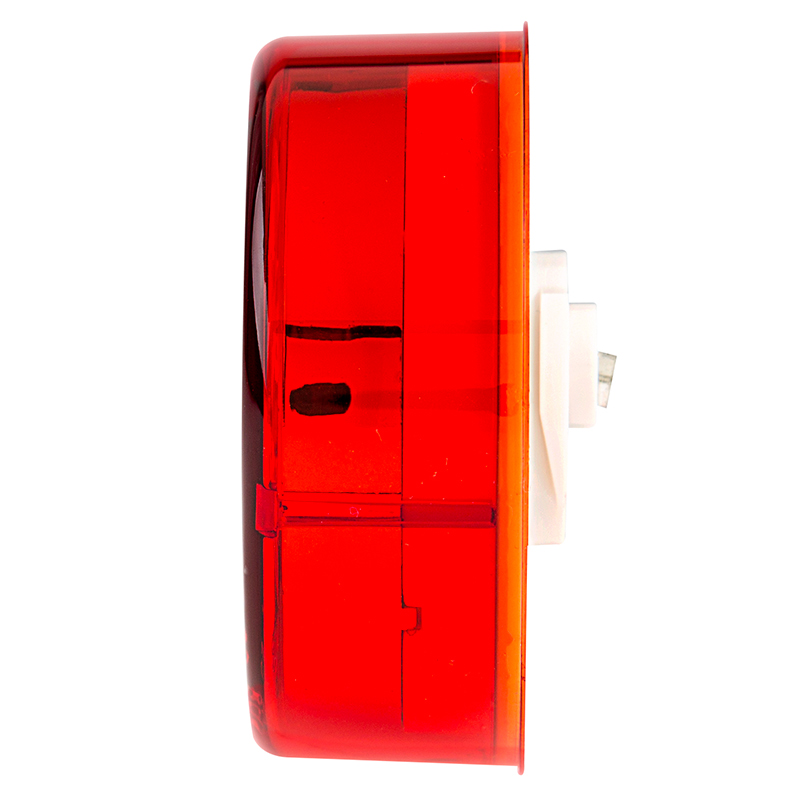

M4-HB series High Brightness 2.5in Round LED Marker Lamp: Profile View

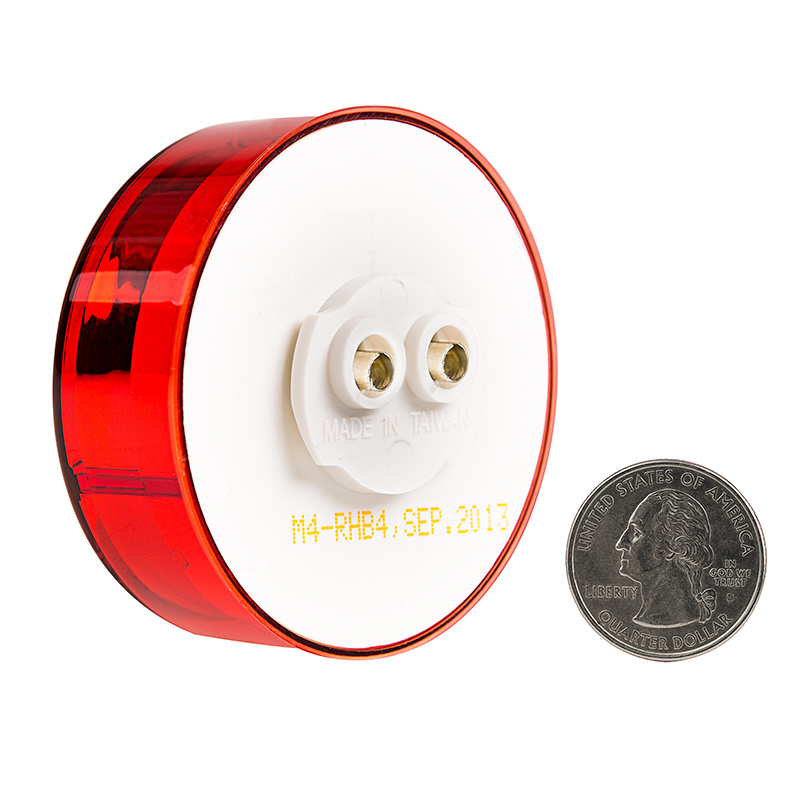

M4-HB series High Brightness 2.5in Round LED Marker Lamp: Back View With Size Comparison

Round LED Truck Trailer Light - 2-1/2" LED Marker Clearance Light with 4 High Output LEDs: Turned On

Round LED Truck Trailer Light - 2-1/2" LED Marker Clearance Light with 4 High Output LEDs

Round LED Truck Trailer Light - 2-1/2" LED Marker Clearance Light with 4 High Output LEDs: Installed on Air Cleaner

Round LED Truck and Trailer Lights - 2-1/2” LED Side Clearance Lights w/ 4 High Flux LEDs - 2-Pin Connector: Installed on School Bus

Showing 1 - 4 of 9

View All Media

Round LED Truck and Trailer Lights - 2-1/2” LED Side Clearance Lights w/ 4 High Flux LEDs - 2-Pin Connector

(5)

Part Number: M4-xHB4

UPC:

Select LED Color:

Colors

Amber

Red

White

Notes

Grommet Not Included

Live Chat

Offline

866-590-3533

Phone and Chat Hours
Mon-Thurs: 8:30am - 8pm, Fri: 8:30am - 4pm

Tech Support Hours
Mon-Fri: 8:30am - 4pm

Various Options In Stock

Discontinued

$6.95 ea.

Quantity Discount Pricing Show Discounts

50 - 99 pieces	$6.25 each
100 - 499 pieces	$5.56 each
500 - 999 pieces	$5.21 each
1000 + pieces	$4.87 each
View discount information or inquire about larger quantity pricing

Qty

Add to Cart

Add to Wish List

Orders ship on or before Wednesday 01/25/2017

Product Information

Product Description

Designed to accept industry standard 2-pin plugs, this 2-1/2” round LED light meets DOT FMVSS 108 requirements for use as side lights and clearance lights. Mounts flush with compatible grommet or flange (sold separately). Each light boasts 4 high-flux LEDs that operate within a wide 9-14.8V DC range and consumes 90% less energy than incandescent lamps. Sonically sealed polycarbonate lens and weatherproof housing. The truck/trailer lights are available in red and amber. Lifetime warranty on all truck/trailer lights. Dimensions: 2.54"(6.30cm) x 1.24"(3.14cm) x 2.54"(6.30cm)

The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures, such as headlights and tail lights, that have a DOT mark are legal, safe, and considered to provide suitable illumination for street use.

An SAE mark means that the Society of Automotive Engineers has tested a product to ensure that it follows guidelines, standards, and practices in regard to design, construction, and materials. SAE's requirements do not guarantee that the product will be street legal. The product must be approved by the Department of Transportation (DOT) before it is considered legal for street use.

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

RoHS stands for Restriction of Hazardous Substances. Certain materials used in electronics and electrical products have been deemed hazardous to people and the environment and, therefore, must be limited. For a product to be RoHS compliant, testing must be performed and documented to show limited or no use of cadmium, hexavalent chromium, lead, mercury, polybrominated biphenyls, and polybrominated diphenyl ethers.

Download our statement regarding RoHS.

Super Bright LEDs, Inc. offers a Lifetime Warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product. If the same product is no longer available, a product of equal value may be substituted.

Round LED Truck Trailer Light

2-1/2" LED Marker Clearance Light with 4 High Output LEDs

Download LED Truck & Trailer Light Catalog

Applications

Semi Truck / Freightliner
Flatbed Trucks / Trailers
Tow Trucks
Box Trucks
Owner/Operator & Show Trucks
Emergency Vehicles and Service Vehicles
RV LED Lights
Camper LED Lights
All About Our LED Truck & Trailer Lights

Features

Clearance Marker LED Light meets DOT FMVSS 108 requirements in any 360 degree position
Sonically sealed polycarbonate lens and weatherproof housing
4 x 3mm High Flux LEDs
Accepts industry standard 2-Pin Pigtail Plug (sold separately)
90% Less Energy than Incandescent Lamps (max 0.70 Amps)
Lifetime Warranty on all LED Truck Lights

View All Round Marker LEDs

View All Marker/Clearance LEDs

View All LED Truck Lights

Specifications

Connector Type	2-Pin	Cross Reference Number	M4
DOT/SAE ID Code	DOT (SAE P2P3 08)	SAE Lighting ID Codes	P2/P3
Water Resistance	Weatherproof IP65	Number of LEDs in Unit	4 LEDs
LED Type	3mm High Flux	Mount Type	Flange/Grommet/Surface
PC Rating	No	Standards And Certifications	CE/DOT/RoHS Compliant/SAE
Volts	9~14.8 VDC
Package Dimensions: 2.52" (6cm) x 1.64" (4cm) x 1.64" (4cm)
Package Weight: 1.70oz (0.05kg)
All specifications are subject to change without notice.

Connector Type	2-Pin
Cross Reference Number	M4
DOT/SAE ID Code	DOT (SAE P2P3 08)
SAE Lighting ID Codes	P2/P3
Water Resistance^[1]	Weatherproof IP65
Number of LEDs in Unit	4 LEDs
LED Type	3mm High Flux
Mount Type	Flange/Grommet/Surface
PC Rating^[2]	No
Standards And Certifications	CE/DOT/RoHS Compliant/SAE
Volts	9~14.8 VDC

Dimensions: 2.52" (6cm) x 1.64" (4cm) x 1.64" (4cm)
All specifications are subject to change without notice. 1. 2.

Swipe left to see additional specifications

Part NO	CCT / Wavelength	Intensity	Current Draw @ 12 Volts DC Current Draw is used to size fuses and wire for a circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	Wire Length	Submersible	Price Ea.
M4-AHB4	-	-	70 mA	-	-	$6.95
M4-RHB4	-	-	0.070 A (70 mA)	-	-	$6.95
M4-WHB4	-	-	0.050 A (50 mA)	-	-	$6.95

All specifications are subject to change without notice.

Dimensional Drawings

M4-xHB4 - Round LED Truck Trailer Light - 2-1/2" LED Marker Clearance Light with 4 High Output LEDs

(Click to Enlarge)

Round LED Truck Trailer Light - 2-1/2" LED Marker Clearance Light with 4 High Output LEDs

Product Photos

Shop by Project Gallery

Share Your Photos

Accessory Type:

Accessories Links

Installation Supplies

Vehicle LED Bulb Finder

Try our Vehicle LED Bulb Finder

Find a compatible flasher for your vehicle

Vehicle LED Bulb Finder

Overall Rating

Total Reviews

Rating Breakdown

100%

(5 Reviews)

Tell Us What You Think

Share your own experience and photos of this product. Doing so will help inform other potential buyers and allow us improve our product lines. It may take up to 72 hours for your review to appear.

Back to Reviews

Click here to sign in to your account

Sort By:

Reviews:

Name

Joshua

Technical Level

Advanced

Part Number

M4-AHB4

Reviewed On

07/24/15

Great Lights

Bright

Was this review helpful?

Name

Christopher

Technical Level

Advanced

Part Number

M4-AHB4

Reviewed On

08/06/13

They look great!

These are nice and bright!

Was this review helpful?

Name

Dave

Technical Level

Advanced

Part Number

M4-AHB4

Reviewed On

12/26/15

Looked great !

Fit well and looked great :)

These fit into the rubber rings on a boat trailer very securely, wiring plug matched what was already there. Just a quick shot of Wd-40 to assist them going into the rings and it was a 30 sec. Install

Was this review helpful?

Name

bogie

Technical Level

Advanced

Part Number

M4-AHB4

Reviewed On

02/02/16

Perfect for application

Using as aux run/turn/brake lights. Mounted in a custom made hitch insert. Using a dual intensity adapter with resistors to dim down for running. Looks great and it very bright at full intensity.

Recommended if looking for a nice looking, bright, 2-1/2", grommet mount light

-bogie

Was this review helpful?

Name

Tony

Technical Level

Average

Part Number

M4-AHB4

Reviewed On

06/26/16

great lights

easy install

Was this review helpful?
