Narrow Rigid LED Light Bar w/ High Power 1-Chip SMD LEDs - 255 Lumens

Part Number: RLBN-x30SMD

(10)

15 photos

CLICK FOR FULL GALLERY

Narrow Rigid Light Bar w/1-Chip LEDs

Click to Enlarge Click to view from all angles

Photo Description

Tap to cycle through images

Tap & Hold for zoomable view

Tap & Hold to view from all angles

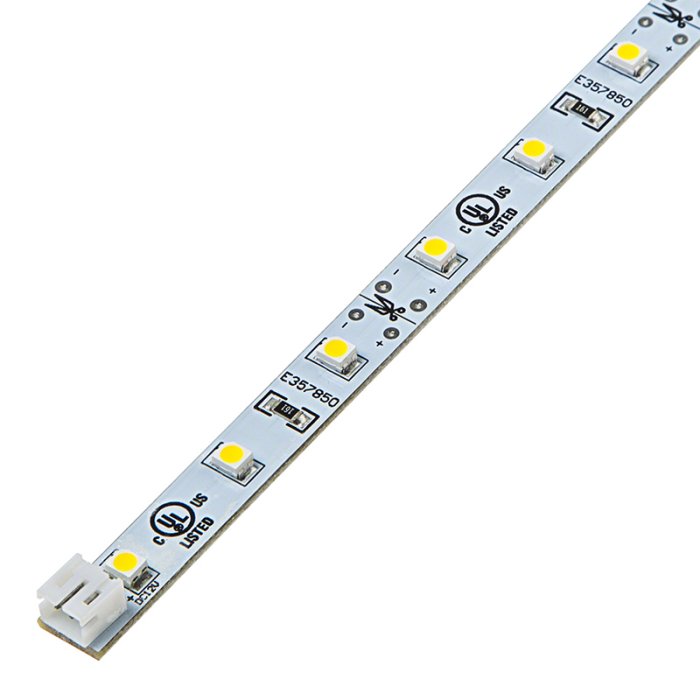

RLBN series Narrow Rigid LED Light Bar w/1-Chip LEDs available in Cool, Natural, and Warm White

Narrow Rigid Light Bar w/1-Chip LEDs: Front & Profile Views

See All Photos and Videos

Narrow Rigid Light Bar w/1-Chip LEDs: Close Up View

Narrow Rigid Light Bar w/1-Chip LEDs: Back View With Size Comparison

Narrow Rigid Light Bar w/1-Chip LEDs: Link Multiple Bars Together Using Interconnector Accessory

RLBN series Narrow Rigid Light Bar w/1-Chip LEDs available in Red, Green, Blue, and Yellow

LED Rigid Light Bars as Under Cabinet Lighting

Narrow Rigid Light Bar w/1-Chip LEDs Sign Illumination

Excellent Product!
I use these strips to illuminate the interior of cabinets that build. They are thin enough in both thickness and width to fit nicely into a 1/2"x1/2" routed channel that is run around the outer edge of the cabinet. The units cast plenty of light that washes over the interior of the cabinet. -John (customer review) — Excellent Product! I use these strips to illuminate the interior of cabinets that build. They are thin enough in both thickness and width to fit nicely into a 1/2"x1/2" routed channel that is run around the outer edge of the cabinet. The units cast plenty of light that washes over the interior of the cabinet. -John (customer review)

Select LED Color:

Whites

Cool 12500K

Natural 4000K

Warm 3500K

Colors

Red

Yellow

Green

Blue

Discontinued

In Stock

Starting at $6.95 ea.

Volume price as low as $5.21

See All Discount Pricing

Entire order discounts do not apply

E-mail me when this product is back in stock

Qty

Add to Cart

Add to Wish List

Orders ship on or before Monday 11/19/2018

Learn how to install

Notes

Select options to see various notes.

Narrow Rigid LED Light Bar w/ High Power 1-Chip SMD LEDs - 255 Lumens

Starting at $6.95 ea.

Overview

Rigid linear LED light bars are an extremely versatile solution for a variety of lighting needs, such as cabinet lighting, under-cabinet lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, or for other indoor applications where space is limited. These 1-5/8' light bars use 3528 SMD LEDs to emit up to 255 lumens of cool white, natural white, warm white, blue, green, yellow, or red illumination. The non-weatherproof light fixtures have 12 VDC operation and can be cut into 3-LED segments. Easily join up to 10 fixtures with compatible interconnect cables (sold separately).

Important Notes - Please read before purchasing:

Back

Notes

Non-Weatherproof, Indoor use only unless contained within weatherproof housing or used in conjunction with weatherproofing products

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. If the same product is no longer available, a product of equal value may be substituted. Read More

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

Products that have an International Solid-State Lighting Alliance (ISA) label are approved as quality, energy-efficient LED lights that help to create a sustainable society.

RoHS stands for Restriction of Hazardous Substances. Certain materials used in electronics and electrical products have been deemed hazardous to people and the environment and, therefore, must be limited. For a product to be RoHS compliant, testing must be performed and documented to show limited or no use of cadmium, hexavalent chromium, lead, mercury, polybrominated biphenyls, and polybrominated diphenyl ethers.

Download our statement regarding RoHS.

RLBN series

Narrow Rigid LED Light Bar w/ High Power 1-Chip SMD LEDs - 255 Lumens - RLBN-x30SMD

Applications

Showcase lighting
Cove LED lighting
Bookshelf LED lighting
Cabinet LED lighting
Under cabinet lighting
Off grid lighting
Trade show lighting

12-Volt Operation
Designed for Low Voltage Applications

Longevity
Will Outlast Dozens of Incandescent Bulbs

Learn

High Output
255 Lumens of Natural White Light

Dimmable
Light Strip Can Be Dimmed For Varying Levels of Intensity

Aluminum Light Bar Fixtures

View All

PCB Light Bars

View All

Rigid LED Linear Light Bars

View All

Products that have an International Solid-State Lighting Alliance (ISA) label are approved as quality, energy-efficient LED lights that help to create a sustainable society.

Download our statement regarding RoHS.

RLBN series

Specifications Print Specifications

Beam Angle

120 degree

Comparable Wattage

25-30 Watts Incandescent

Connection Type

RLBN Female

Dimensions

View Dimensional Drawings

Dimmable

Yes

IP Rating

Non-Weatherproof

LED Lifetime

30000 Hours

LED Type

3528 SMD

LEDs per Segment

Linkable

Yes

Max Run

Number of LEDs in Unit

30 LEDs

Operating Voltage Range

12 VDC

Polarity Sensitive

Yes

Price Per Foot

6.07

Standards And Certifications

ISA Approved, RoHS Compliant, UL Listed

Strip Width

8.05mm (0.32in)

Suitable for Vehicles

Yes

Total Length

19.7in (1.64ft)

Type

Linkable, Printed Circuit Board, Rigid Light Bars

UL File Number

E357850

Package Weight: 0.7oz (0.02kg)

Package Dimensions: 19.92" (51cm) x 0.44" (1cm) x 0.44" (1cm)

All specifications are subject to change without notice.

Swipe left to see additional specifications

Part NO	Emitting Color	CCT / Wavelength CCT / Wavelength	Intensity Per Foot	Intensity	Radiant Power	Current Draw @ Operating Voltage Current Draw @ Operating Voltage Current Draw is used to size fuses and wire for a circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	Power Consumption	CRI CRI	Price	Operating Temperature	Segment Length
RLBN-CW30SMD	Cool 12500K	12500 K	124 lm/ft	204 lm	-	180 mA	2.2 W	-	$7.95	-	-
RLBN-NW30SMD	Natural 4000K	4000 K	155 lm/ft	255 lm	-	210 mA	2.5 W	-	$7.95	-	-
RLBN-WW30SMD	Warm 3500K	3500 K	137 lm/ft	225 lm	-	180 mA	2.2 W	-	$7.95	-	-
RLBN-B30SMD	Blue	470 nm	20117 mcd/ft	-	-	180 mA	2.2 W	-	$6.95	-	-
RLBN-G30SMD	Green	525 nm	31090 mcd/ft	-	-	120 mA	1.4 W	-	$6.95	-	-
RLBN-R30SMD	Red	630 nm	23774 mcd/ft	-	-	180 mA	2.2 W	-	$6.95	-	-
RLBN-Y30SMD	Yellow	590 nm	23774 mcd/ft	-	-	170 mA	2 W	-	$6.95	-	-

All specifications are subject to change without notice.

Product Documentation

UL Certificate of Compliance

RLBN-x30SMD - Narrow Rigid Light Bar w/1-Chip LEDs

Narrow Rigid Light Bar w/1-Chip LEDs

Accessories & Power Supplies

Reviews

Overall Rating

Total Reviews

Rating Breakdown

80%

(8 Reviews)

10%

(1 Review)

10%

(1 Review)

Tell Us What You Think

Share your own experience and photos of this product. Doing so will help inform other potential buyers and allow us improve our product lines. It may take up to 72 hours for your review to appear.

Back to Reviews

Click here to sign in to your account

Sort By:

Reviews:

Name

John

Technical Level

Average

Part Number

RLBN-B30SMD

Reviewed On

05/30/13

excellent product

I use these strips to illuminate the interior of cabinets that build. They are thin enough in both thickness and width to fit nicely into a 1/2"x1/2" routed channel that is run around the outer edge of the cabinet. The units cast plenty of light that washes over the interior of the cabinet.

Was this review helpful?

130

Name

Dan

Technical Level

Average

Part Number

RLBN-B30SMD

Reviewed On

03/12/15

easy

We have put all of these in our motor home.. They give off more light than the old florescent bulb we had before. They are cool even when on for hours so the camper does not heat up. We boon dock a lot so takes less power to run. Recommend to everyone it is worth the change. Easy to install.

Was this review helpful?

Name

Jack

Technical Level

Advanced

Part Number

RLBN-B30SMD

Reviewed On

03/16/15

Rigid LED light bars

Great product. Produces the natural light that I expected.

Rated a 3 because after receiving and installing the lights I noticed some were slightly different than others. All marked natural white. Further investigation - the LEDs on some of the lights were a slightly different shade of yellow than the others. Fortunately, I had enough length of the NW to accomplish my project.

Someone should make sure the lights are all the same before purchase.

Was this review helpful?

Name

george

Technical Level

Expert

Part Number

RLBN-B30SMD

Reviewed On

04/15/15

Nice Light!

I am an Electrical contractor, and I've been using these light strips for my customers under cabinet lighting needs, both for new installs, and replacement of existing lighting. Much brighter, less heat, less power draw. Don't get better than that!

Was this review helpful?
