LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with LC4 Connector

Click to Enlarge Click to view from all angles

Photo Description

Tap to cycle through images

Tap & Hold for zoomable view

Tap & Hold to view from all angles

LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with LC4 Connector

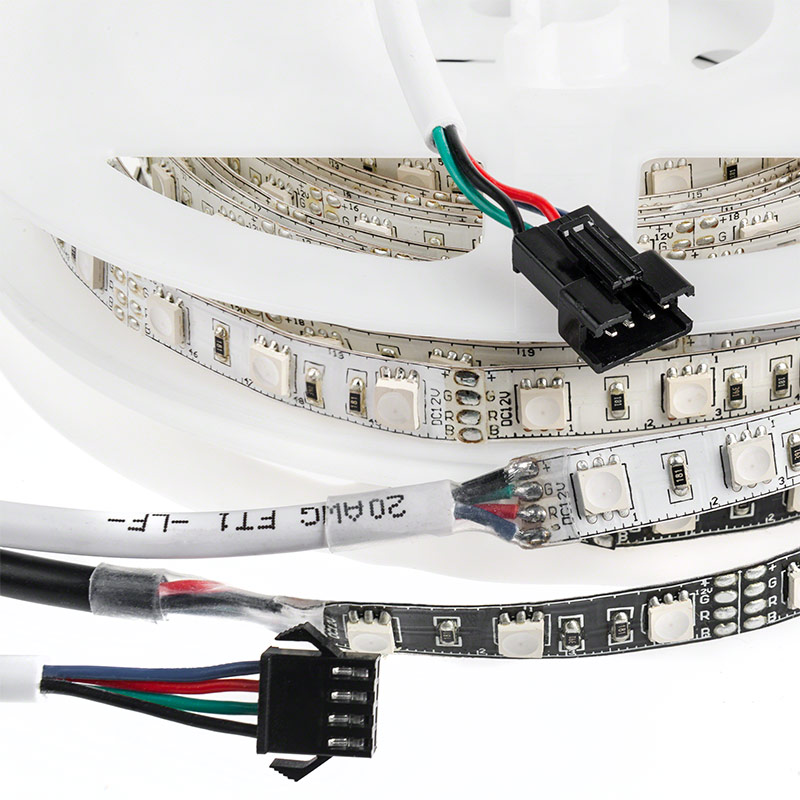

High Power RGB LED Flexible Light Strips - NFLS-RGBX2: White Circuit

High Power RGB LED Flexible Light Strips - NFLS-RGBX2: Black Circuit

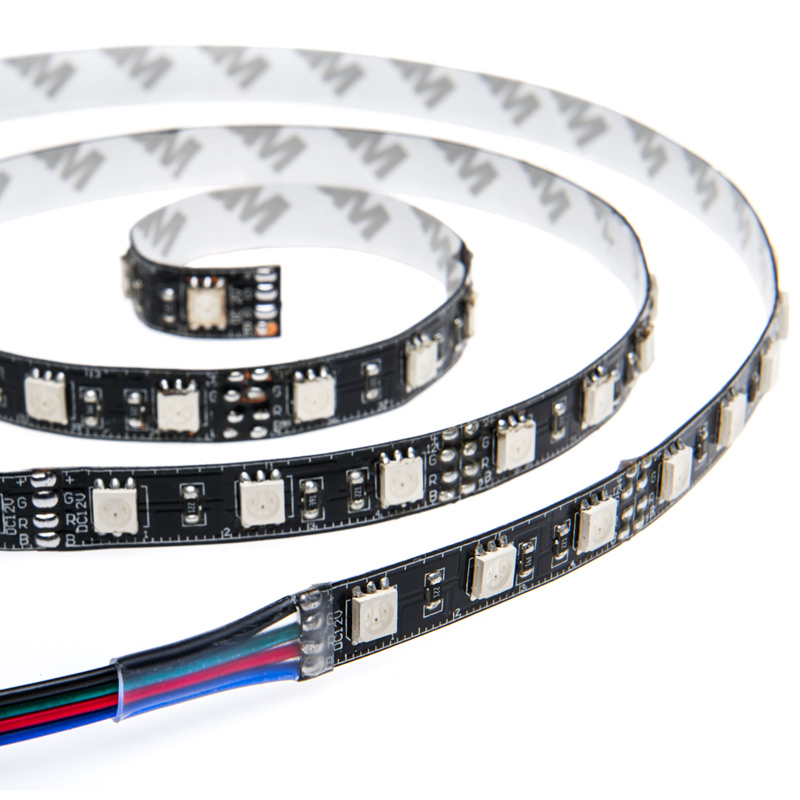

High Power RGB LED Flexible Light Strips - NFLS-RGBX2: Peel and Stick Backing

NFLS Flexible LED Light Strips may be cut at the locations indicated by the scissor symbols

High Power RGB LED Flexible Light Strips - NFLS-RGBX2: Close Up of Light Strip Segment

NFLS-4C4C Flexible Light Strip 4-Way Connect: Used with NFLS-RGBx2

NFLS-4CSD Flexible Light Strip Direct Connect: Used with NFLS-RGBx2

NFLS-4CPTH Flexible Light Strip Pigtail Connector Clamp: Used with NFLS-RGBx2

LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with LC4 Connector: Shown On In Green, Blue, Magenta, Yellow, Cool White, And Red.

LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with LC4 Connector: Shown Installed Around TV And In Cabinets.

LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with LC4 Connector: Shown Installed In, Above, And As Toe Kick Lights On Cabinets.

LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with LC4 Connector: Shown Installed In Closet Ceiling Tray.

Showing 1 - 4 of 14

View All Media

LED Strip Lights with RGB LEDs - LED Tape Light with 18 SMDs/ft and LC4 Connector- 3 Chip RGB SMD LED 5050

Name: LED Strip Lights with RGB LEDs - LED Tape Light with 18 SMDs/ft and LC4 Connector- 3 Chip RGB SMD LED 5050
SKU: NFLS-RGBX2-LC4
Availability: InStock
Rating: 4.8 (5 reviews)

(5)

Part Number: NFLS-RGBX2-LC4

UPC:

Select Strip Finish:

White

Black

Select Length (in):

19.7in (1.64ft)

39.4in (3.28ft)

196.9in (16.40ft)

Notes

Select options to see various notes.

Live Chat

Offline

866-590-3533

Phone and Chat Hours
Mon-Thurs: 8:30am - 8pm, Fri: 8:30am - 4pm

Tech Support Hours
Mon-Fri: 8:30am - 4pm

In Stock

Discontinued

Starting at $14.95 ea.

Quantity Discount Pricing Show Discounts

Please select options for quantity discount information

View discount information or inquire about larger quantity pricing

Qty

Add to Cart

Add to Wish List

Orders ship on or before Wednesday 01/04/2017

Product Information

IMPORTANT NOTES. PLEASE READ BEFORE PURCHASING:

Back

Notes

Non-Weatherproof, Indoor use only unless contained within weatherproof housing or used in conjunction with weatherproofing products
Cutting connector will not void warranty

Product Description

This flexible RGB LED light strip is perfect for cabinet lighting, under-cabinet lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, bias lighting, or for other indoor applications where space is limited. Using up to 300 multicolor LEDs (5050 SMD), the light strip emits up to 4,020 lumens of powerful illumination. The 1-5/8', 3-1/4', or 16-3/8' LED light strip is available with a white or black finish and can be easily cut into 3-LED segments and installed with its peel-and-stick adhesive backing. Attached LC4 locking connectors let you easily power and join multiple strips. Strips have separate RGB power inputs and common anode wire. The RGB LED light strip operates within a 9-14.8 VDC range and can be used with any of our universal RGB controllers for color-changing options. See compatible LED dimmers. Also available in standard density version.

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

Products that have an International Solid-State Lighting Alliance (ISA) label are approved as quality, energy-efficient LED lights that help to create a sustainable society.

RoHS stands for Restriction of Hazardous Substances. Certain materials used in electronics and electrical products have been deemed hazardous to people and the environment and, therefore, must be limited. For a product to be RoHS compliant, testing must be performed and documented to show limited or no use of cadmium, hexavalent chromium, lead, mercury, polybrominated biphenyls, and polybrominated diphenyl ethers.

Download our statement regarding RoHS.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. If the same product is no longer available, a product of equal value may be substituted.

RGB LED Strips with Multi Color LEDs

LED Tape Light with 18 LEDs per Foot
3-Chip 5050 SMD RGB LEDs

Applications

Under cabinet LED lighting
Cove LED lighting
LED task/back lighting
Retail/sign LED lighting
Display case LED lighting
Accent decor LED lighting
Off grid lighting
Trade show lighting

Features

Plug & Play connector
5050SMD RGB LEDs
180 degree
4020 Lumen
12VDC operation
Adhesive backing
Dimmable - See our Dimmer Selection
Can be cut into 3-LED segments

Documentation

View All Top Emitting LED Strip Lights

View All RGB LED Strip Lights

View All LED Light Strips & Bars

Specifications

Beam Angle	180 degree	Connection Type	LC4 Connector/LC4 Female/LC4 Male
Connector Type	LC4	Dimmable	Yes
Water Resistance	Non-Weatherproof	LED Color	RGB
LED Lifetime	40000 Hours	LED Type	5050 SMD
LEDs per Segment	3	Lumen Per Foot	244 lm/ft
Lumen Per LED	13.4 Lumen	MCD Per Foot	38972
MCD Per LED	2132	Polarity Sensitive	Yes
Special Features	Plug and Play	Standards And Certifications	ISA Approved/RoHS Compliant/UL Listed
Strip Width	10mm (0.39in)	Suitable for Vehicles	Yes
Type	Flexible Light Strips/High Density	UL File Number	E357850
Operating Voltage Range	9~14.8 VDC	Wavelength	470 nm/525 nm/626 nm
Wire Length	9in(22.8cm)
All specifications are subject to change without notice.

Beam Angle	180 degree
Connection Type	LC4 Connector/LC4 Female/LC4 Male
Connector Type	LC4
Dimmable	Yes
Water Resistance^[1]	Non-Weatherproof
LED Color	RGB
LED Lifetime	40000 Hours
LED Type	5050 SMD
LEDs per Segment	3
Lumen Per Foot	244 lm/ft
Lumen Per LED	13.4 Lumen
MCD Per Foot	38972
MCD Per LED	2132
Polarity Sensitive	Yes
Special Features	Plug and Play
Standards And Certifications	ISA Approved/RoHS Compliant/UL Listed
Strip Width	10mm (0.39in)
Suitable for Vehicles	Yes
Type	Flexible Light Strips/High Density
UL File Number	E357850
Operating Voltage Range	9~14.8 VDC
Wavelength	470 nm/525 nm/626 nm
Wire Length	9in(22.8cm)

All specifications are subject to change without notice. 1.

Swipe left to see additional specifications

Part NO	Number of LEDs in Unit	Total Length	Intensity	Radiant Power	Beam Angle Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.	Current Draw @ Operating Voltage Current Draw is used to size fuses and wire for a circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	Power Consumption	Max Run Max Run (or maximum run) is used to specify the total number of strips that can run in series without experiencing dimming due to voltage drop. When Max Run is reached, power wires for additional devices must be 'home run' directly back to the power source, starting a new run.	CRI	Price
NFLS-RGB30X2-WHT-LC4	60	39.4in (3.28ft)	804 lm	-	-	808 mA	9.8 W	5	-	$34.95
NFLS-RGB15X2-WHT-LC4	30	19.7in (1.64ft)	402 lm	-	-	404 mA	4.9 W	10	-	$14.95
NFLS-RGB150X2-WHT-LC4	300	196.9in (16.40ft)	4020 lm	-	-	3295 mA	39.5 W	1	-	$134.95
NFLS-RGB30X2-BK-LC4	60	39.4in (3.28ft)	804 lm	-	-	808 mA	9.8 W	5	-	$34.95
NFLS-RGB15X2-BK-LC4	30	19.7in (1.64ft)	402 lm	-	-	404 mA	4.9 W	10	-	$14.95

All specifications are subject to change without notice.

Current Draw per Channel

Lengths	Red	Green	Blue	White (All Channels)
Foot	79mA (0.079A)	81mA (0.081A)	77mA (0.077A)	198mA (0.198A)
1/2 Meter (19.7")	130mA (0.130A)	134mA (0.134A)	127mA (0.127A)	325mA (0.325A)
5 Meter (197")	1300mA (1.3A)	1340mA (1.34A)	1270mA (1.27A)	3250mA (3.25A)

Dimensional Drawings

NFLS-RGBX2-LC4 - LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with

(Click to Enlarge)

LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with LC4 Connector

NFLS-RGBX2-LC4 - LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with

(Click to Enlarge)

LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with LC4 Connector

NFLS-RGBX2-LC4 - LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with

(Click to Enlarge)

LED Light Strips with Multi Color LEDs - LED Tape Light with 18 SMDs/ft., 3 Chip RGB SMD LED 5050 with LC4 Connector

Product Photos

Application Photos

View More Photos

Videos

How-To Videos

Project Galleries

Etched Glass & Stained Glass

Under Cabinet

Cove Lighting

Toe Kick

Home Theater

Share Your Photos

Accessory Type:

Accessories Links

Installation Supplies

Vehicle LED Bulb Finder

Try our Vehicle LED Bulb Finder

Find a compatible flasher for your vehicle

Vehicle LED Bulb Finder

Accessory Type:

Accessories Links

Installation Supplies

Not sure which power supply you need?
Use our Calculator

Not sure which power supply you need?
Use our calculator.

Vehicle LED Bulb Finder

Try our Vehicle LED Bulb Finder

Find a compatible flasher for your vehicle

Vehicle LED Bulb Finder

Overall Rating

Total Reviews

Rating Breakdown

80%

(4 Reviews)

20%

(1 Review)

Tell Us What You Think

Share your own experience and photos of this product. Doing so will help inform other potential buyers and allow us improve our product lines. It may take up to 72 hours for your review to appear.

Back to Reviews

Click here to sign in to your account

Sort By:

Reviews:

Name

William

Technical Level

Advanced

Part Number

NFLS-RGB15X2-WHT-LC4

Reviewed On

03/27/16

Bright.

Cut in half was perfect size for inside my atv headlight housing. Makes things easy because both side of light strip is pre wired. Plenty bright! Awesome with waterproof controller. Everyone loves them!

Was this review helpful?

Name

Isaac

Technical Level

Average

Part Number

NFLS-RGB150X2-WHT-LC4

Reviewed On

03/11/15

Great lights!!!!

This light are super bright and the LC4 connector is great I would give this a 5 star but they didn't have the strips in black which I need it them so bad in black but the lights are awesome and Im still willing to buy more.

Was this review helpful?

Name

Norman

Technical Level

Average

Part Number

NFLS-RGB150X2-WHT-LC4

Reviewed On

11/23/15

RGB LED light strip

Great product. Constructed more rugged than the other LED's. I bought the inline controller and I'm amazed how such a small controller can do so many things. Micro chips are wonderful!

Was this review helpful?

Name

Technical Level

Expert

Part Number

NFLS-RGB150X2-WHT-LC4

Reviewed On

06/15/16

Excellent product

I In May of 2013 I ordered some Led's to go on my wood bass drum hoop ! nfls-rgb-nfls-rgb30-bk and the controller and power suppy. I have another set of acoustic drums that I wanted to do the same on a metal rim. I will add that Ryan was excellent help @ that time. The Led's I got then are discontinued so I got the 2 of the nfls-rgb30x2-bk-lc4: rgb high density-lc4 on Friday May 27 and then another on June 1 of this year in order to reach around the drum hoop . Note that the last lights has 5 lights where the original first ones had 3. so more led's on the strip. I also ordered the direct connect clipnfls10-4cdh and another Tb-6P connector so I can use same controller on the drum as only need one at a time. I had to take a knife and cut the ridged cable off the connector end for more flexible bending and the 3 m adhesive to stick. I am retired self employed electronic Tech from Tupelo Ms. after 40 years. Good technical advice from Ryan the first time,Irvin

Was this review helpful?

Name

LUCIA

Technical Level

Average

Part Number

NFLS-RGB150X2-WHT-LC4

Reviewed On

05/06/15

GREAT ITEM

WORKS WELL!

Was this review helpful?

Sort By:

Reviews:
