PAR20 LED Bulb, 5W Dimmable
- Select options to see various notes.
|50 - 99 pieces||$20.59 each|
|100 - 499 pieces||$18.30 each|
|500 - 999 pieces||$17.16 each|
|1000 + pieces||$16.02 each|
|For discount information or inquiring about larger quantity pricing, click here|
This product has been discontinued.
PAR20D-x5X1-30 series dimmable spot light LED replacement bulb for traditional PAR20 medium screw base lamps. Light output comparable to 25~30 Watt incandescent bulbs. Consumes 6 Watts of power using 5 x 1 Watt White LEDs. Only dimmable PAR20 120VAC Edison screw base bulb. Available in Cool White or Warm White with 30° beam angle.
Standards and Certifications
PAR20 LED Bulb
- Dimmable spot light LED replacement bulb for traditional PAR20 medium screw base lamps
- 5 x 1 Watt White LEDs
- 30 Degree beam pattern
- 210 Lumen
- Base: E26/E27 (Medium)
|Base Type||E26/E27 (Medium)|
|Beam Angle||30 degree|
|Comparable Wattage||25~30 Watts|
|LED Lifetime||30000 Hours|
|LED Quantity||5 LEDs|
|Lumen (Max)||210 Lumen|
|Standards And Certifications||ROHS Compliant|
|Total Power Consumption||6 Watts|
|Operating Voltage Range||120 VAC|
Dimensions: 8.55cm(3.37") x 6cm(2.36") x 6cm(2.36")
All specifications are subject to change without notice.
1. Total product power consumption, measured in watts, including drive circuitry and controllers that make up the entire lamp.
|Part NO||Emitting Color||LED Wattage |
LED manufacturer's wattage rating
|Intensity per LED||Intensity||Beam Angle |
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
Royal Blue is binned by radiometric power and peak wavelength rather than photometric lumens and dominate wavelength
|CCT / Wavelength |
CCT is used to express the color or shade of white light. The Correlated Color Temperature is the measure of the color appearance of the light emitted from a light source, measured in degrees kelvin (K). The CCT rating is a general 'warmth' or 'coolness' measure of its appearance. Wavelength is used to express a specific color of light other than whites. Wavelength is the portion of the visible spectrum that the human eye can detect, between 380 and 700 nanometers (nm). When trying to match an existing bulb color choose a replacement that most closely matches the CCT or wavelength of the original.
|CRI ||Price Ea.|
|PAR20D-CW5X1-30-DI||Cool White||-||42 lm/led||210 lm||-||-||6700 K||80||(Discontinued)|
|PAR20D-WW5X1-30-DI||Warm White||-||33 lm/led||165 lm||-||-||3150 K||77||(Discontinued)|

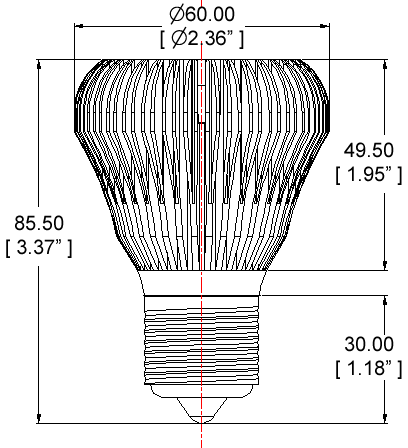

Dimensions in millimeters (inches)
