COB LED Halo Headlight Accent Lights with Constant Current Driver
Cool 7000K
Natural 5200K
Warm 2600K
Green
Amber
Red
80 mm
90 mm
100 mm
120 mm
- Select options to see various notes.
| 50 - 99 pieces | $10.69 to $19.69 each |
| 100 - 499 pieces | $9.50 to $17.50 each |
| 500 - 999 pieces | $8.91 to $16.41 each |
| 1000 + pieces | $8.32 to $15.32 each |
| View discount information or inquire about larger quantity pricing | |
Product Information
- Non-Weatherproof, Indoor use only unless contained within weatherproof housing or used in conjunction with weatherproofing products
- Due to excessive heat given off by standard automotive headlights, you should allow adequate clearance between any AE or accessory or part may become damaged.
Product Description

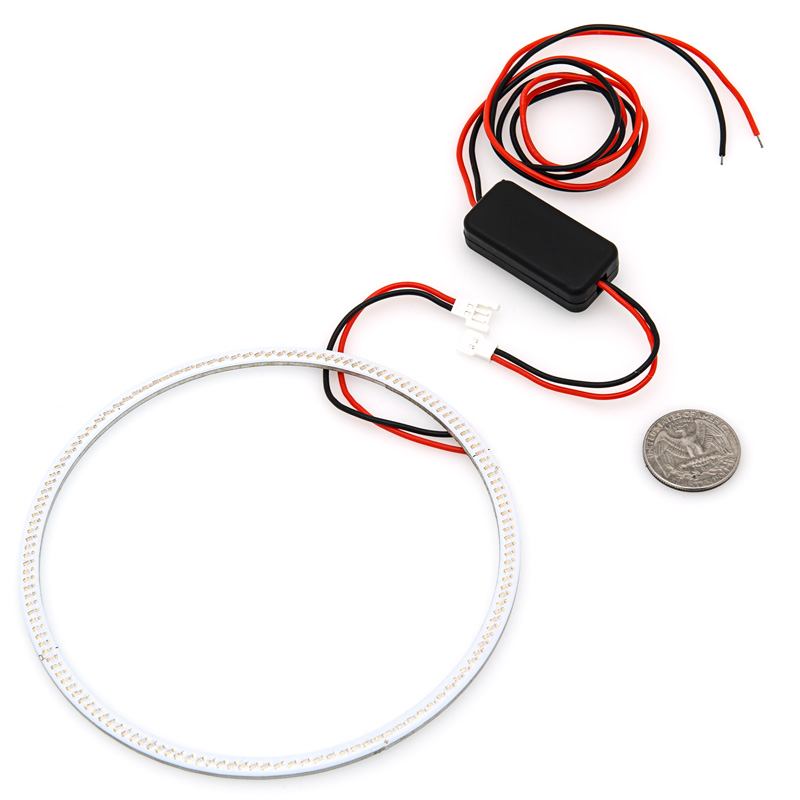

Make your car, truck, motorcycle, jeep, ATV, or UTV stand out with these COB LED Halo Headlight Accent Lights (Angel Eyes). The long-lasting halo rings can be used as daytime running lights and as city light alternatives to provide an even, decorative glow around vehicle headlights. The circular LED lights can also be used for general accent lighting. A variety of sizes are available from 60 mm-120 mm with 66-144 cool-running COB LEDs respectively. COB LEDs emit a solid, even 120° beam of cool white, natural white, warm white, blue, green, amber, or red illumination with no hot spots or glare. White LED's have a yellow phosphor that can be made to appear white with Angel Eye Plastic Covers. The LED halo rings include an external constant current driver for 12-30V DC operation and 3M double-sided adhesive for easy installation. Price for each.
RoHS stands for Restriction of Hazardous Substances. Certain materials used in electronics and electrical products have been deemed hazardous to people and the environment and, therefore, must be limited. For a product to be RoHS compliant, testing must be performed and documented to show limited or no use of cadmium, hexavalent chromium, lead, mercury, polybrominated biphenyls, and polybrominated diphenyl ethers.
LED Angel Eye
Headlight Accent Lights - COB
Specifications
| Beam Angle | 120 degree | Connection Type | Pigtail |
|---|---|---|---|
| LED Type | COB (chip-on-board) | Standards And Certifications | RoHS Compliant |
| Suitable for Vehicles | Yes | Type | COB Halo Ring |
| Volts | 12~30 VDC |
| Beam Angle | 120 degree |
|---|---|
| Connection Type | Pigtail |
| LED Type | COB (chip-on-board) |
| Standards And Certifications | RoHS Compliant |
| Suitable for Vehicles | Yes |
| Type | COB Halo Ring |
| Volts | 12~30 VDC |
| Part NO | Emitting Color | Diameter | Current Draw @ Operating Voltage
Current Draw is used to size fuses and wire for a circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).
| LED Quantity | Intensity | Milliwatt
Royal Blue is binned by radiometric power and peak wavelength rather than photometric lumens and dominate wavelength
| CCT / Wavelength
| Price Ea. | |
|---|---|---|---|---|---|---|---|---|---|
| AE60-CW66-COB | Cool 13850K | 60 mm | 200 mA | 66 | 119 lm | - | 13850 K | $11.88 | |
| AE60-B66-COB | Blue | 60 mm | 190 mA | 66 | 18 lm | - | 455 nm | $11.88 | |
| AE60-G66-COB | Green | 60 mm | 140 mA | 66 | 77 lm | - | 522 nm | (Discontinued) | |
| AE60-R66-COB | Red | 60 mm | 130 mA | 66 | 59 lm | - | 633 nm | $11.88 | |
| AE60-A66-COB | Amber | 60 mm | 100 mA | 66 | 12 lm | - | 595 nm | (Discontinued) | |
| AE80-CW81-COB | Cool 7000K | 80 mm | 200 mA | 81 | 115 lm | - | 7000 K | (Discontinued) | |
| AE80-B81-COB | Blue | 80 mm | 190 mA | 81 | 20 lm | - | 453 nm | (Discontinued) | |
| AE80-R81-COB | Red | 80 mm | 120 mA | 81 | 48 lm | - | 626 nm | (Discontinued) | |
| AE80-A81-COB | Amber | 80 mm | 130 mA | 81 | 48 lm | - | 595 nm | (Discontinued) | |
| AE90-CW105-COB | Cool 7000K | 90 mm | 210 mA | 105 | 170 lm | - | 7000 K | $18.88 | |
| AE90-B105-COB | Blue | 90 mm | 230 mA | 105 | 36 lm | - | 455 nm | $18.88 | |
| AE90-R105-COB | Red | 90 mm | 200 mA | 105 | 89 lm | - | 633 nm | $18.88 | |
| AE90-A105-COB | Amber | 90 mm | 125 mA | 105 | 17 lm | - | 595 nm | $18.88 | |
| AE100-CW116-COB | Cool 7000K | 100 mm | 310 mA | 116 | 182 lm | - | 7000 K | (Discontinued) | |
| AE100-B116-COB | Blue | 100 mm | 210 mA | 116 | 29 lm | - | 453 nm | $19.88 | |
| AE100-G116-COB | Green | 100 mm | 220 mA | 116 | 118 lm | - | 525 nm | $19.88 | |
| AE100-A116-COB | Amber | 100 mm | 130 mA | 116 | 18 lm | - | 595 nm | $19.88 | |
| AE80-G81-COB | Green | 80 mm | 160 mA | 81 | 90 lm | - | 522 nm | (Discontinued) | |
| AE100-R116-COB | Red | 100 mm | 220 mA | 116 | 93 lm | - | 630 nm | $19.88 | |
| AE90-G105-COB | Green | 90 mm | 240 mA | 105 | 118 lm | - | 523 nm | $18.88 | |
| AE120-WW144-COB | Warm 2600K | 120 mm | 370 mA | 144 | 230 lm | - | 2600 K | (Discontinued) | |
| AE120-NW144-COB | Natural 5200K | 120 mm | 360 mA | 144 | 295 lm | - | 5200 K | (Discontinued) | |
| AE120-CW144-COB | Cool 7000K | 120 mm | 380 mA | 144 | 225 lm | - | 7000 K | $21.88 | |
| AE120-B144-COB | Blue | 120 mm | 360 mA | 144 | 44.4 lm | - | 455 nm | $21.88 | |
| AE120-G144-COB | Green | 120 mm | 360 mA | 144 | 213 lm | - | 523 nm | $21.88 | |
| AE120-R144-COB | Red | 120 mm | 290 mA | 144 | 84 lm | - | 630 nm | $21.88 | |
| AE120-A144-COB | Amber | 120 mm | 280 mA | 144 | 91 lm | - | 600 nm | $21.88 |
Dimensional Drawings
Product Photos
Application Photos
Overall Rating
Total Reviews
Rating Breakdown
Tell Us What You Think
Share your own experience and photos of this product. Doing so will help inform other potential buyers and allow us improve our product lines. It may take up to 72 hours for your review to appear.
-
NameHenri
-
Technical LevelAdvanced
-
Part NumberAE100-A116-COB
-
Reviewed On07/27/13
Looks good
Ordered this to mount on the spindles of our shop CNC machines. Would be nice to know which wire (pink or white) goes to the positive side of the power source.
cnc@themonniers.com
Thanks.................
Staff
Response
Thank you for your comments and rating on this product. Please note that these are non-polarized, so it does not matter which way this power is connected for them to work. We have updated our information to make this more clear.
-
NameJoseph
-
Technical LevelAdvanced
-
Part NumberAE100-A116-COB
-
Reviewed On03/25/13
-
NameFrank
-
Technical LevelAverage
-
Part NumberAE100-A116-COB
-
Reviewed On02/10/14
Led Halo
I used these in my tail lights. They had individual led's before and I didn't like the gap between the led's so I switched to these instead. These are 10x brighter than the led's because the entire ring is also the circuit board, no gaps, just a nice complete circle
-
NameJedidiah
-
Technical LevelAdvanced
-
Part NumberAE100-G116-COB
-
Reviewed On04/07/14
Great for Automotive Angel Eyes
Installed 5 sets of these in the headlights and taillights. They look awesome and I hope they last. Definitely much better than the regular style LED Angels. Quality looks and feels great but only the Test-of-Time will tell. Thanks alot guys!
-
NameAleksey
-
Technical LevelAverage
-
Part NumberAE100-A116-COB
-
Reviewed On08/29/14
-
NameWilliam
-
Technical LevelAdvanced
-
Part NumberAE100-A116-COB
-
Reviewed On07/19/13
Angel eyes
The 80mm COB angel eyes have a nice white glow. Compare to the 60mm COB angel eyes I like better the color on the 60mm than the 80mm. The wire that is solder to the back of the board is pretty fragile. Avoid moving it around to much. Using a hot glue gun, I put a bit on top of the soldering point. Overall I like very much. If they could get the same color of the 60mm COB it will be perfect.
-
Nameterry
-
Technical LevelAverage
-
Part NumberAE90-CW105-COB
-
Reviewed On07/28/15
-
Nameterry
-
Technical LevelAverage
-
Part NumberAE60-A66-COB
-
Reviewed On07/28/15
Nothing even about this colors glow
No better looking than the standard eye and one had 3 leds burn out within days of startup.
Staff
Response
SBL will replace any defective product under the terms of warranty. Nay product that is received DOA will also have a prepaid return shipping label issued.
