PC74 LED Bulb - High Power Instrument Panel LED

Part Number: T1.5-xHP
Select LED Color:
Whites
Cool 6750K
Colors
RedUV (Blacklight)AmberGreenBlue
Discontinued
In Stock
$1.79 ea.
Volume price as low as $1.34
Orders ship on or before  Monday 11/19/2018
Notes
  • Select options to see various notes.

Overview

PC74 type 12VDC replacement bulb with 1 high power SMD LED. Twist lock instrument cluster and gauge illumination bulb. Up to 18 lumen. 74 bulb installed in twist lock base. The energy-efficient bulb operates within a wide 9-14.8V DC range and is designed to last 10,000 hours on your car, truck, SUV, or van—25 times longer than incandescent bulbs.

3 Years
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. If the same product is no longer available, a product of equal value may be substituted. Read More
CE
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
RoHS Compliant

RoHS stands for Restriction of Hazardous Substances. Certain materials used in electronics and electrical products have been deemed hazardous to people and the environment and, therefore, must be limited. For a product to be RoHS compliant, testing must be performed and documented to show limited or no use of cadmium, hexavalent chromium, lead, mercury, polybrominated biphenyls, and polybrominated diphenyl ethers.

Download our statement regarding RoHS.

PC74 LED Bulb - High Power Instrument Panel LED - T1.5-xHP
 Applications
Instrument Cluster Lights
Instrument Panel Lights
Gauge Lights

The T1.5-xHP has an operating voltage range of 9~14.8 VDC
Operating Voltage Range
9~14.8 VDC

T1.5-xHP outputs up to 18 lumens
High Output
18 Lumens of Cool White Light

3 Years
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. If the same product is no longer available, a product of equal value may be substituted. Read More
CE
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
RoHS Compliant

RoHS stands for Restriction of Hazardous Substances. Certain materials used in electronics and electrical products have been deemed hazardous to people and the environment and, therefore, must be limited. For a product to be RoHS compliant, testing must be performed and documented to show limited or no use of cadmium, hexavalent chromium, lead, mercury, polybrominated biphenyls, and polybrominated diphenyl ethers.

Download our statement regarding RoHS.

Specifications

Swipe left to see additional specifications
Part NOCCT / Wavelength
Brightness
Price Ea.Product Weight
T1.5-RHP626 nm7.5 lm$1.79-
T1.5-AHP590 nm5 lm$1.79-
T1.5-CWHP6750 K18 lm$1.79-
T1.5-BHP473 nm3.5 lm$1.79-
T1.5-GHP531 nm12 lm$1.79-
T1.5-UVHP405 nm-$1.79-
T1.5-xHP - PC74 LED Bulb - High Power Instrument Panel LED
PC74 LED Bulb - High Power Instrument Panel LED

Reviews

Overall Rating

Total Reviews

38

Tell Us What You Think

Share your own experience and photos of this product. Doing so will help inform other potential buyers and allow us improve our product lines. It may take up to 72 hours for your review to appear.

Sign In Required to Write a Review
Click here to sign in to your account
  • Name
    Will
  • Technical Level
    Expert
  • Part Number
    T1.5-BHP
  • Reviewed On
    05/28/13

Awesome transformation!!

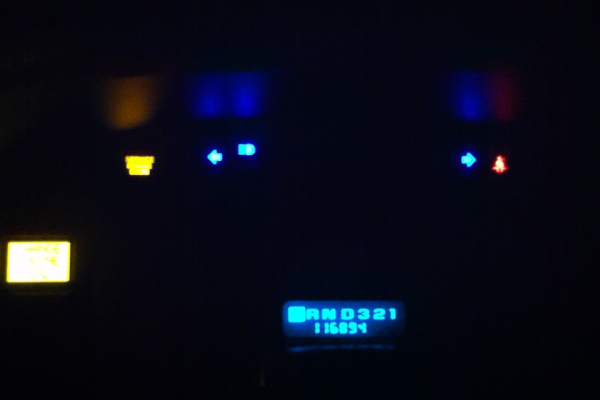

These little LED's pack a punch! Worked right away once I figured out what the polarity. Made the pale green of my dash lights become a vivid blue and transformed my gauge cluster into an easy to read and well lit display.
Also, they still dim like my old dash lights would for night driving/preference.

Was this review helpful?
221

  • Name
    Ken
  • Technical Level
    Advanced
  • Part Number
    T1.5-AHP
  • Reviewed On
    07/14/14

Keep in Mind...

Installed these in the instrument panel of my 2002 Dodge Grand Caravan Sport. Used blue LEDs as the panel has a light blue tint and used clear (white) incandescent bulbs. The blue LED color is much stronger, more colorful. However, overall illumination is uneven as there are "hot spots" on the display and areas with little illumination. The panel uses 8 bulbs but the beam from the original incandescent bulbs had much greater coverage than the 120 degree beam of these LEDs. Note: These bulbs must be installed in the proper orientation. Although there are 2 possible positions, only one will allow the bulb to properly power up. There was a white dot near one of the bulb terminals to indicate polarity. Not sure whether the dot indicated positive or negative but after determining which position was good for one bulb, all bulbs were installed similarly. I used an electrical tester on the panel itself to establish the polarity of each socket relative to the one that worked successfully.

LED Light Staff Response

Ken,
Thanks for taking the time to write a review. In applications where where you need the light more evenly spread I would suggest using the 74-xHP3 bulb in your existing sockets or it can also be used in the T1.5 bulbs socket.

Was this review helpful?
160

  • Name
    James
  • Technical Level
    Advanced
  • Part Number
    T1.5-AHP
  • Reviewed On
    03/19/13

Amazingly Bright and Clean

I bought these LEDs for my 2002 GMC Yukon for indicators such as brights are on, cruise is on, and left/right turn signals. I am deeply impressed with how bright they are and how clean they look. Thank you Superbrightleds for giving me the perfect bulbs at an affordable price!!! I am one very satisfied customer!!!





I

Was this review helpful?
82

  • Name
    -lance
  • Technical Level
    Average
  • Part Number
    T1.5-AHP
  • Reviewed On
    03/19/13

Excellent Blue

I used these on my WJ Dash turn indicators and Temp Control (except the buttons which they don't fit). I was amazed at how great they look and how bright they are. I would definitely recommend these. *they are much brighter than the stock bulbs so when you dim the dash, these are still quite bright at even the lowest setting.*

Was this review helpful?
93

  • Name
    Paul
  • Technical Level
    Average
  • Part Number
    T1.5-AHP
  • Reviewed On
    06/06/13

lil bugger is bright!

Works just how I hoped. Fit was perfect, great product!

Was this review helpful?
62
