Product Details

  • Built-In Junction Box
  • Class 2 Power Supply
  • Aluminum Enclosure
  • Weatherproof
  • Compatible with TRIAC dimmers
  • 5260mA Output
  • Pigtail Connection
Select Power Cord:
With Power CordWithout Power Cord
Discontinued
In Stock
Starting at $99.95 ea.
Volume price as low as $74.96
Orders Ship Today!  2 Hours and 30 Minutes remaining
Notes
  • Select options to see various notes.

Overview

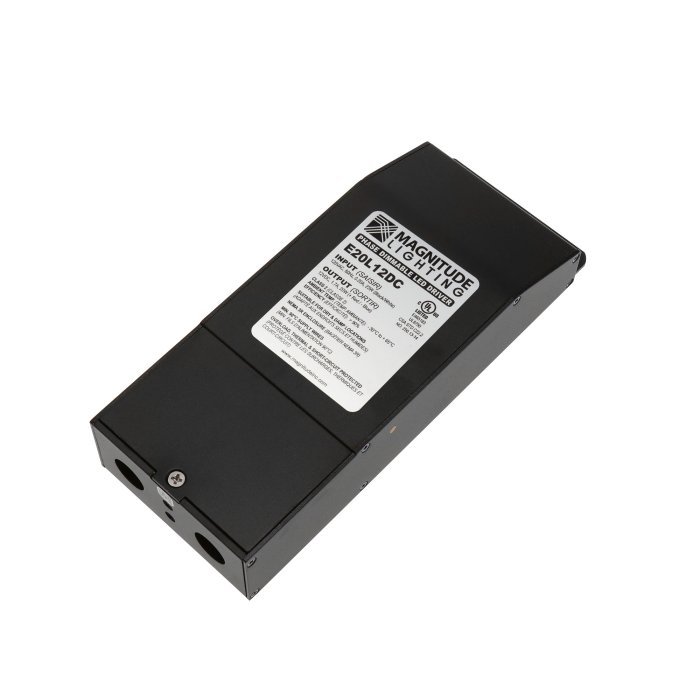

The compact Magnitude dimmable LED driver with built-in junction box is class-2 rated and has a maximum load of 60 watts. The 12-volt driver is encased in a low-profile aluminum enclosure to enable easy installation for cabinet lighting, under-cabinet lighting, cove lighting, bookshelf lighting, showcase lighting, cupboard lighting, or for other applications where space is limited. Includes 2 knock-outs for easy wire access as well as auto reset, over-current, and short-circuit protection. Efficiency of 90% and above allows the driver to operate at low temperatures. Compatible with TRIAC dimmers.

5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. If the same product is no longer available, a product of equal value may be substituted. Read More
UL Listed
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Magnitude series
5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. If the same product is no longer available, a product of equal value may be substituted. Read More
UL Listed
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Magnitude series

Specifications

Built-in PFC Function No
Connection Type Pigtail
Dimensions
Dimmable Yes
Dimming Control[1] External TRIAC
IP Rating Weatherproof
Input Voltage 120 VAC
Operating Temperature -20~+70 °C
Output Rated Current 5260mA
Output Voltage DC 12 VDC
Power Supply Type Enclosed, NEC Class 2
Special Features Dimmable
Standards And Certifications UL Listed
Type Power Supplies
UL File Number E465183
Volts 12 VDC
Watts 60 Watts

Package Weight: 1lb 8oz (0.68kg)
Package Dimensions: 9" (23cm) x 3" (8cm) x 2" (5cm)
In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable. All specifications are subject to change without notice.
1. TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton.

Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application.

Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned.

1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs.

0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply—dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.
Swipe left to see additional specifications
ImagePart NODimensionsOutput ChannelsInput Voltage ACInput Frequency RangeEfficiencyTotal Wire LengthUL Compliance NumberDocumentationPrice
E60L12DC-KO--------$99.95
E60L12DC-KO(POWERCORD)--------$104.90
ExL12DC-KO - Magnitude Dimmable LED Driver - Compact - 12 Volt
Magnitude Dimmable LED Driver - Compact - 12 Volt

Accessories & Power Supplies

Calculator

Reviews

Overall Rating

Total Reviews

1

Tell Us What You Think

Share your own experience and photos of this product. Doing so will help inform other potential buyers and allow us improve our product lines. It may take up to 72 hours for your review to appear.

Sign In Required to Write a Review
Click here to sign in to your account
  • Name
    Alexander
  • Technical Level
    Average
  • Part Number
    E60L12DC-KO
  • Reviewed On
    11/04/16

Great driver with convenient dimming

Purchased this driver for use with three meters of NFLS-X3 LED strip for undercabinet lighting. In my application, I needed to run 12V power to multiple locations around the kitchen, so this driver's ability to be dimmed on the line voltage side rather than the DC side was super convenient. Using a plain old commercially available MLV dimmer switch, this driver made the wiring really convenient.

It also is UL-listed and a Class 2 device, and along with the built-in j-box, this setup passed my county inspection with no problems. Highly recommended.
