5mm Orange LED
- Select options to see various notes.
|10 - 99 pieces||$0.22 each|
|100 - 499 pieces||$0.19 each|
|500 - 999 pieces||$0.18 each|
|1000 - 4999 pieces||$0.17 each|
|5000 - 9999 pieces||$0.14 each|
|10000 + pieces||$0.13 each|
|For discount information or inquiring about larger quantity pricing, click here|
This product has been discontinued.
- Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. These products cannot be returned after the package has been opened.

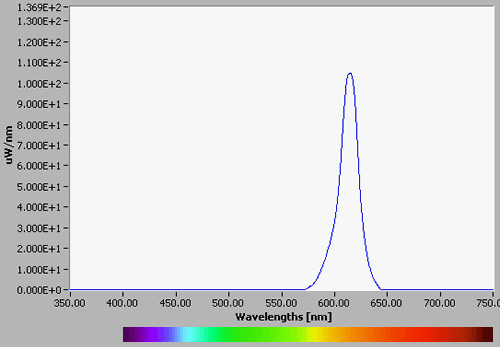

5mm through hole component LED in orange. Featuring a 5000 millicandela orange LED with a 605nm wavelength and a 15 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Here at SuperBright LEDs, we strive to provide quality LED technology, great customer service, and superior technical support to our customers for our LED and LED component products. Product number: RL5-O5015.
|Continuous Forward Current||20||Forward Voltage||2.2V|
|LED Color||Orange||LED Package||5 mm (T-1 3/4)|
|Maximum Forward Voltage||2.6V||Millicandela||5000mcd|
|Operating Temperature||-40~+85 °C||Peak Forward Current||50mA|
|Power Dissipation||100mW||Reverse Current||10µA|
|Reverse Voltage||5V||Storage Temperature||-40~+85 °C|
|Total Power Consumption||0.04 Watts||Tube Diameter||T1-3/4|
|Viewing Angle||15 degree||Wavelength||605 nm|
|Continuous Forward Current||20|
|LED Package||5 mm (T-1 3/4)|
|Maximum Forward Voltage||2.6V|
|Operating Temperature||-40~+85 °C|
|Peak Forward Current||50mA|
|Storage Temperature||-40~+85 °C|
|Total Power Consumption||0.04 Watts|
|Viewing Angle||15 degree|
Super-Orange LED (AlGalnP)|
Chip Manufacturer: TEKCORE
|absolute maximum ratings: (TA=25°C)|
|Continuous Forward Current||IF||20||mA|
|Peak Forward Current (1/10th duty cycle, 0.1ms pulse width)||IFM||50||mA|
|Reverse Current (VR=5V)||IR||10||µa|
|Lead Soldering Temperature (3mm from body) 260C (for 3 seconds)|
|View Angle of Half Power||2ø1/2||15||Degree|
|Peak Emission Wavelength||ÿP||605||nm|
