5mm Blue LED - 470 nm - T1 3/4 LED w/ 15 Degree Viewing Angle

Part Number: RL5-B5515
2 photos
Discontinued
In Stock
$0.49 ea.
Volume price as low as $0.34
Orders ship on or before  Tuesday 05/22/2018
Notes
  • Select options to see various notes.

Overview

Blue 5mm through hole LED component. Features 470nm wavelength, 5,500mcd, and a 15 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Important Notes - Please read before purchasing:
Notes
  1. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. These products cannot be returned after the package has been opened.

Specifications

Continuous Forward Current 20 mA
Forward Voltage 3.5V
LED Color Blue
LED Package 5 mm (T-1 3/4)
Lens Clear
Lumen 0.3 Lumen
Maximum Forward Voltage 4V
Millicandela 5500mcd
Operating Temperature -40~+85 °C
Peak Forward Current 50mA
Power Dissipation 120mW
Reverse Current 10µA
Reverse Voltage 5V
Storage Temperature -40~+85 °C
Total Power Consumption 0.07 Watts
Tube Diameter T1-3/4
Viewing Angle 15 degree
Wavelength 470 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
Part Number: RL5-B5515
Super-Blue LED (InGaN)
absolute maximum ratings: (TA=25°C)
PARAMETER SYMBOL Rating UNIT
Power Dissipation PD 120 mW
Continuous Forward Current IF 20 mA
Peak Forward Current (1/10th duty cycle, 0.1ms pulse width) IFM 50 mA
Reverse Voltage VR 5 V
Operating Temperature TA -40~+85 °C
Storage Temperature Tstg -40~+85 °C
Reverse Current (VR=5V) IR 10 µa
Lead Soldering Temperature (3mm from body) 260C (for 3 seconds)
Optoelectric Characteristics
PARAMETER SYMBOL MAX TYP UNIT TEST
View Angle of Half Power 2ø1/2 -- 15 Degree --
Forward Voltage VF 4 3.5 V IF=20mA
Dominant Emission Wavelength ÿD -- 467 nm IF=20mA
Full Width at Half Max FWHM -- 25.46 nm IF=20mA
Luminous Intensity IV -- 5500 mcd IF=20mA

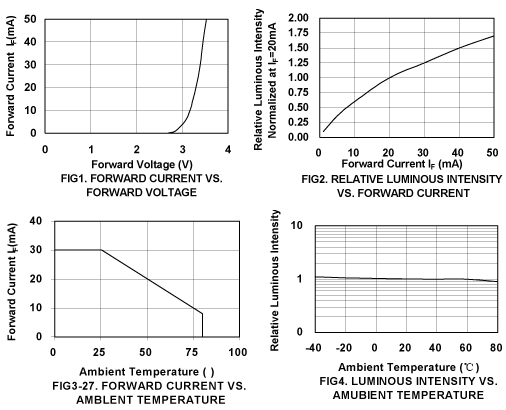

graph

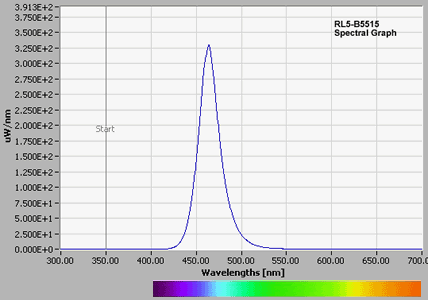

Spectral Graph
graph
graph
