MiBoxer WiFi Smart Multi Zone RGB Controller - 6 Amps/Channel - RGB Controller (Receiver)
Part Number
RGB-MZ
Overview
Universal Red/Green/Blue (RGB) LED WiFi Compatible Controller & Dimmer with out remote. Use to control up to four separate "zones" of RGB LED strips that will be linked and controlled by one or several wireless remotes or smartphones with the Wi-Fi LED Controller Gateway. Synchronization function allows a single remote to operate one or multiple controllers (User configurable). Maximum load is 6 amps per channel, 24 amps total. Must be paired with Wi-Fi LED Controller Gateway (WIFI-CON -- Sold separately) for adjusting all controller functions using a Smartphone or tablet running Android or iOS using the free MiLight 3.0 app.
Documents
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
MiBoxer Smart Ecosystem
Smartphone or Tablet
MiBoxer WiFi Controller
MiBoxer Smart Ecosystem
Bring smart lighting to your home or business with the complete line of MiBoxer products. A single WiFi Hub connects to the MiBoxer app, allowing you to control groups of lights both inside and outside from the convenient location of your smartphone or tablet. MiBoxer, previously known as MiLight, has been updated with new features including voice control, and works seamlessly with all previous MiLight devices.
- Control multiple lights remotely to emit thousands of color or white options. Customize the brightness, saturation, and color-changing modes. Schedule lights to turn on and off with the scheduled timer.
- With the app's linking feature, you can group lights and controllers to specific zones to manage multiple devices at a time.
- Third party voice capabilities allow you to control your lights hands-free, using Amazon Alexa or Google Assistant.
MiBoxer Remote Ecosystem
MiBoxer Remote Ecosystem
Use this wireless RF remote with Waterproof RGB or MiLight/MiBoxer RGB or RGBW controllers for LED strip light operation or with compatible LED smart bulbs and RGBW flood lights. Select pure white or use the touch-activated color-selection wheel to choose from thousands of color options. Control speed, brightness, and dynamic or static color modes from up to 98' away in the open air. The remote also has 4 zone-control buttons for lights in different areas.
Specifications
| Amps | 18 Amps |
|---|---|
| Amps Per Channel | 6 Amps/CH |
| Certifications/Compliance | FCC |
| Channels | 3 Channels |
| Control Type | Handheld (RF) Remote, Smartphone (Bluetooth) |
| Input Connection Type | Screw Terminal |
| Manufacturer Part Number | FUT037 |
| Radio Frequency | 2.4 GHZ |
| Supported Smart Phone Apps | MiBoxer |
| Voltage | 12-24 VDC |
| Warranty | 2 Year |
Remote & Installation Instructions
Wireless Remote
1. Master On(-)/Off(O)
A master On(-)/Off(O) control for all zone-linked RGB(W) light strips. Also activates the “Master” function, which allows the remote to control the RGB(W) light strips of all zones. If a zone is currently active, pressing the master On(-) button restores the "Master" function to the remote.
A master On(-)/Off(O) control for all zone-linked RGB(W) light strips. Also activates the “Master” function, which allows the remote to control the RGB(W) light strips of all zones. If a zone is currently active, pressing the master On(-) button restores the "Master" function to the remote.
2. Color Selection Ring
Directly selects color along a circular spectrum. To obtain white light only, keep the “Zone On” (|) button depressed until the light changes to a steady bright white.
Directly selects color along a circular spectrum. To obtain white light only, keep the “Zone On” (|) button depressed until the light changes to a steady bright white.
3. Selection LED Indicator
Flashes once to indicate when a command has been selected.
Flashes once to indicate when a command has been selected.
4. Brightness Touch Slider - Increase(Right Side)/Decrease(Left Side)
Increases(right side) or decreases(left side) the brightness level. Changing the active mode resets the brightness level to full.
Increases(right side) or decreases(left side) the brightness level. Changing the active mode resets the brightness level to full.
5. Mode Start/Scroll(M)
Modes feature different color combinations, light transitions, and patterns, with 9 distinct modes. This button initiates the Mode function and scrolls through the modes in ascending order.
Modes feature different color combinations, light transitions, and patterns, with 9 distinct modes. This button initiates the Mode function and scrolls through the modes in ascending order.
6. Mode Speed - Increase(S+)/Decrease(S-)
Increases (S+)/decreases(S-) the tempo of the mode pattern currently active
Increases (S+)/decreases(S-) the tempo of the mode pattern currently active
7. Zone On(|)/Off(O) - Zones 1-4
Allows up to four “zones” (i.e. channels) of RGB(W) light strips to be separately linked and controlled by the remote. Pressing one of the Zone On(|) buttons activates that zone; commands will affect only lights in that zone. Once linked to a zone, lights remain linked until they are unlinked. Steadily depressing the Zone On(|) button restores the lights in that zone to white.
Allows up to four “zones” (i.e. channels) of RGB(W) light strips to be separately linked and controlled by the remote. Pressing one of the Zone On(|) buttons activates that zone; commands will affect only lights in that zone. Once linked to a zone, lights remain linked until they are unlinked. Steadily depressing the Zone On(|) button restores the lights in that zone to white.
Modes List
| Mode | Description | |
| 1 | RBGW Fade In/Out | Red, green, blue and white fade in/out in a set cycle. |
| 2 | Color Flash | Red, green, blue, white, purple and yellow flash in. |
| 3 | Disco | Red, green, blue, white, purple and yellow cycle in rotation with flashing transitions. |
| 4 | Red Fade In and Flash | Red brightens to full brightness, then flashes 3 times. |
| 5 | Green Fade In and Flash | Green brightens to full brightness, then flashes 3 times. |
| 6 | Blue Fade In and Flash | Blue brightens to full brightness, then flashes 3 times. |
| 7 | Color Fade In/Out and Flash | Multiple colors fade in/out and then flash randomly. |
| 8 | 3 Color Change with Fade In/Out | Multiple colors cycle with 3 smooth color changes followed by fade in/out. |
| 9 | White Fade In/Out | White flashes continuously. |
Set-Up Instructions
Remote
- Install 2 AAA batteries (not included) in the wireless remote.
Controller
- Make sure power to the controller is disconnected.

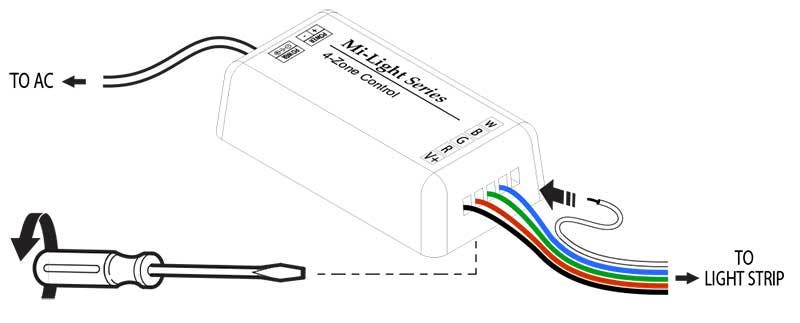

- Using a small flathead screwdriver, loosen the five clamp screws on the underside of the controller.
- Matching light strip wires to the labeled slots on the end of the controller, insert wires and tighten clamp screws, as shown below.
- Turn power on and wait until RGB(W) light strip illuminates. If no illumination occurs, check light strips and wiring connections.
- The RGB(W) light strip is ready for linking to the wireless remote.
Safety
- DO NOT use with wall dimmers, relays or other control circuits.
- DO NOT install with power applied to controller.
- DO NOT expose the remote or controller to direct or indirect moisture.
Linking Lights to Remote Zones
RGB(W) light strips are controlled exclusively by the multi-zone RF remote via the controller.
Linking a Light to a Remote1. Switch off the main power supply to the light.
2. Restore power and within 3 seconds, choosing one of the "Zone On" (|) buttons, depress the button until the light begins flashing. It will flash white 2 times, indicating that the light is now linked to that numbered zone and can be controlled via the remote.
Activating a Zone
To activate a specific zone, depress the "Zone On" (|) button. The zone is now active and remote
commands will only affect lights linked to that zone.
Unlinking a Light to the Remote
- Determine which zone the light is linked to. This can be done by testing the Zone On/Off controls for each zone on the remote.
- Switch off the main power supply to the light.
- Restore power and within 3 seconds, depress one of the "Zone On" (|) buttons until the light flashes 10 times, indicating that the light has been unlinked.
An unlimited number of RGB(W) light strips can be linked to a zone. All the lights linked to that zone will display the commands entered on the wireless remote. Conversely, a single
RGB(W) light strip can be linked to multiple remotes. When the light is unlinked, it will be unlinked to all remotes.
Note: The wireless remote operates using radio frequency. The remote controller’s use is not restricted by normal obstructions such as walls, doors, etc. Once programmed they can
be installed anywhere in range of the remote (up to 65 ft. or 20m).
