MaxLite 8" LED Recessed Commercial Downlight - Selectable CCT and Wattage - Dimmable - Up To 2,000 Lumens - 3000K / 3500K / 4000K - 14W / 17W / 20W

MaxLite 8" LED Recessed Universal Downlight - Selectable CCT and Wattage - Dimmable - Up To 2,000 Lumens - 3000K / 3500K / 4000K - 14W / 17W / 20W

brand logo
Part Number
RCF814WCSDW

Features

  • Selectable CCT and Wattage
  • Mounts directly into ceiling, no housing required
  • 0-10V dimming
  • IC Rated
  • ENERGY STAR certified
View more details
In Stock
$69.99 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Overview

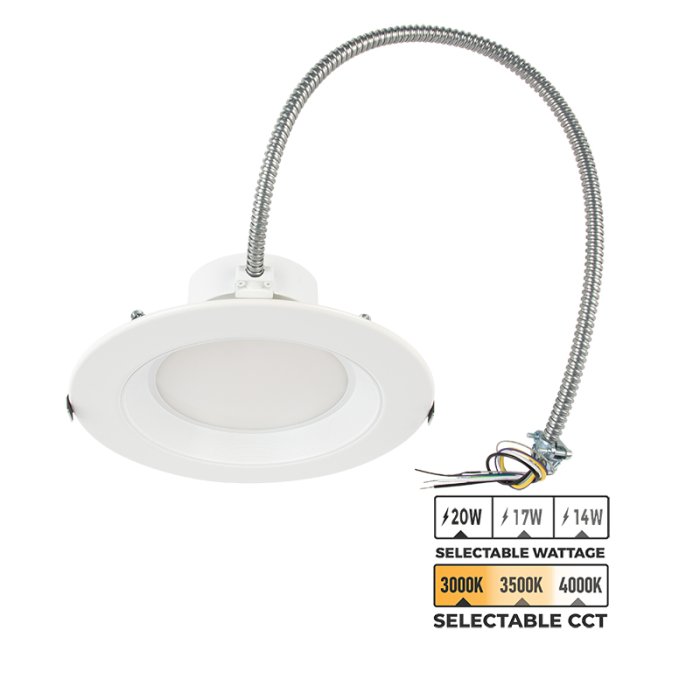

The MaxLite 8" LED Recessed Universal Downlight is an economical, all-in-one solution for adding recessed downlighting to hospitality, retail, office and other commercial lighting applications. It is both wattage and CCT selectable, allowing for easy, on-the-job customization. The downlight is designed with an integral whip which connects directly to a junction box (existing or independently mounted) and an integral driver that eliminates the need for a traditional recessed housing, saving installers time and money. Easy to install in new construction, remodel and retrofit projects, the downlight has a slim body that fits into shallow ceilings. Its white baffle trim blends seamlessly into interiors and reduces glare for soft, eye-pleasing illumination.
Product Details:
  • Die-cast aluminum housing and plastic lens
  • 0-10V dimming
  • Comes standard with 24” power whip
  • 120-347 VAC
  • ENERGY STAR certified
  • ETL listed as a fixture; ETL Classified as a retrofit
  • 5-Year warranty
ETL Listed
ETL Listed
ETL Classified
ETL Classified
Energy Star
Energy Star
5 Years
5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
The Environmental Protection Agency's (EPA) ENERGY STAR program was designed to set a standard for energy efficiency, to reduce pollutants and greenhouse gas, and to help consumers make educated product purchasing decisions. Products with an ENERGY STAR label are tested in EPA-recognized laboratories and meet ENERGY STAR product specification requirements. They are designed to reduce energy costs and serve their purpose without a lack of efficacy and features.
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
luxiflux tool image

Incorporate this product in your next project by using our Lighting Layout Tool.

Try it now
Use as a guide only—values are based on our own in-house testing. Contact us for additional information or to discuss your lighting needs.

Specifications

Ambient Operating Temperature -20~+40 °C (-4~+104 °F)
Beam Angle 106°
Brand MaxLite
CCT Value 3500K, 4000K, 5000K
Certifications/Compliance Energy Star, ETL Classified, ETL Listed
CRI 80+
Current Draw 117/142/167 mA @ 120 VAC, 51/61/72 mA @ 277 VAC
Dimmable Yes
Dimming Type 0-10V
Efficacy 100 lm/W
Environmental Rating Non-weatherproof, Suitable for Damp Locations
Finish White
Input Connection Type Pigtail
Integrated Surge Protection 2 kV
IP Rating IP40
LED Color Cool White, Natural White, Warm White, Selectable CCT
Lens Color Frosted
Lens Type Polycarbonate
Intensity 1400 Lumens, 1700 Lumens, 2000 Lumens
Operating Voltage 120-347 VAC
Power Consumption 14 Watts, 17 Watts, 20 Watts
Power Factor ≥0.9
Product Materials Aluminum, Polycarbonate
Product Weight 1.8 lb (0.8 kg)
Rated Life (L70) 50000 Hours
Warranty 5 Year
Wire Gauge 18 AWG (L/N/G), 24 AWG (dimming)
