Linear LED Light Bar Fixture - 100 lm/ft
Part Number:
EGLB-x
Manufacturer Part Number:
$16.99
ea.
Was
Clearance
Similar Products Available Today
Ask About This Product
Get instant AI-powered answers
Try asking:
Most Popular Compatible Products
Overview
LuxBar Linear LED Light Bars are an extremely versatile solution for both automotive and indoor lighting needs such as cabinet lighting, under-cabinet lighting, interior vehicle lighting, bookshelf lighting, police/emergency vehicle task lighting, footwell lights, and trunk/cargo lights. The aluminum fixtures are available in 18", 35", or 44" lengths, and the LED light bars deliver smooth, flawless illumination with out visible bulbs or hot spots. Each light bar fixture has powerful 3014 SMD LEDs that emit up to 360 lumens of natural white, cool white, red, green, or blue illumination. And with a CRI (color rendering index) of 84, light from this LED fixture will represent the true color of any object or surrounding. Each extruded aluminum light bar has screw mounting tabs on both ends and is equipped with a plug-and-play CPS connector. The non-weatherproof LED light bar fixture operates with in a 9-14.5 VDC range to match your car's electrical system.
Documents
EGLB-x Specification Sheet Applications:
- Bookshelves
- Cabinets
- Cargo Lighting
- Display Cases
- Emergency Vehicles
- Footwells
- Trade Shows
- Trunk Lights
- Under-Cabinets
- Vehicle Interiors
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
| Dimmable | Yes |
| Dimmer Type | PWM |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof |
| Finish | Black |
| Input Connection Type | 5.5 mm x 2.1 mm DC Barrel |
|
IP Rating
IP Rating
 |
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
160° |
| LED Lifetime | 50000 Hours |
| Operating Voltage | 12 VDC |
| Strip Width | 10mm (0.39in) |
| Wire Length | 10 in. |
| Part NO |
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
LED Color | Wavelength | Length | Lumens Per Foot | Wattage | Wattage per Foot |
|---|---|---|---|---|---|---|---|
| EGLB-B44 | 700 mA | Blue | 461 nm | 44.1 in. (3.7 ft) | 16 lm/ft | 10 Watts | 2.6 W/ft |
| EGLB-G18 | 300 mA | Green | 515 nm | 18 in. (1.5 ft) | 67 lm/ft | 4 Watts | 2.7 W/ft |
| EGLB-G35 | 550 mA | Green | 515 nm | 35 in. (2.92 ft) | 65 lm/ft | 7 Watts | 2.5 W/ft |
| EGLB-G44 | 680 mA | Green | 515 nm | 44.1 in. (3.7 ft) | 65 lm/ft | 9 Watts | 2.5 W/ft |

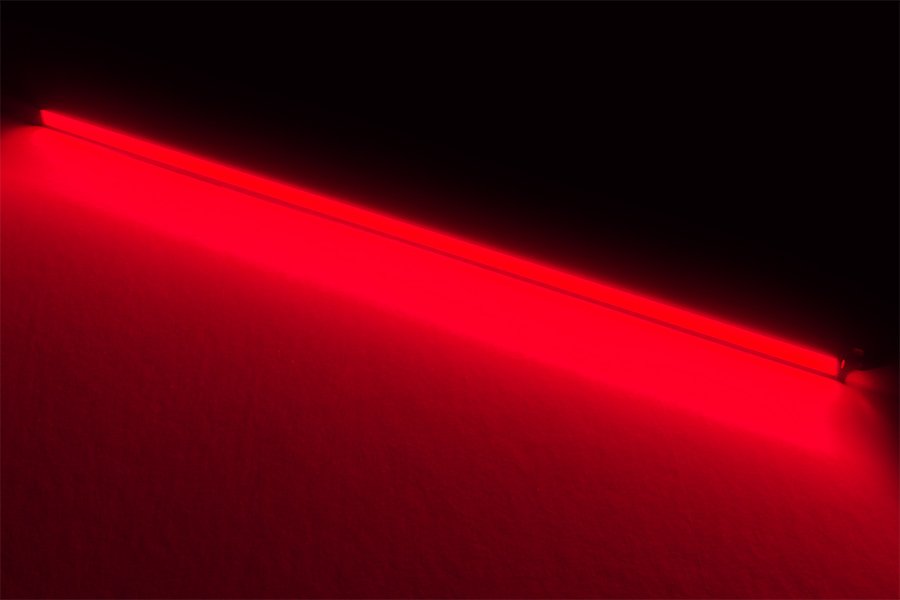

| EGLB-R18 | 270 mA | Red | 632 nm | 18 in. (1.5 ft) | 31 lm/ft | 4 Watts | 2.4 W/ft |
