5m White LED Strip Light - Highlight Series Tape Light - Triple Row - 24V - IP20
Part Number:
HL-IP20-80CRI-5m-TripleRow
Manufacturer Part Number:
$194.99
ea.
Was
In Stock
Similar Products Available Today
Features
- 3 rows of 2835 LEDs - 1158 lumens/ft for maximum brightness
- Field cuttable every 2"
- 0-100% dimmable
- 3M™ adhesive backing
- 5 year warranty, UL Listed
Ask About This Product
Get instant AI-powered answers
Try asking:
Frequently Bought Together
Total Price:
Loading...
Most Popular Compatible Products
Overview

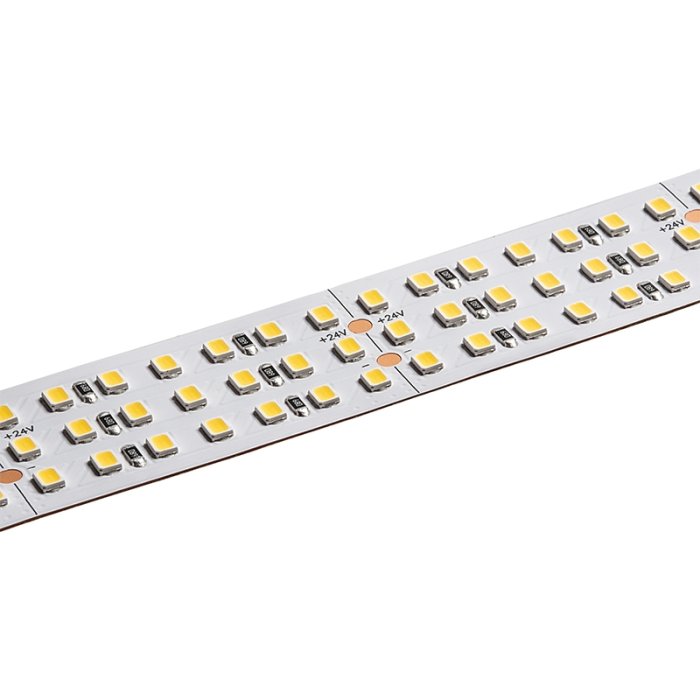

Highlight Series White LED Strip Light has three rows of 2835 LEDs producing 1158 lumens per foot for maximum light output. The high density of 128 LEDs per foot creates a smooth, powerful line of illumination. The strip is easy to dim for desired brightness with a compatible controller (sold separately). Triple-row strips can be cut into 2-inch segments or used as a continuous run up to 16.4'. Flexible construction and 3M™ adhesive backing make it easy to install for various applications.
Please note: Due to the greater brightness of these strips, heat sinking is recommended for proper thermal management and preserved LED lifespan. Pair with compatible KLUS aluminum channel for a complete light design package and optimized strip performance.
Please note: Due to the greater brightness of these strips, heat sinking is recommended for proper thermal management and preserved LED lifespan. Pair with compatible KLUS aluminum channel for a complete light design package and optimized strip performance.
Product Details:
- 24 VDC input
- Max Run: 8.2 ft (2.5 m)
- 21 LEDs/segment
- Segment Length: 1.97 in. (50 mm)
- Density: 128 LEDs/ft
- Strip Width: 25 mm (0.98 in.)
- Dimmable: 0-100%
- IP20 rated for dry conditions
- 50,000 hour L70 lifespan
- UL Listed
- 5-year warranty
HL-IP20-80CRI-5m-TripleRow Specification Sheet
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
LED Strip Lights FAQs
What is color temperature? Which one is best?
What LED strip light accessories do I need?
The only thing you need for certain to power a strip light is a power supply. We offer accessories used for installation, such as connectors and aluminum mounting channels. As well as others that add functionality such as such as dimmers, switches, and remote controls. Complete kits are also offered which include everything you need to get started.
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Certifications/Compliance | CE, UL Listed |
|---|---|
| CRI | 80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
7.9 A |
| Dimmable | Yes |
| Dimmer Type | PWM |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Density | 128 LEDs/ft |
| LED Chip Type | 2835 SMD |
| LEDs per Segment | 21 |
| Length | 16.4 ft (5 m) |
| LED Lifetime | 50000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.   |
8.2 ft (2.5 m) |
| Minimum Cut Length | 50mm (1.97in) |
| Operating Voltage | 24 VDC |
| Series | HighLight |
| Strip Width | 25mm (0.98in) |
| Wattage | 190 Watts |
| Wattage per Foot | 11.6 W/ft |
| Wire Length | 19.2 in. |
| Part NO | Ambient Operating Temperature |
Color Temperature
Color Temperature
 Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
Efficacy | LED Color | Lumens Per Foot |
|---|---|---|---|---|---|---|
| STN-A30K80-C21A-25N5M-24V | -20 to 45 °C (-4 to 113 °F) | 3000K | 483mA | 105 lm/W | Warm 3000K | 1158 lm/ft |
| STN-B-A40K80-C21A-25N5M-24V | -20 to 60 °C (-4 to 140 °F) | 4000K | 485mA | 115 lm/W | Natural 4000K | 1500 lm/ft |
| STN-B-A50K80-C21A-25N5M-24V | -20 to 60 °C (-4 to 140 °F) | 5000K | 485mA | 115 lm/W | Cool 5000K | 1500 lm/ft |
| STN-B-A65K80-C21A-25N5M-24V | -20 to 60 °C (-4 to 140 °F) | 6500K | 485mA | 115 lm/W | Cool 6500K | 1500 lm/ft |
