LED Interior Dome Light with Switch - Door Switch Compatible - 5-1/2" Round - 3000K / 4000K
Part Number:
TDLS-xK24
Manufacturer Part Number:
Starting at
$11.99
ea.
Starting at
Was
In Stock
Features
- Low profile design
- Provides task lighting for low voltage settings
- Protects against moist climates
- Built-in switch for on/off and door light
- Lifetime warranty
Overview

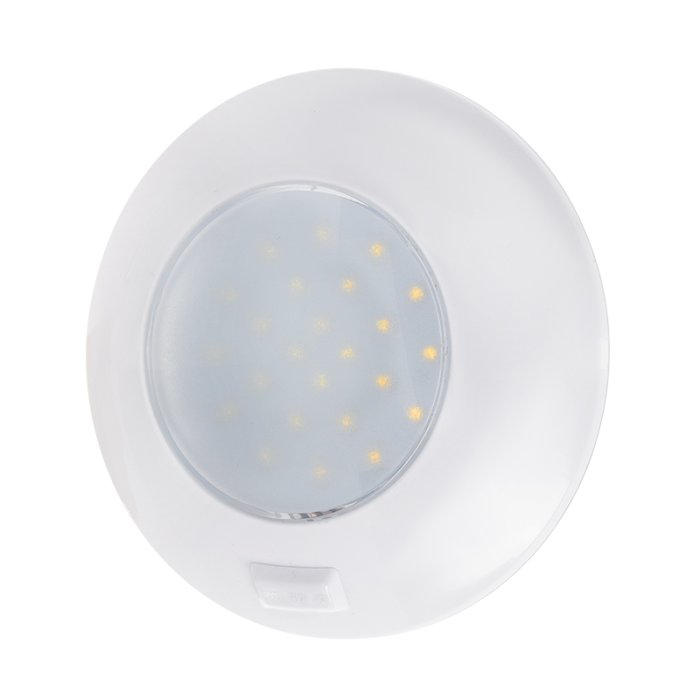

with the perfect amount of illumination for trailers, RVs, or boat cabins, TDL series 5.5” Round LED Dome Light maintains a low profile frame. While clear dome polycarbonate lens distributes light and protects LEDs, white ABS housing gives the surface mount fixture a clean finish. Power switch can be operated manually or with a door switch for convenient task lighting.
Product Details:
- Includes 14” pigtail connection
- Mounting screws included
- Rated IP67 for wet conditions
- 12-28 VDC
Applications:
- Boats and Marine
- Campers
- RV Lights
- RV Storage Compartments
- RV/Truck/Car Dome Lights
- Trailers
- Trucks
- Vans
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
|---|---|
| Brand | Super Bright LEDs |
| Certifications/Compliance | CE |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
400 mA |
| Finish | White |
| Input Connection Type | Pigtail |
| Input Voltage | 12-28 VDC |
|
IP Rating
IP Rating
|
IP67 |
| LED Quantity | 24 |
| LED Type | 5050 SMD |
| Lumens | 470 Lumens |
| Mount Type | Surface Mount |
| Product Materials | ABS, Polycarbonate Lens |
| Warranty | Lifetime |
| Wattage | 4.8 Watts |
| Part NO | Color Temperature | LED Color | Series |
|---|---|---|---|
| TDLS-30K24 | 3000K | Warm 3000K | |
| TDLS-40K24 | 4000K | Natural 4000K |
