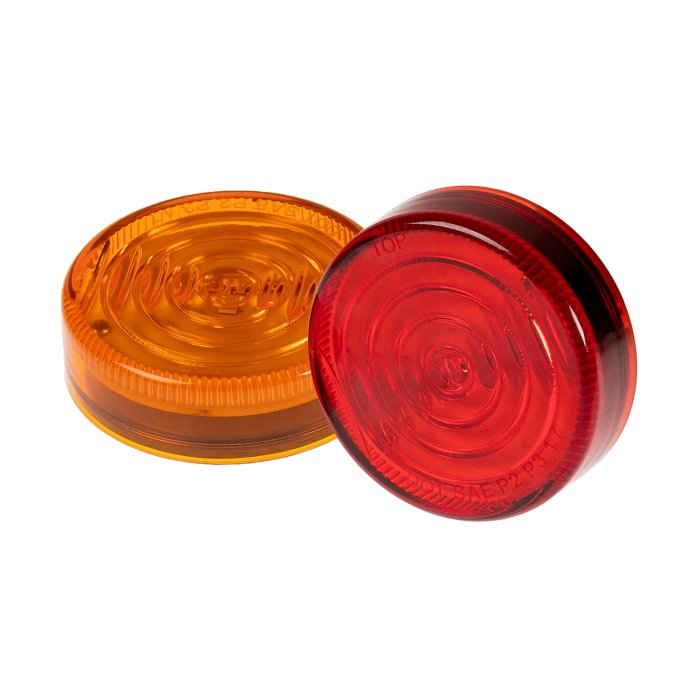

LED Clearance or Side Marker Light - Submersible - 2" Round - 1 LED
Part Number:
M5-x1
Manufacturer Part Number:
Starting at
$3.99
ea.
Starting at
Was
In Stock
Features
- 2” Round light provides clearance or side marker functions
- Unique lens design for target-like appearance
- DOT Compliant
- IP67-rated waterproof sealed construction
- Recessed mount with grommet (sold separately)
- Accepts standard 2-pin PL-10 plug (sold separately)
- Lifetime warranty
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview
Boost visibility and safety with this LED clearance marker light. Its sealed polycarbonate body is waterproof, shatterproof, and built to last. Flush mounting with compatible grommet or flange (sold separately). This product is backed by a lifetime warranty.
h3>Product Details:<.h3>
- Plug-and-play installation
- Compact, space-saving design
- 12 VDC input
- 50mA current draw
- Lifetime exceeds 60000 hours
- SAE P2P3 compliant and DOT compliant
Applications:
- Emergency Vehicles
- Flatbed Trucks
- RVs and Motorhomes
- Semi-Trucks
- Show Trucks
- Tow Truck Lights
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures—such as headlights and taillights—that have a DOT compliance mark are legal, safe, and considered to provide suitable illumination for street use when properly installed.
Specifications
| Ambient Operating Temperature | -40 to 65 °C (-40 to 149 °F) |
|---|---|
| Brand | Super Bright LEDs |
| Certifications/Compliance | CE, DOT Compliant |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
50 mA |
| Diameter | 2 in |
| DOT Standard | FMVSS 108 |
|
FMVSS Code
FMVSS Code
|
P2, P3 |
| Input Connection Type | 2-Pin (PL-10) |
| Input Voltage | 12 VDC |
|
IP Rating
IP Rating
|
IP67 |
| LED Quantity | 1 |
| Mount Type | Recessed Mount |
| PC Rating | P2 |
| Product Materials | Polycarbonate |
| Warranty | Lifetime |
| Wattage | 0.6 Watts |
