40W 2x2 LED Flat Panel Light with Keilton ECO Sensor - Selectable and Tunable CCT - Up to 4,520 Lumens - 4-Pack
Part Number:
LPDBL-M1-22-TW3C-SP40BLE
Manufacturer Part Number:
$259.99
per Pack
Was
In Stock
Similar Products Available Today
Features
- Integrated ECO sensor creates Networked Lighting Controls (NLC) with Bluetooth MESH
- Control a network of lights using the App
- Up to 100 light fixtures allowed on one network
- Select CCT from a range of tunable whites or from pre-stored selectable CCT's
- Equivalent to 3-lamp 17W T8 tube fixture
See our full selection of Networked Controlled Lighting.
View more details
Ask About This Product
Get instant AI-powered answers
Try asking:
Frequently Bought Together
Total Price:
Loading...
Most Popular Compatible Products
LED Flat Panel Light with Bluetooth MESH Sensor

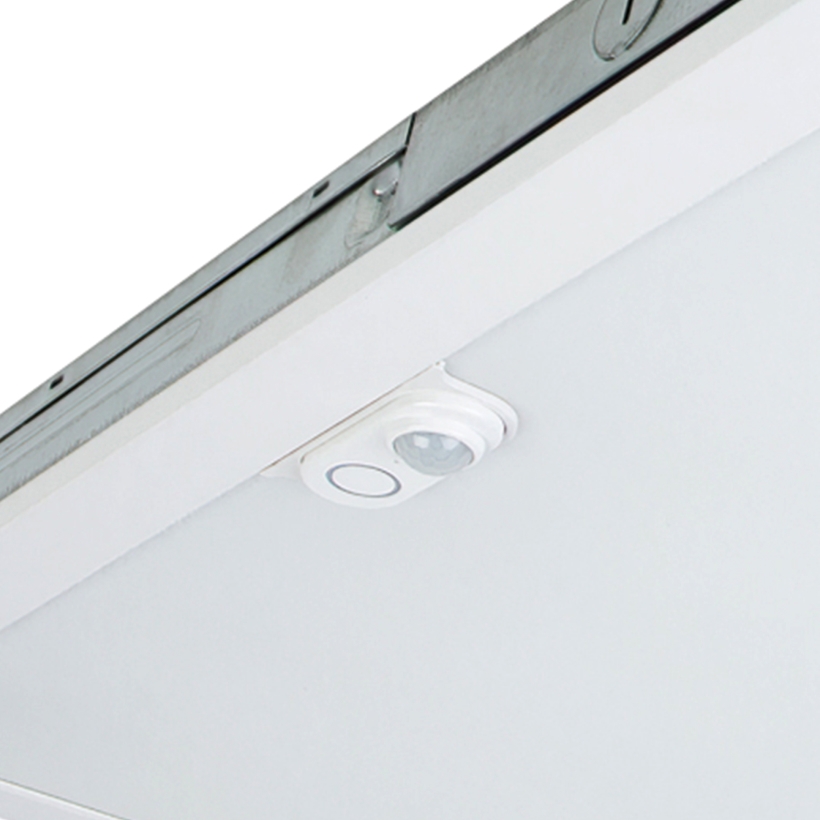

Integrated Sensor
Integrated Bluetooth PIR motion sensors enable each light to wirelessly connect, forming a seamless Bluetooth MESH network.
App Controlled
Control all of your lights with the ® Network Lighting Control APP. Set Schedules, create Zones, Groups, Scenes, adjust brightness levels and fine tune your CCT, all done through your mobile device.
Gold Level UL 1376 IoT Security Rating
With a Gold Level UL 1376 IoT Security Rating, you can rest assured that your network is safeguarded against any external cybersecurity threats.
Overview

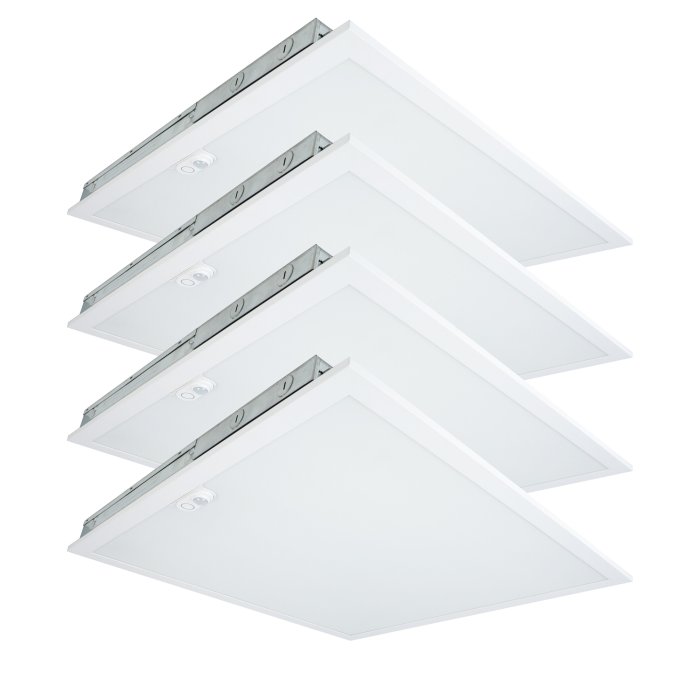

The 2x2 LED Flat Panel Light features a low profile, white steel housing, and a frosted lens. These are equivalent to a traditional 3-lamp 17W T8 tube fixture and can be easily installed in a t -grid drop ceiling (optional surface mount available). Each 40W panel delivers up to 4,520 lumens and has an integrated ECO sensor, which functions as a PIR and a daylight harvesting sensor. Within the app, select the desired CCT from preset color temperatures (3000K, 3500K, 4000K, and 5000K) or select the CCT from a range of tunable whites (2700K-6500K). Using Bluetooth MESH, these sensors allow similarly equipped lights to communicate on the same network and can be controlled from a single device. Up to 100 lights can be controlled with the App or with the wall switch. Each panel light is Gold-level rated for protected data transmission, storage, and app security. Suitable for damp locations, they work best in hospitals, hotels, or office buildings. Only sold in 4-packs. Also available as a 2x4.
Product Details:
- Steel housing with white frame and frosted polystyrene lens
- Gold Level UL 1376 IoT Security Rating
- Suitable for damp locations
- 120-277 VAC
- Certified by UL
- DLC 5.1 Standard
- 5-year warranty
Documents
LPDBL-M1-22-TW3C-SP40BLE IES File
LPDBL-M1-22-TW3C-SP40BLE Photometric Data Sheet Dimensional Drawings
Applications:
- Commercial Buildings
- Hospitals
- Offices
- Panel Lights
- Retail Shops
- Schools
- Trade Shows
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
UL Solutions has created a rating system that verifies the security features of connected products. UL security experts assess products and rate them for one of five security levels, ranging from Bronze to Diamond. Each level of the UL Internet of Things (loT) security rating system represents a set of security capabilities implemented in the product by the manufacturer. See the UL loT Security Rating Levels Guide for additional information on specific levels.
IC Rated
IC (Insulation Contact) Rated An IC-rated fixture is designed to operate in direct contact with insulation material. Its rating indicates that the fixture has added thermal protection, minimizing fire hazards.
NLC
NLC - This product meets the Design Lights Consortium (DLC) requirements for interior and exterior networked lighting control (NLC) systems. For more information, see the NLC Technical Requirements on the DLC site.
Tunable White
Tunable White bulbs and strips allow users to adjust the color temperature of the light output, ranging from warm to cool white, to suit different settings and preferences. This adjustability is achieved by mixing different proportions of white LEDs with varying color temperatures within a single fixture.
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Beam Angle | 110° |
| Brand | Super Bright LEDs |
|
CCT
CCT
 |
3000K, 3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC, UL IoT Security Rating: Gold |
|
CRI
CRI
 |
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
370 mA @ 120 VAC, 160 mA @ 277 VAC |
| Dimensions | 2ft x 2ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
Bluetooth |
| DLC Product ID | S-VL7XVR |
| Efficacy | 113 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 17W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 2 kV |
|
IP Rating
IP Rating
 |
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable White |
| Rated Life (L70) | 100000 Hours |
| Lumens | 4520 Lumens |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Polystyrene Lens, Steel Housing |
| Product Weight | 4.8 lb (2.2 kg) |
| UL File Number | E469515 |
| Warranty | 5 Year |
| Wattage | 40 Watts |
| Wire Gauge | 18 AWG |
