DiodeDrive 12 VDC Constant Voltage LED Power Supply - 60W / 120W / 180W / 240W / 270W


Features
- Extruded aluminum case is cooled by free air convection
- UL Recognized for Sign Lighting Applications
- 60W Power Supply is Class 2
- It operates with up to 91% efficiency
- Protections against low input voltage, output overcurrent, overvoltage, overload, short circuit, and overtemperature
Loading recommendations...
Overview

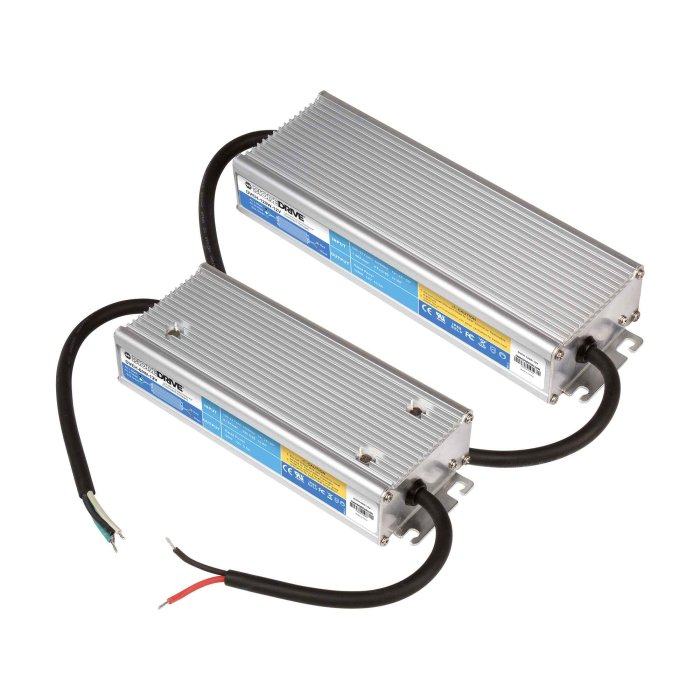

The DiodeDrive 12 VDC Constant Voltage LED Power Supply is available in 60W, 120W, 180W, 240W, or 270W versions. It features a universal 100-277 VAC input with active power factor correction for optimal efficiency. At a 100-200 VAC input the power supply has a 150W output, while the 180W, 240W, and 270W models deliver the maximum output at the 200-277 VAC input. The IP68 waterproof aluminum housing makes it ideal for outdoor use or wet locations. Protections against low input voltage, overcurrent, over-voltage, overload, short circuits, and overheating ensure reliable operation. An optional power cord allows for quick installation and repositioning without rewiring.
Product Details:
- Extruded aluminum housing with jacketed cables
- IP68 waterproof
- Non-dimmable
- Easy installation with mounting tabs
- 100-277 VAC
- Max wattage rating based on input voltage range
- Class 2 (60W)
- UL Recognized
- 5-year warranty
- Home Interiors
- Outdoor Accent Lights
- Outdoor Signs and Advertisements
- Sign Lighting
- Stage & Theaters
- Strip Lights
- Trade Shows
- Underwater Lights
- Factory Automation Equipment
- Industrial Equipment
Specifications
Ambient Operating Temperature Range | -25 to 40 °C (-13 to 104 °F) |
---|---|
Brand | DiodeDrive |
Dimming Control
Dimming Control
TRIAC Dimming: This is the most commonly recognized dimming type, with TRIAC Dimmers found in most Home Centers and hardware stores. TRIAC (TRIode for Alternating Current) dimmers operate by modifying the voltage waveform, reducing the amount of power input to the device being controlled. Reducing the input power will result in a corresponding reduction in a power supply's output voltage/current or a decrease in the lumen output of a light fixture. TRIAC dimmers come in two variations: Forward Phase and Reverse Phase
0-10V Dimming: This type of dimming control is most commonly found in commercial applications. It works by varying a voltage from 0 to 10 VDC on dedicated dimming wires. The output of a power supply or light fixture is proportional to the voltage applied. Pulse-Width Modulation (PWM) Dimming: This dimming control adjusts output by rapidly turning the output on and off at a fixed frequency. The proportion of on-time to total time sets the dimming percentage. Potentiometer Dimming: Potentiometer dimming varies the output using a variable resistor, or potentiometer, to set the dimming level. |
Non-Dimmable |
Environmental Rating
Environmental Rating
![]() |
Suitable for Wet Locations, Waterproof |
Input Connection Type | Pigtail |
Input Voltage | 100-277 VAC |
IP Rating
IP Rating
![]() |
IP68 |
Number of Outputs | 1 |
Output Connection Type | Pigtail |
Output Voltage | 12 VDC |
Warranty | 5 Year |
Part NO |
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
Output Current |
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
Wire Gauge |
---|---|---|---|---|
DVEH-120W-12V | FCC, UL Recognized | 10 A | 120 Watts | 17 AWG (Output) |
DVEH-120W-12V(POWERCORD) | FCC, UL Recognized | 10 A | 120 Watts | 17 AWG (Output) |
DVEH-180W-12V | CE, FCC, UL Recognized | 12.5 A @ 100-200 VAC, 15 A @ 200-277 VAC | 180 Watts | 14 AWG (Output) |
DVEH-180W-12V(POWERCORD) | CE, FCC, UL Recognized | 12.5 A @ 100-200 VAC, 15 A @ 200-277 VAC | 180 Watts | 14 AWG (Output) |
DVEH-240W-12V | CE, FCC, UL Recognized | 15 A @ 100-200 VAC, 20 A @ 200-277 VAC | 240 Watts | 14 AWG (Output) |
DVEH-240W-12V(POWERCORD) | CE, FCC, UL Recognized | 15 A @ 100-200 VAC, 20 A @ 200-277 VAC | 240 Watts | 14 AWG (Output) |
DVEH-300W-12V | CE, FCC, UL Recognized | 20 A @ 100-200 VAC, 22.5 A @ 200-277 VAC | 270 Watts | 14 AWG (Output) |
DVEH-300W-12V(POWERCORD) | CE, FCC, UL Recognized | 20 A @ 100-200 VAC, 22.5 A @ 200-277 VAC | 270 Watts | 14 AWG (Output) |
DVEH-60W-12V | Class 2, FCC, UL Recognized | 5 A | 60 Watts | 17 AWG (Output) |
DVEH-60W-12V(POWERCORD) | Class 2, FCC, UL Recognized | 5 A | 60 Watts | 17 AWG (Output) |
