Diode Dynamics Triple Fog Light Kit for 2021+ Ford Bronco - Sport / Pro - White / Yellow

brand logo
Part Number: DDBR-FL-x
Manufacturer Part Number:
Starting at
$869.95 ea.
In Stock
box-open-solid
truck-fast-solid
On orders $300 and up within the contiguous U.S.
Item does not qualify

Features

  • Bolt-on fitment for 2021+ Ford Bronco with steel bumper
  • Adds SAE-compliant fog lights and powerful offroad lighting
  • Harnesses for independent control of road-legal and offroad lighting
  • Highly durable powder-coated stainless steel bracket
  • Backlight feature provides amber accent light
  • Engineered and assembled in the USA
View more details

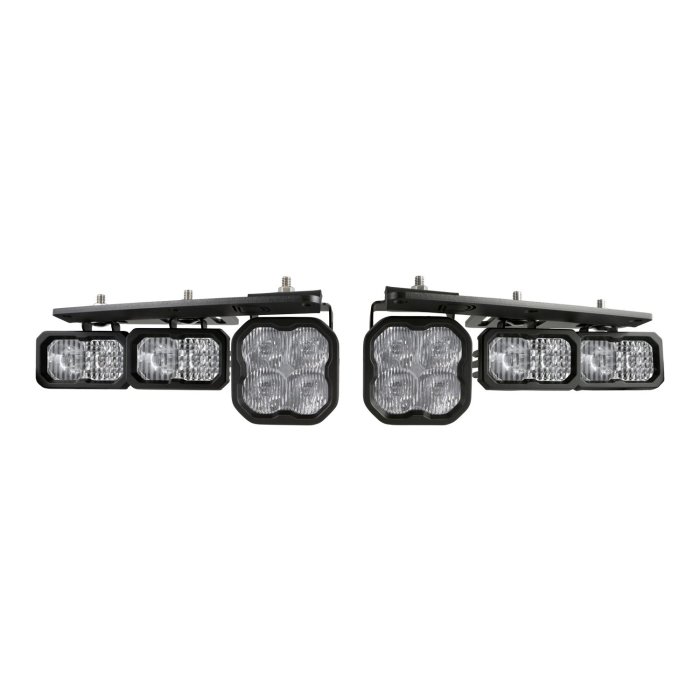

What's In The Box:
  • 2- Ford Bronco fog pocket brackets
  • 2- SS3 LED pods
  • 4- SSC2 LED pods
  • 1- dual-output fog harness
  • 1- Heavy Duty Dual Output 4-pin harness
  • 2- 3-way backlight splitters
  • 4- zip ties
  • Mounting hardware and guide

Overview

The Stage Series Fog Pocket Kit for the 2021+ Ford Bronco from Diode Dynamics adds road-legal fog lights and powerful offroad lighting. The brackets allow you to mount two SS3 LED Pods and four SSC2 LED pods in the factory bumper openings. With the included harnesses, you can easily switch between road-legal fog lights and offroad lights using your factory aux switch bank.

The kit includes two SS3 LED Pods in the SAE-compliant fog beam pattern and four SSC2 LED pods in the combo beam pattern. The combination provides ideal light output whether you are on or offroad! These lights have been extensively tested for long-term operation from -40° to 185° F, along with vibration, moisture intrusion, and corrosion testing. These tests are completed to SAE standards, just like factory components. Racers and enthusiasts have also put them to the test on-road.

With the included harnesses, the pods in this kit can be controlled independently, allowing you to switch between road-legal fog lights and offroad lights with ease. This kit was designed to allow fog pods to operate in the same way factory-installed fog lights do, automatically turning on when they are switched on and when your headlights are turned on. The kit can be controlled either through factory aux switches or the included 3-way toggle switch.

Sport or Pro This kit is available in two different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power.

SS3 SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It will fully illuminate the area in front of your vehicle. The Sport Model produces 2,262 lumens per pod light and the Pro model produces 5,796 per pod light.

SSC2 Combo pattern combines Driving and Flood optics and provides maximum visibility. It shines light downrange in a focused, rectangular 40x20-degree pattern. The combo lens features a flood optic on one side and a driving optic on the other. The Sport model produces 1,130 lumens per pod light and the Pro model produces 2,898 per pod light.

Fitment:

  • Note: The kit is incompatible with plastic bumper models.
  • Application: Fog Light
  • Make: Ford
  • Model: Bronco
  • Years: 2021, 2022, 2023
8 Years
8 Years
8 Years
8 Years
Backlit
Backlit
Backlit
Backlit
IP67
IP67
IP67
IP67
Plug & Play
Plug & Play
Plug & Play
Plug & Play
TIR Optics
TIR Optics Read More
TIR Optics
TIR Optics Read More

Specifications

Specifications
Ambient Operating Temperature -40~+85 °C (-40~+185 °F) Backlight Color Amber
Beam Pattern Fog + Driving & Flood Combo Brand Diode Dynamics
Current Draw (Sport, SS3)
Current Draw (Pro, SS3)
1.2 A @ 12 VDC, 33 mA @ 12 VDC
3 A @ 12 VDC, 33 mA @ 12 VDC
Current Draw (Sport, SSC2)
Current Draw (Pro, SSC2)
640 mA @ 12 VDC, 58 mA @ 12 VAC
2.1 A @ 12 VDC, 58 mA @ 12 VAC
Environmental Rating Waterproof Finish Black
Input Connection Type DT Connector, Blade Terminal Input Voltage 9-16 VDC
IP Rating IP67 LED Color Cool 6000K
Intensity (Sport, SS3)
Intensity (Pro, SS3)
2262 Lumens
5796 Lumens
Intensity (Sport, SSC2)
Intensity (Pro SSC2)
1130 Lumens
2898 Lumens
Materials Aluminum Housing, Polycarbonate Lens, Stainless Steel Brackets Polarity Sensitive Yes
Vehicle Location Fog Light Series Stage
Warranty 8 year
