5m RGB Single-Color COB LED Strip Light - COB Series LED Tape Light - IP20 - 24V - Red / Green / Blue

5m RGB Single-Color COB LED Strip Light - COB Series LED Tape Light - IP20 - 24V - Red / Green / Blue

brand logo
Part Number
COB2-IP20-Color-5m

Features

  • COB LEDs create seamless line of light - no visible hotspots
  • Flexible, cuttable, 3M™ adhesive-backed design for easy install
  • High density design with 146 LEDs/ft (480 LEDs/m)
  • 0-100% PWM Dimmable
View more details
In Stock
Only %1 left

$89.99 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Overview

Description

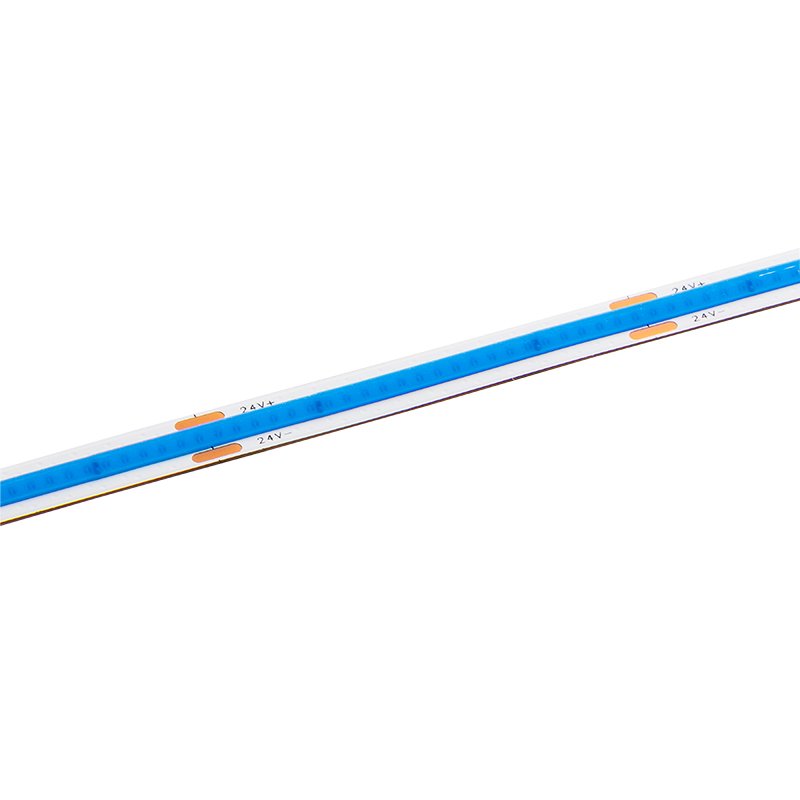

The 5m RGB Single-Color COB LED Strip Light uses chip-on-board technology to create a smooth, seamless line of light. Using a high density of LEDs, the COB strip light produces a continuous linear light without hotspots, ideal for applications on or around reflective surfaces such as granite countertops and tile floors. The strip provides vibrant red, green, or blue light to your application. Easily customize the strip using the cut segments every 1.97 inches. Flexible construction and 3M™ adhesive backing make it easy to install, including on round surfaces and edges.
Product Details:
  • 3M™ adhesive backing for surface mounting
  • Max run: 24.6 ft (7.5 m)
  • Cuttable segment length: 1.97 in. (50 mm)
  • 8mm strip width
  • PWM Dimming
  • Pigtail connection
  • 24 VDC
  • UL Listed
  • 5-year warranty

Applications

  • Accent Lighting
  • Cove Lighting
  • Displays
  • Sign Lighting
  • Stage & Theaters
  • Toe Kick Lighting
  • Trade Shows
  • Under-Cabinets
UL Listed
UL Listed
CE
CE
5 Years
5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

Specifications

Ambient Operating Temperature -20~+45 °C (-4~+113 °F)
Certifications/Compliance CE, UL Listed
Current Draw 1.7 A
Current Draw per Foot 102mA
Dimmable Yes
Environmental Rating Non-weatherproof, Suitable for Dry Locations
Finish White
Input Connection Type Pigtail
IP Rating IP20
LED Beam Angle 160°
LED Density 146 LEDs/ft
LED Type COB (chip-on-board)
LEDs per Segment 24
Light Length 16.4ft (5m)
Max Run (Class 2) Up to 24.6ft (7.5m)
Minimum Cut Length 50mm (1.97in)
Operating Voltage 24 VDC
Power Consumption 40 Watts
Rated Life (L70) 36000 Hours
Series COB
Strip Width 8mm (0.31in)
Wattage per Foot 2.4 W/ft (7.9 W/m)
Wire Gauge 22 AWG
Print Specifications
Swipe left to see additional specifications
Part NO Color/CCT
STN-BBLU-O24A-08F5M-24V Blue
STN-BGRE-O24A-08F5M-24V Green
STN-BRED-O24A-08F5M-24V Red
