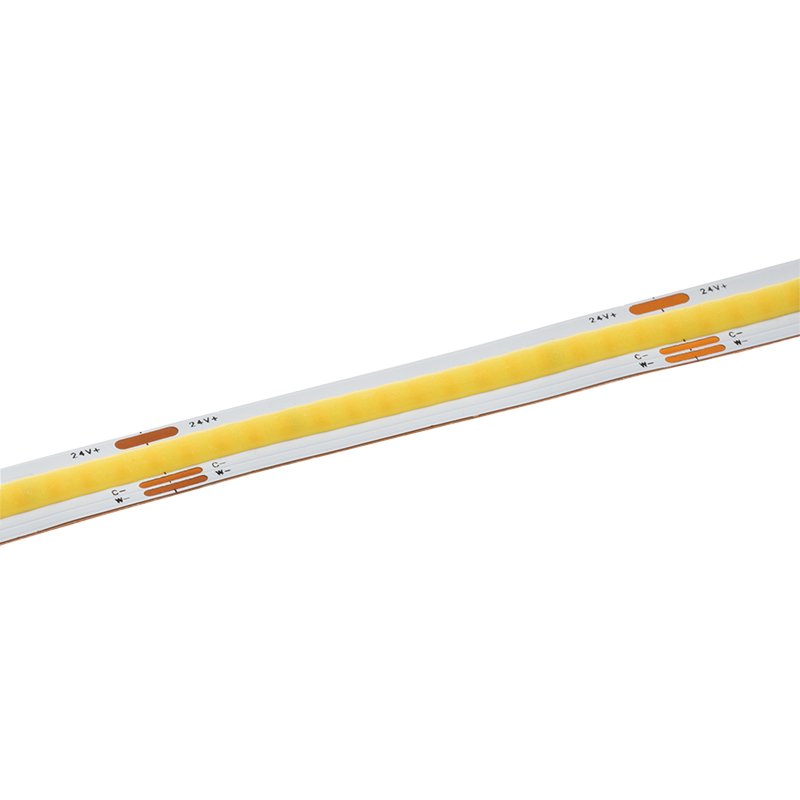

Name: 5m Tunable White COB LED Strip Light - COB Series LED Tape Light - 2700K-6500K - IP20 - 24V
Brand: Super Bright LEDs
SKU: STN-H90-O32A-10Y5M-24V
Price: 169.99 USD
Availability: InStock

Overview

The 5m Tunable White COB LED Strip Light uses chip-on-board technology to create a smooth, seamless line of light. Using a high density of LEDs, the COB strip light produces a continuous linear light without hotspots, ideal for applications on or around reflective surfaces such as granite countertops and tile floors. The strip provides up to 457 lm/ft, totaling 7,500 lumens, of tunable white light. Easily customize the strip using the cut segments every 1.97 inches. Flexible construction and 3M™ adhesive backing make it easy to install, including on round surfaces and edges. Pair with a controller (sold separately) to select from a range of cool to warm white, or changing patterns.

Product Details:

3M™ adhesive backing for surface mounting
Max run: 19.7 ft (6 m)
Cuttable segment length: 1.97 in. (50 mm)
10mm strip width
PWM Dimming
Pigtail connection
24 VDC
UL Listed
5-year warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Displays
Stage & Theaters
Toe Kicks
Sign Lighting
Accent Lighting
Coves
Under-Cabinets
Trade Shows

Specifications

Ambient Operating Temperature	-20~+45 °C (-4~+113 °F)
Brightness	457 lm/ft (1500 lm/m)
CCT Value	2700-6500K
Certifications/Compliance	CE, UL Listed
Color Temperature Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.	Tunable CCT
CRI	90+
Current Draw Current Draw is used to size fuses and wire for an electrical circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	3.1 A
Current Draw per Foot Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).	191mA
Dimmable	Yes
Efficacy	100 lm/W
Environmental Rating Learn more about environmental rating	Non-weatherproof, Suitable for Dry Locations
Finish	White
IP Rating	IP20
LED Beam Angle Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.	160°
LED Density	195 LEDs/ft
LED Type	COB (chip-on-board)
LEDs per Segment	32
Length	16.4ft (5m)
Max Run (Class 2) The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.	Up to 19.7ft (6m)
Minimum Cut Length	50mm (1.97in)
Operating Voltage	24 VDC
Power Consumption	75 Watts
Rated Life (L70)	36000 Hours
Series	COB
Strip Width	10mm (0.39in)
Wattage per Foot	4.6 W/ft (15 W/m)
