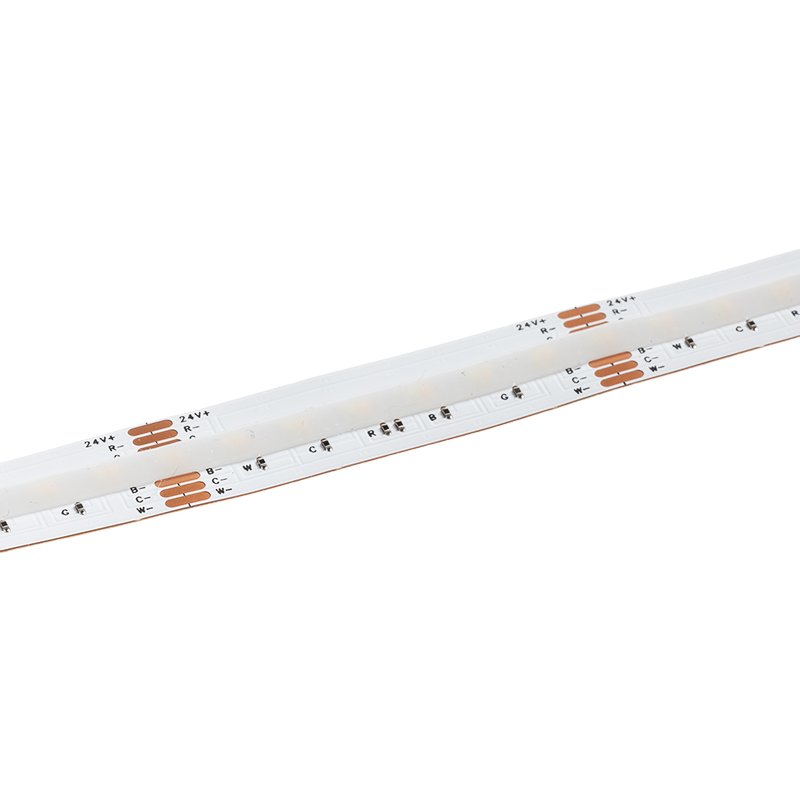

5m RGB+CCT COB LED Strip Light - COB Series LED Tape Light - IP20 - 24V

5m RGB+CCT COB LED Strip Light - COB Series LED Tape Light - IP20 - 24V

brand logo
Part Number
STN-F90-O35A-12Z5M-24V

Features

  • COB LEDs create seamless line of light - no visible hotspots
  • Flexible, cuttable, 3M™ adhesive-backed design for easy install
  • Smooth color blending and saturation of RGB and tunable whites: 2700K-6500K
  • High density design with 256 LEDs/ft (840 LEDs/m)
  • 0-100% PWM Dimmable
View more details
In Stock
$239.99 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Frequently Bought Together
Total Price: $289.98

Overview

The 5m RGB+CCT COB LED Strip Light uses chip-on-board technology to create a smooth, seamless line of light. Using a high density of LEDs, the COB strip light produces a continuous linear light without hotspots, ideal for applications on or around reflective surfaces such as granite countertops and tile floors. The strip provides a range of vibrant RGB and tunable white. Easily customize the strip using the cut segments every 1.64 inches. Flexible construction and 3M™ adhesive backing make it easy to install, including on round surfaces and edges. Pair with a controller (sold separately) to customize color tone and settings.
Product Details:
  • 3M™ adhesive backing for surface mounting
  • Max run: 16.4 ft (5 m)
  • Cuttable segment length: 1.64 in. (41.7 mm)
  • 12mm strip width
  • PWM Dimming
  • Pigtail connection
  • 24 VDC
  • UL Listed
  • 5-year warranty

Applications

  • Accent Lighting
  • Cove Lighting
  • Displays
  • Sign Lighting
  • Stage & Theaters
  • Toe Kick Lighting
  • Trade Shows
  • Under-Cabinets
UL Listed
UL Listed
CE
CE
5 Years
5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

Specifications

Ambient Operating Temperature -20~+45 °C (-4~+113 °F)
LED Beam Angle 160°
Color Temperature 2700K-6500K
Certifications/Compliance CE, UL Listed
CRI 90+
Current Draw 3.8 A
Current Draw per Foot 229mA
Minimum Cut Length 41.65mm (1.64in)
Dimmable Yes
Efficacy 87 lm/W
Environmental Rating Non-weatherproof, Suitable for Dry Locations
Finish White
Input Connection Type Pigtail
IP Rating IP20
LED Color RGB+Tunable White
LED Density 256 LEDs/ft
LED Lifetime 36000 Hours
LED Type COB (chip-on-board)
LEDs per Segment 35
Length 16.4ft (5m)
Brightness 477 lm/ft (1566 lm/m)
Max Run (Class 2) Up to 16.4ft (5m)
Operating Voltage 24 VDC
Power Consumption 90 Watts
Series COB
Strip Width 12mm (0.47in)
Wattage per Foot 5.5 W/ft (18 W/m)
Wire Gauge 22 AWG
