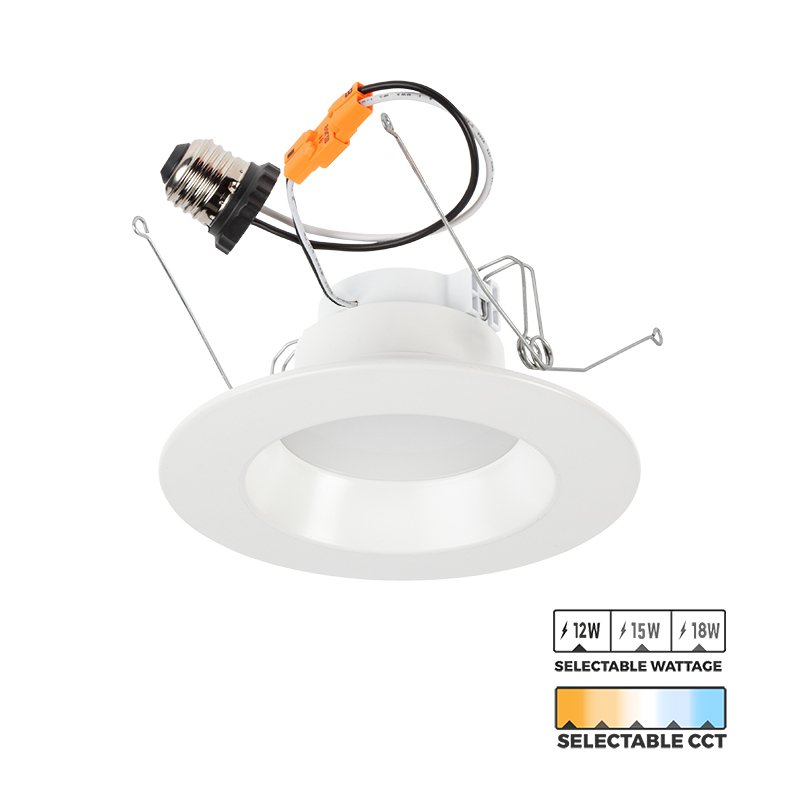

Name: 6" LED Recessed Retrofit Downlight - Selectable CCT and Wattage - Dimmable - Up To 1,260 Lumens
Brand: Super Bright LEDs
SKU: KOK-6HVCTLR05WH
Price: 12.99 USD
Availability: InStock

Overview

The 6" LED recessed retrofit downlight features selectable CCT, selectable wattage, and an included E26 adapter. During installation, use the switches on the downlight to select the desired CCT and wattage. The downlight can be used for new construction or remodel projects. The IP44 rating ensures the downlight can be used in damp areas such as bathrooms and kitchens. The versatile downlight produces exceptional color rendering and has TRIAC dimming adjustment. Ideal for residential and commercial applications in offices, dens, and bathrooms.

Product Details:

Selectable Wattage: 12W, 15W, and 18W
Selectable CCT: 2700K, 3000K, 3500K, 4000K, or 5000K
IP44 for damp areas
Spring clips keep fixture firmly in place
120 VAC
ETL Classified
California Title 24 Compliant
Energy Star
5-year warranty

The Environmental Protection Agency's (EPA) ENERGY STAR program was designed to set a standard for energy efficiency, to reduce pollutants and greenhouse gas, and to help consumers make educated product purchasing decisions. Products with an ENERGY STAR label are tested in EPA-recognized laboratories and meet ENERGY STAR product specification requirements. They are designed to reduce energy costs and serve their purpose without a lack of efficacy and features.

A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

This product meets California Energy Commission (CEC) Title 24 JA8 requirements and is registered in their Modernized Appliance Efficiency Database System (MAEDbS).

Applications

Basement Lighting
Kitchen Lighting
Retail Lighting
Residential Downlights
Commercial Downlights
Living Room Lighting
Offices
Dens
Bathroom Lighting

Specifications

Ambient Operating Temperature	-10~+40 °C (14~+104 °F)
Beam Angle	100°
Brand	Super Bright LEDs
Can Size	5 inch, 6 inch
CCT Value	2700K, 3000K, 3500K, 4000K, 5000K
Certifications/Compliance Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	CEC Title 24 JA8 Compliant, Energy Star, ETL Classified
CRI	90+
Current Draw	100 mA, 130 mA
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	TRIAC
Environmental Rating	Suitable for Wet Locations
Finish	White
Input Connection Type	E26 (Medium Base)
IP Rating	IP44
LED Color	Selectable CCT
Intensity	960 Lumen, 1125 Lumen, 1260 Lumen
Operating Voltage	120 VAC
Power Consumption	15 Watts
Power Factor	≥0.9
Rated Life (L70)	50000 Hours
Warranty	5 Year

Print Specifications

Accessories & Power Supplies

All Accessories

Dimmers

Wall Plates

Socket Adapters

Accessories Links

Accessory Category

Accessory Type:

$21.99 ea.

Single-Pole Switch and Slide LED Dimmer - 120V - White Part Number: DND-LED1-1-x
In stock

Use this white 120V TRIAC dimmer for dimmable LED bulbs and fixtures. It has a paddle switch for on/off functionality and a small slider for dimming. The single-pole dimmer can be used to control lights from one location. Use the integrated low-end trim adjustment dial to achieve your fixture or bulb's lowest light level without flickering. This 120V 60Hz LED dimmer has a 150-watt max for LEDs (150-watt max for CFL bulbs and 600-watt max for incandescent bulbs).
$22.99 ea.

3-Way Switch and Slide LED Dimmer - 120V Part Number: DND-LED3-1-x
In stock

Use this 120V TRIAC dimmer for dimmable LED bulbs and fixtures. It has a paddle switch for on/off functionality and a small slider for dimming. The 3-way dimmer can be used to control lights from 2 locations or can be used for single-pole installation. Use the integrated low-end trim adjustment dial to achieve your fixture or bulb's lowest light level with out flickering. This 120V 60Hz LED dimmer has a 150-watt max for LEDs (150-watt max for CFL bulbs and 600-watt max for incandescent bulbs).

$0.49 ea.

Dimmer Wall Plate for Standard Wall Switch Box Part Number: LVDx-WP
In stock

Use these wall plates for compatible switch, slide, or switch and slide low-voltage dimmers. They fit standard 1-gang switch boxes and are available in white, ivory, and almond colors.

$2.99 ea.

E26 / E27 Base to EX39 Base Socket Adapter Part Number: E27B-EX39
In stock

Adapt standard E26/E27 bases to EX39 using the socket adaptor. Shop now!
$2.49 ea.

Dual E26 / E27 Base to E27 Base Socket Adapter - E27 to E27 dual Part Number: E27B2-E27
In stock

Dual E27 adapter sockets let you install 2 medium E27/E26 bulbs in 1 socket. Adapter includes 2 joined E27 female sockets for your bulbs' male bases. Price per dual adapter.
$2.49 ea.

E26 / E27 Base to E14 Base Socket Adapter - E27 to E14 Part Number: E27B-E14
In stock

E26 / E27 base to E14 base socket adapter. Price for each.
$2.49 ea.

E26 / E27 Base to GU10 Base Socket Adapter - E27 to GU10 Part Number: E27B-GU10
In stock

E26 / E27 base to GU10 base socket adapter. Price for each.
$2.49 ea.

E26 / E27 Base to E17 Base Socket Adapter - E27 to E17 Part Number: E27B-E17
In stock

E26 / E27 base to E17 base socket adapter. Price for each.
