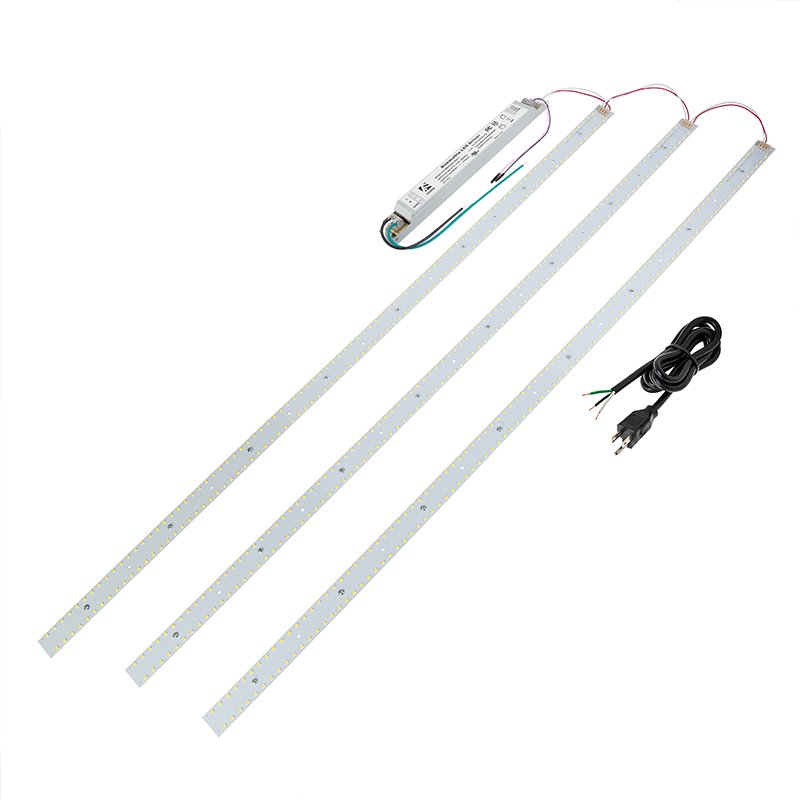

Name: 50W LED Magnetic Strip Kit - Three 4ft Pcs and LED Driver - Up To 6500 Lumens - Dimmable
Brand: Super Bright LEDs
SKU: MRKD-x24-50W-U
Price: 39.95 USD
Availability: InStock
Rating: 4.4 (15 reviews)

Overview

Description

This dimmable 4' 50W LED magnetic strip kit is versatile for many indoor lighting applications. Bright and powerful, the three strips emit up to 6500 lumens in warm, natural, or cool white. Evenly-spaced magnets allow for easy and secure mounting. The constant-current driver allows brightness control with a 0-10V dimmer. Remove the existing ballast and direct wire or plug the kit into standard 3-prong outlets with an optional grounded power cord. The pigtail wire is 18 AWG (driver input) with 20 AWG wire from the driver to the strips. This magnetic strip kit is perfect for workbenches, sign backlighting, basement lighting, garages, and more!

Product Details:

Aluminum housing
125-degree beam angle
IP20, suitable for damp locations
0-10V dimmable
Magnetic surface mount
100-277 VAC
Certified by UL
DLC 5.1 Standard
5-year warranty

The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here

This product has been certified by Underwriter Laboratories to their engineering and safety standards.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Drop Ceilings
Education
Healthcare
Hospitality
Linear Fluorescent Fixtures
Strip Fixtures
Suspended Grid Ceilings
Troffer Fixtures
Vapor Tight Fixtures
Wraparound Fixtures
Offices
Conference Rooms

Magnetic Troffer Retrofit Kits

	Mounting Option	CCT Value	Lumen	Comparable Wattage	Power Consumption	Price
MRKD-x14-30W-U	2 Strips	3000K, 4000K, 5000K	3200 Lumen, 3900 Lumen	2-lamp 28W T8 Tubes, 2-lamp 32W T8 Tubes	30 Watts	$29.95 - $37.90 ea.
MRKD-x22-40W-U	3 Strips	4000K, 5000K	5200 Lumen	3-lamp 17W T8 Tubes	40 Watts	$34.95 - $42.90 ea.

Specifications

Ambient Operating Temperature	-20~+40 °C (-4~+104 °F)
Beam Angle	125°
Certifications/Compliance Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	Certified by UL, DLC
CRI	80+
Current Draw	180 mA @ 277 VAC, 420 mA @ 120 VAC
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	0-10V
Environmental Rating	Non-weatherproof, Suitable for Damp Locations
Equivalency	3-lamp 32W T8 Tubes
Finish	White
Input Connection Type	Pigtail
IP Rating	IP20
Length	41.75in (3.48ft)
Linkable	No
Operating Voltage	100-277 VAC
Power Consumption	50 Watts
Power Factor	≥0.9
Product Materials	Aluminum, Neodymium Magnet
Rated Life (L70)	50000 Hours
Shipping Exclusions and Details Shipping exclusions apply to some products, making them ineligible for free shipping. Any order with a combined weight of over 150 pounds or containing an excluded item will be excluded from free shipping automatically. One or more exclusions may apply to the same product as well. Exclusions per item may include, but are not limited to, the following: • Any package with any two dimensions of the package over 30 inches. • Any package with a single side of the package over 42.3 inches. • Any package with a total combined length of the longest side added to 2 times the second and third longest sides over 130 inches. (L + 2H + 2W) • Any package with a weight over 50 pounds.	Excluded From Free Shipping
UL File Number	E348221, E366643
Warranty	5 Year

Print Specifications

Part NO	CCT Value CCT Value	Efficacy	Integrated Surge Protection	LED Color	Intensity	Wire Gauge
MRKD-30K24-50W-U	3000K	112 lm/W		Warm White	5600 Lumen
MRKD-30K24-50W-U(POWERCORD)	3000K	112 lm/W		Warm White	5600 Lumen
MRKD-40K24-50W-U	4000K	130 lm/W	1 kV (L-N), 2 kV (L/N-G)	Natural White	6500 Lumen
MRKD-40K24-50W-U(POWERCORD)	4000K	130 lm/W	1 kV (L-N), 2 kV (L/N-G)	Natural White	6500 Lumen	18 AWG
MRKD-50K24-50W-U	5000K	130 lm/W	1 kV (L-N), 2 kV (L/N-G)	Cool White	6500 Lumen	18 AWG
MRKD-50K24-50W-U(POWERCORD)	5000K	130 lm/W	1 kV (L-N), 2 kV (L/N-G)	Cool White	6500 Lumen	18 AWG
