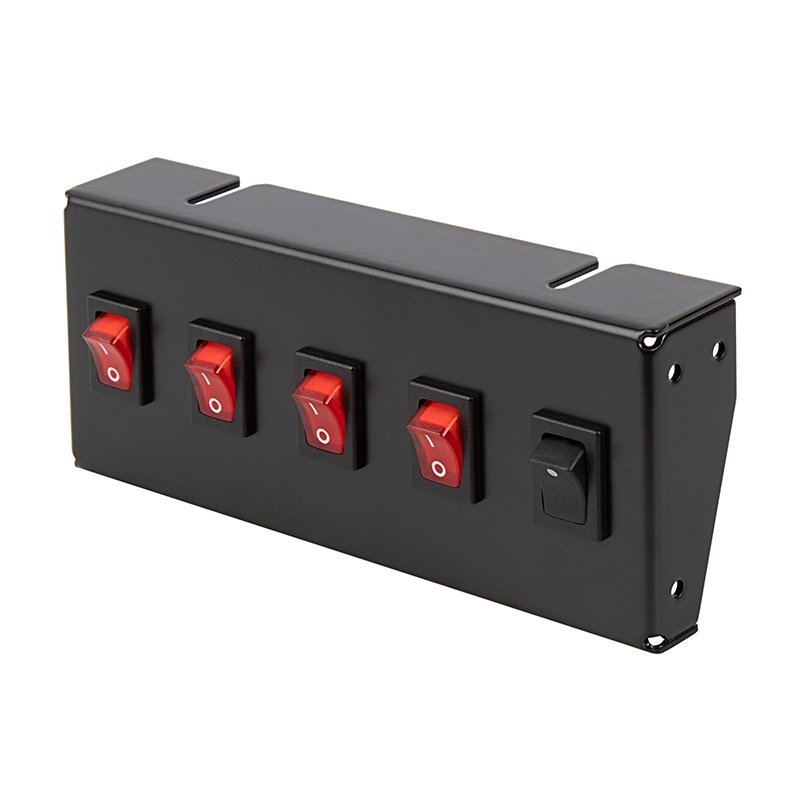

4-Position LED Rocker Switch Panel with Momentary Switch - DC Distribution Switch Panel - 12 VDC - 40 Amps

4-Position LED Rocker Switch Panel with Momentary Switch - DC Distribution Switch Panel - 12 VDC - 40 Amps - 4 Switch

Part Number
ASP-5M

Features

  • 4 Illuminated ON/OFF switches
  • 1 Momentary switch for changing strobe patterns
  • 12 VDC
  • 10 Amp max load/switch
View more details
Only 10 left
Backorder Available
$18.99 ea.
Add to Wish List Compare

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

main product photo
5 photos
Loading...

Overview

This rocker switch panel helps organize 12 VDC LED light switches or other low-voltage electrical application switches in your boat, truck, RV, UTV, ATV, or car. It's great for work lights, light bars, strobes, and more. The DC distribution panel has 4 red illuminated rocker switches and 1 momentary switch for changing strobe modes. Each switch is rated for 10 amps max per switch. The powder coated aluminum rocker switch can be used with negative- or positive-triggered lights. This rocker switch can also be purchased in a 1-position, or 3-position configuration.
2 Years
2 Years
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

  • Emergency Lighting Control
  • Off Road Lighting Control
  • Strobe
  • Work Lighting Control

Specifications

Amps 40 Amps
Voltage 12 VDC
Print Specifications

All specifications are subject to change without notice. All products are RoHS compliant.
