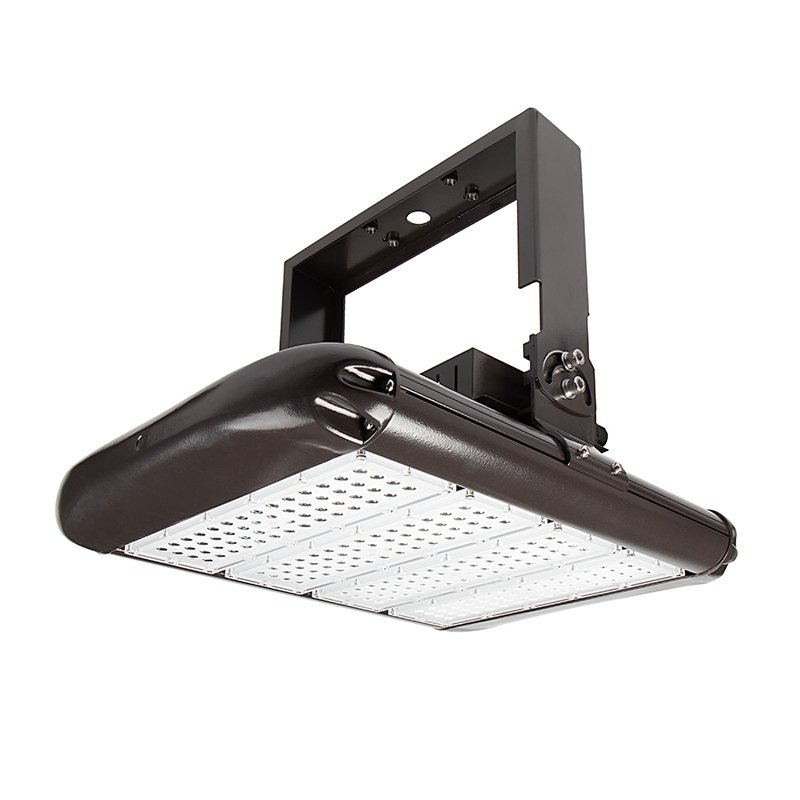

Name: 300W LED High Power Area Flood Light - 1000W Equivalent - 42,000 Lumens - Cool White
Brand: Super Bright LEDs
SKU: HPAL2-50K300-90
Price: 399.99 USD
Availability: InStock

Overview

The HPAL2 series 300W LED high-power area flood light delivers 42,000 lumens of 5000K white light for commercial and industrial applications. Precision optics produce a wide Type V flood beam distribution for broad illumination. Independent modular LED engines and drivers protect lifespan with improved thermal management. Replace metal halide or HID luminaires with increased energy savings, better efficacy, and more compact housing. The included yoke mount accommodates high bay and floodlight applications. Several other optional mounting options are available.

Product Details:

Aluminum housing
Impact-resistant polycarbonate lens
IP66 rated
90° beam angle - Type V
Includes steel yoke bracket and driver cover
6 kV (L-N),10 kV (L/N-GND) integrated surge protection
IK10 impact resistance
70+ CRI
5000K
100-277 VAC
DLC 5.1 Premium, ETL Listed
5-year warranty

A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.

This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Area/Site Lighting
Building Exteriors
Sports Complexes
Warehouses
Parking Lots
Streets
Stadiums
Car Dealerships
Arenas

Specifications

Beam Angle	90°
Brand	Super Bright LEDs
Comparable Wattage	1000 Watt Metal-Halide
CRI	70+
Current Draw	1.1 A @ 277 VAC, 2.5 A @ 120 VAC
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	1-10V
Efficacy	140 lm/W
Environmental Rating	Suitable for Wet Locations, Waterproof
Finish	Bronze
Impact Resistance	IK10
IP Rating	IP66
LED Color	Cool 5000K
LED Lifetime	100000 Hours
Light Distribution	Type V
Lumen	42000 Lumen
Material	Aluminum Housing, Polycarbonate Lens, Steel Bracket, Steel Driver Compartment
Mount Type	Yoke Bracket
Operating Temperature	-30~+45 °C (-22~+113 °F)
Photocell Options	No Photocell
Power Consumption	300 Watts
Power Factor	≥0.9
Product Weight	22lb 1oz (10.01kg)
Standards And Certifications Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	DLC Premium, ETL Listed
Voltage	100-277 VAC
