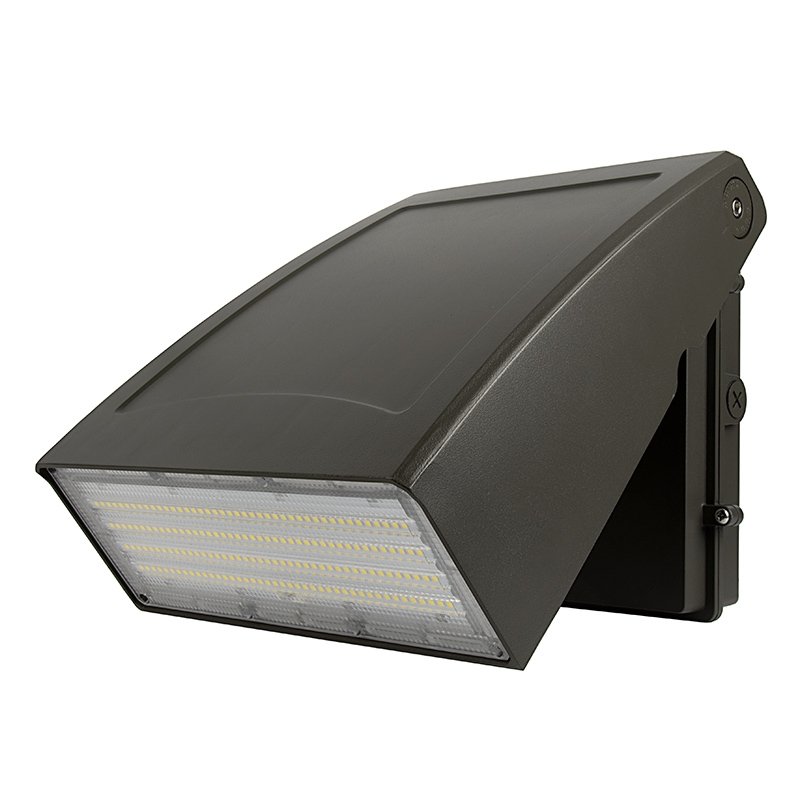

Name: 120W Adjustable Full Cutoff LED Wall Pack - 15600 Lumens - 400W MH Equivalent - 5000K/3000K
Brand: Super Bright LEDs
SKU: WPA-xK120-W
Price: 142.99 USD
Availability: InStock
Rating: 4.4 (5 reviews)

Overview

Description

Lasting far longer than metal halide equivalents with better architectural design and directional output, WPA series 120W Wall Pack is a compact lighting solution. Versatile angle positioning and full cutoff form distributes beams precisely, without waste. This slim LED fixture can be aimed after installation-- closer for perimeter visibility, or directly forward for a flood light application. with powder coating and integrated heat sinks, aluminum housing will run cool through all weather conditions. Hinged door and conduit entry allows easy mounting.

For campuses, schools, or business parks that have a variety of lighting needs, see the rest of the WPA series to tailor illumination to each unique space while maintaining a consistent look throughout. The complete line has positioning versatility and a lumen range of 1,500 to 15,000 to fit both small stairways and large lots, to accentuate features or improve safety.

Product Details:

Conduit entry points allow direct wall or junction box mounting
Compatible with photocell for dusk to dawn operation - sold separately
Available in 3000K or 5000K
50000 hours L70 lifespan
IP65 rated for wet conditions
UL Listed
5 year warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Architectural Lighting
Security Lighting
Tree Uplighting
Wall Washing
Commercial Entryways
Commercial And Industrial Exterior
Commercial Complexes
Parking Garages
Industrial Facilities
Commercial Lighting

Specifications

Ambient Operating Temperature	-40~+50 °C (-40~+122 °F)
Beam Angle	100° x 75°
Brand	Super Bright LEDs
CCT Value	3000K
Certifications/Compliance Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	UL Listed
CRI	70+
Current Draw	1.1 A
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	0-10V
Distribution Type	NEMA 6x5
Efficacy	130 lm/W
Environmental Rating	Suitable for Wet Locations, Waterproof
Equivalency	400 Watt Metal-Halide
Finish	Bronze
Input Connection Type	Pigtail
IP Rating	IP65
LED Color	Warm White
Lens Type	Polycarbonate
Intensity	15600 Lumens
Operating Voltage	120-277 VAC
Photocell What is a Photocell and How Does It Work? When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically. Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed? Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type. Shorting Cap Photocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized. DIP Switch or Slide Switch While DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts. Disconnect the Wiring Some photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch.	No Photocell
Power Consumption	120 Watts
Product Materials	Aluminum Housing, Polycarbonate Lens
Product Weight	7lb 0oz (3.18kg)
Rated Life (L70)	50000 Hours
UL File Number	E366643
Warranty	5 Year
