MLD-5A 12 Volt DC Single Color LED Mini Dimmer with Dynamic Modes

Part Number: MLD-5A | UPC: 84778102573
Stock: In Stock
Items have been added to cart!
50 to 99 pieces$6.26 each100 to 499 pieces$5.56 each500 to 999 pieces$5.21 each1000 to + pieces$4.87 each
Ships today if ordered before 1:00 PM CDT, 5 hours and 30 minutes remaining
Product Description
Universal single color mini LED dimmer can dim any 12VDC LED products from 10%-100% using Pulse Width Modulation (PWM) circuit push button control from stepped intensity adjustment. 5 dynamic flashing modes with adjustable speeds. Maximum load is 5 Amps - holding Speed/Bright button turns LEDs ON/OFF. Attached 4" power input and controller output wire leads. Suitable for vehicles
Standards and Certifications
CEFCCROHS Compliant2 Warranty

MLD-5A Mini LED Dimmer with Dynamic Modes

SPECIFICATIONS

Single Color Mini LED Dimmer with Dynamic Flashing Modes

    Universal single color LED dimmer can dim any 12VDC LED products from 10% to 100% using Pulse Width Modulation (PWM) circuit. On board push button control for intensity adjustment range and dynamic mode selection. Maximum Load is 5 Amps, has attached 4" power input and controller output wire leads.

Directions: Press "Light" button to activate static mode. Press "Speed/Bright" button to incrementally dim 8 steps and return to full brightness. "Mode" button enters dynamic flashing patterns. Press "Mode" to cycle through the 5 different patterns. Pressing "Speed/Bright" button will incremently decrease speed 6 steps and return to fastest speed. Hold Speed/Bright button turns LEDs ON/OFF

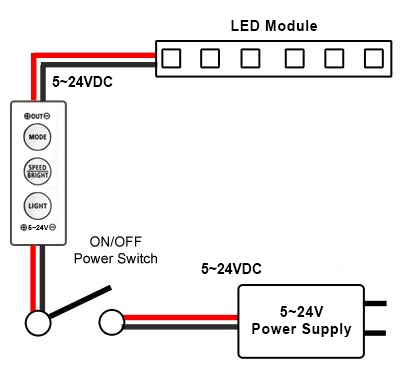

Dimmer Unit Diagram



Specifications:
Supply Voltage: DC 12V Product size: (L)40 x (W)13 x (H)5 mm
Max load current: 5Amps Net Weight: 30g
Output 1 channel Working temperature: -20~60°C
Static power consumption: < 1 Watt
Output Power: 60 Watts
Function: Dim LED product from 10~100% using PWM with CPS series Power Supplies


Dynamic Modes:
1. Fast Strobe 5. Short Blink
2. Slow Blink 6. Random Fade
3. Fast Blink 7. Slow Fade
4. 3 Slow & 3 Fast Blinks 8. Quick Fade
