See All PhotosAqua 3mm LED
Part Number: RL3-A4018 | UPC: 84778101240 | Stock: In Stock
$0.67 ea.
10 to 99 pieces$0.60 each100 to 499 pieces$0.54 each500 to 999 pieces$0.50 each1000 to 4999 pieces$0.47 each5000 to 9999 pieces$0.40 each10000 to + pieces$0.37 each
Order will ship Friday (05/24/2013)
Related Links
IMPORTANT NOTES. PLEASE READ BEFORE PURCHASING:- Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. These products cannot be returned after the package has been opened.
| Product Description |
|---|
| RL3-A4018 3mm through hole Aqua LED. 505nm wavelength Aqua LED, 4,000mcd. with 18 degree viewing angle. See spectral graph for wavelength measurement. |
| General Specifications | |||
|---|---|---|---|
| Color | Cyan (Aqua) | Continuous Forward Current | 20 |
| Forward Voltage | 3.6V | LED Package | 3 mm (T-1) |
| Lens Color | Clear | Lumen | 0.3 Lumen |
| Maximum Forward Voltage | 4V | Millicandela | 4000mcd |
| Operating Temperature | -40~+85 °C | Peak Forward Current | 50mA |
| Power Dissapation | 100mW | Reverse Voltage | 5V |
| Storage Temperature | -40~+85 °C | Total Power Consumption | 0.072 Watts |
| Tube Diameter | T-1 | Viewing Angle | 18 degree |
| Wavelength | 505 nm | ||
| Part Number: RL3-A4018 - Super-Aqua LED (GaInN/GaN), Chip Manufacturer: TEKCORE |
||||||||
|---|---|---|---|---|---|---|---|---|
| absolute maximum ratings: (TA=25°C) | ||||||||
| PARAMETER | SYMBOL | RATING | UNIT | |||||
| Power Dissipation | PD | 100 | mW | |||||
| Continuous Forward Current | IF | 20 | mA | |||||
| Peak Forward Current (1/10th duty cycle, 0.1ms pulse width) | IFM | 50 | mA | |||||
| Reverse Voltage | VR | 5.0 | V | |||||
| Operating Temperature | TA | -40~+85 | °C | |||||
| Storage Temperature | TSTG | -40~+85 | °C | |||||
| Reverse Current (VR=5V) | IR | 10 | µa | |||||
| Lead Soldering Temperature (3mm from body) 260C (for 3 seconds) | ||||||||

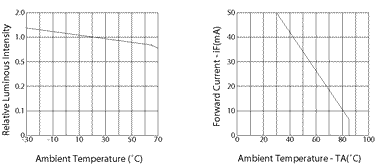

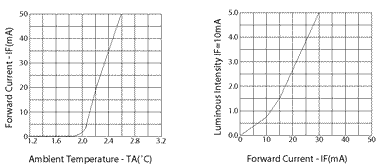

| optoelectric characteristics: | ||||||||
| PARAMETER | SYMBOL | MAX | TYP | UNIT | TEST | |||
| View Angle of Half Power | 2ø1/2 | 18 | Degree | |||||
| Forward Voltage | VF | 4.0 | 3.6 | V | IF=20mA | |||
| Peak Emission Wavelength | ÿ P | 505 | nm | |||||
| Luminous Intensity | IV | 4000 | mcd | IF=20mA | ||||
Dimensions in millimeters (inches) |
  |
